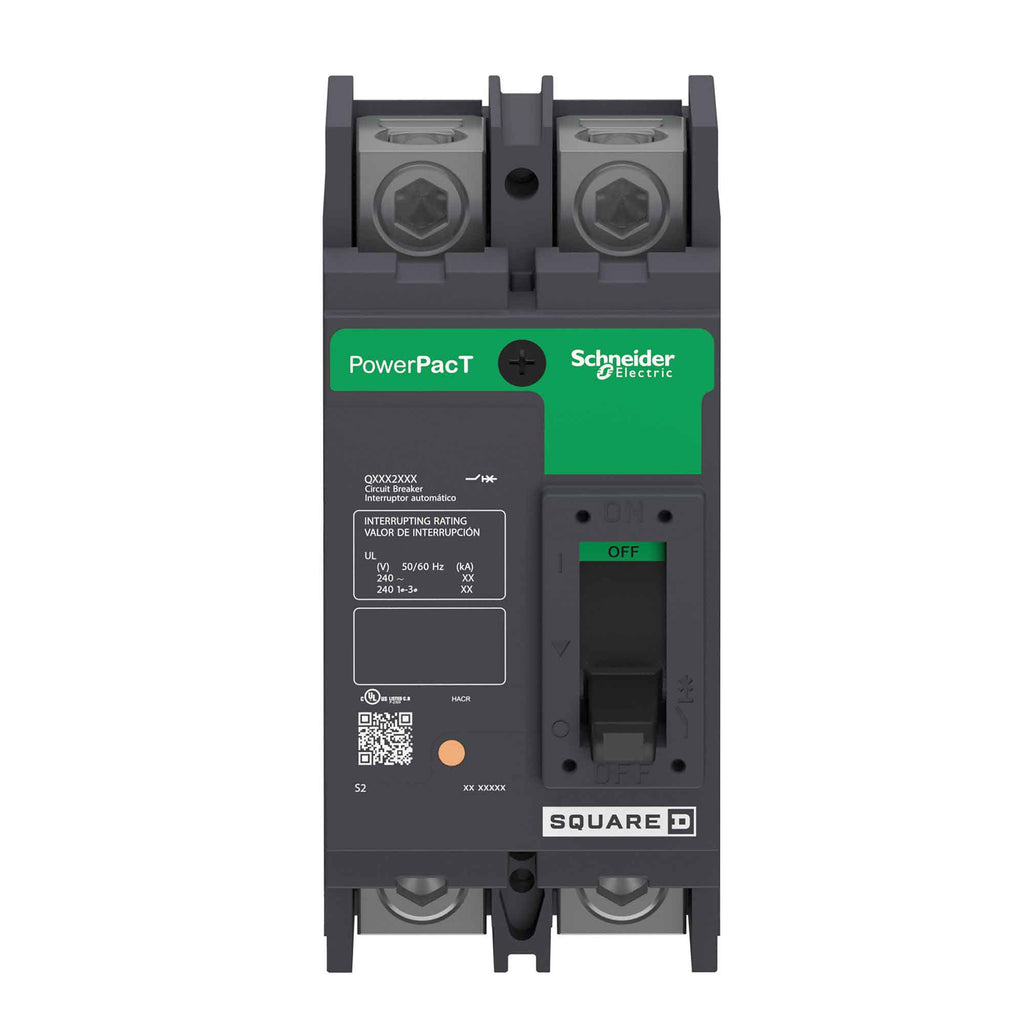

QBP22175TM - Square D 175 Amp 2-Pole 240V Circuit Breaker PowerPact Q Frame

QBP22175TM

QBP22175TM is a Square D PowerPact Q molded case circuit breaker rated for 175 amps, 2 poles, and 240 volts AC.This circuit breaker features a thermal-magnetic trip unit with a 10 kA interrupt rating at 240 VAC. It is designed for unit mount installation with lugs on the load end and stud with nut and washer on the line end. The breaker is UL and CSA listed, suitable for overcurrent protection and switching in AC systems, and part of the Q frame series.

• Amperage: 175 A
• Voltage: 240 VAC
• Poles: 2
• Interrupt Rating: 10 kA at 240 V AC
• Frame Type: PowerPact Q
• Mounting Type: Unit Mount
• Trip Unit: Thermal-Magnetic
• Certifications: UL Listed, CSA Certified
• Magnetic Trip Current: 2400 A
• Continuous Current Rating: 80%
• Load End Lug, Line End Stud with Nut and Washer

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBP22175TM
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Meter-Pak
• Type : QBP
• Voltage : 240
• Amperage : 175
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901689850
• GTIN : 00785901689850
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.34
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
