QBP22150TM - Square D PowerPact Q 150 Amp 2 Pole 240VAC 10kAIC Molded Case Circuit Breaker, Bolt-On, Thermal Magnetic Trip, UL/CSA/NEMA/NOM

QBP22150TM

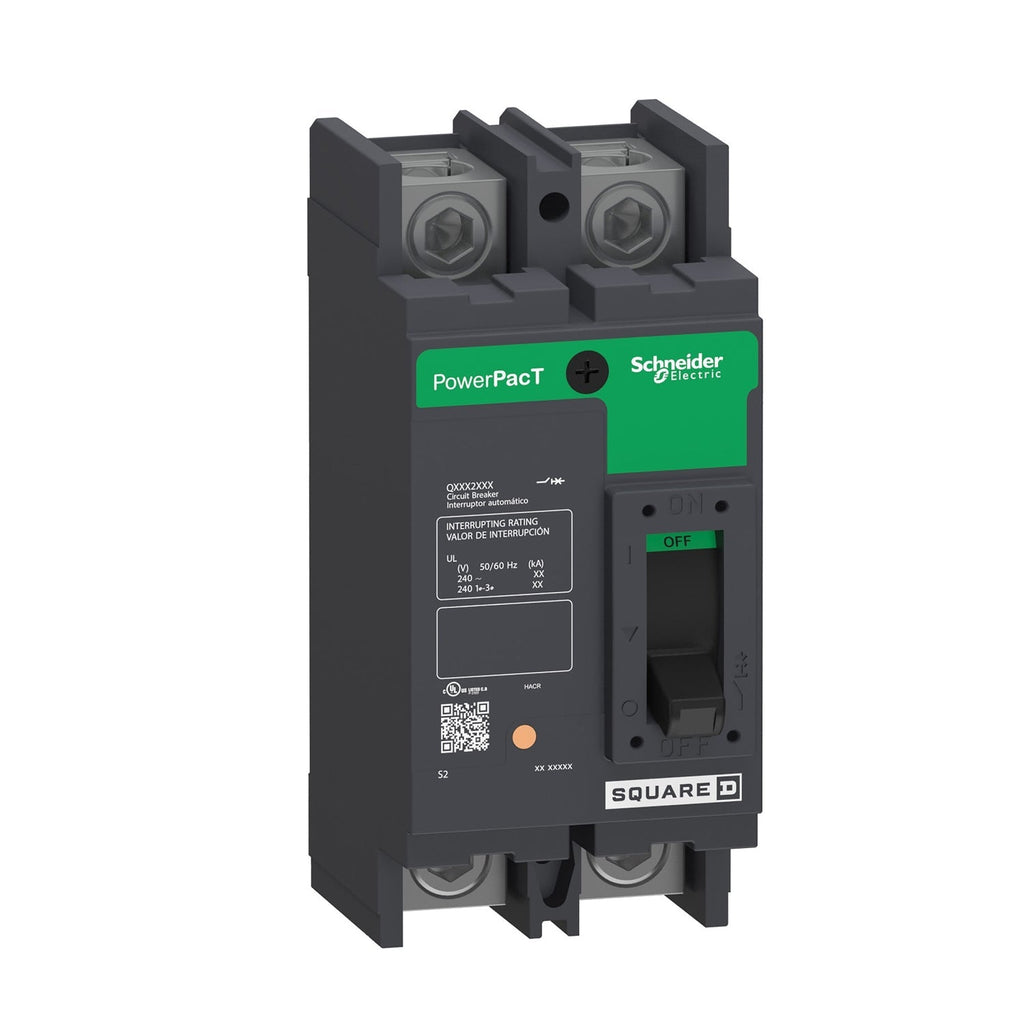

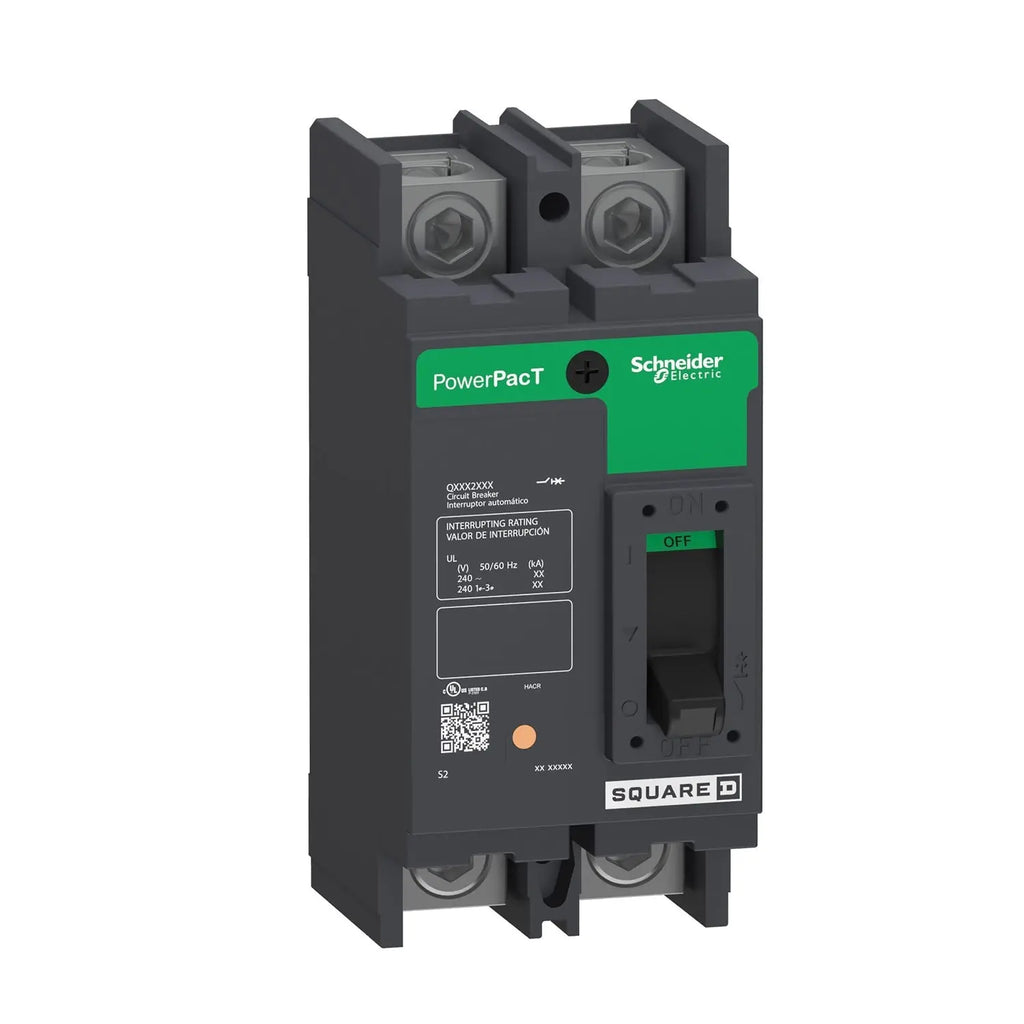

QBP22150TM is a Square D PowerPact Q series molded case circuit breaker designed for reliable protection in commercial and industrial applications.

This 2-pole, 150 Amp breaker features a thermal-magnetic trip unit, bolt-on mounting, and an interrupting rating of 10kAIC at 240VAC. It is suitable for panel mounting, offers both long-time and instantaneous trip functions, and is certified to UL, CSA, NEMA, and NOM standards for safety and compliance.

Key Specifications
• Part Number: QBP22150TM
• Manufacturer: Square D
• Series/Frame: PowerPact Q (QBP)
• Amperage: 150A
• Voltage: 240VAC
• Poles: 2
• Mounting Type: Bolt-On (Unit Mount)
• Interrupt Rating: 10kAIC at 240VAC
• Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
• Connection: Load side lug, stud with nut and washer
• Certifications: UL, CSA, NEMA, NOM, HACR
• Temperature Rating: 40 to 70 °C
• Standards: Meets California Proposition 65

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBP22150TM
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Meter-Pak
• Type : QBP
• Voltage : 240
• Amperage : 150
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug, Terminal Nut
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901672463
• GTIN : 00785901672463
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.24
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
