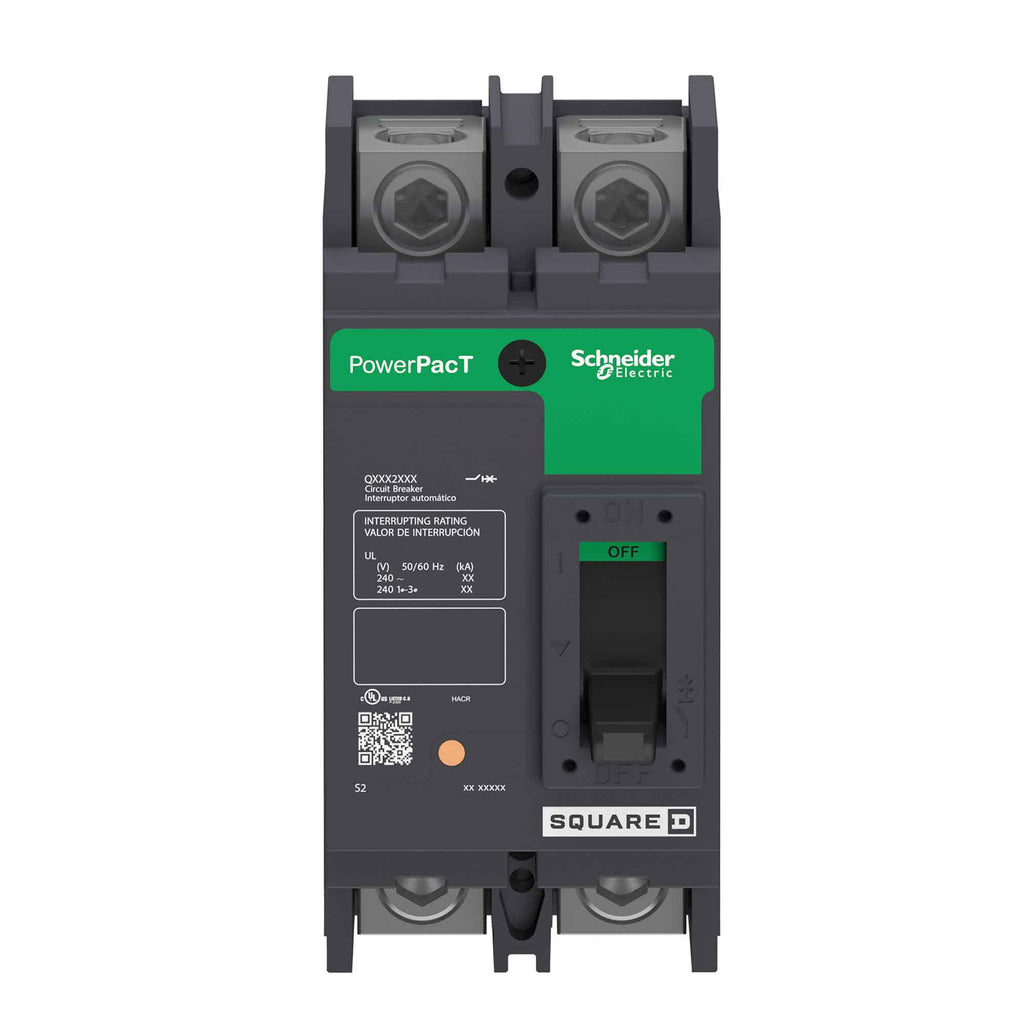

QBP22100TM - Square D 100A 240V 2-Pole Molded Case Circuit Breaker PowerPact Q Frame

QBP22100TM

QBP22100TM is a Square D 2-pole molded case circuit breaker rated for 100 amps and 240 volts, designed for reliable circuit protection.This PowerPact Q frame circuit breaker features a thermal-magnetic trip unit, bolt-on mounting, and a 10kA interrupt rating at 240 VAC. It supports single-phase applications with lug terminals on one end and stud terminals on the other, suitable for aluminum or copper wiring. The breaker is UL listed and designed for industrial and commercial electrical distribution systems.

Key Specifications
• Amperage: 100A
• Voltage: 240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA at 240 VAC
• Series/Frame: PowerPact Q
• Trip Unit: Thermal-Magnetic
• Terminal Type: Lug (line end), Stud (load end)
• Phase: Single-phase
• Wire Compatibility: Aluminum and Copper
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBP22100TM
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Meter-Pak
• Type : QBP
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901662716
• GTIN : 00785901662716
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.26
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
