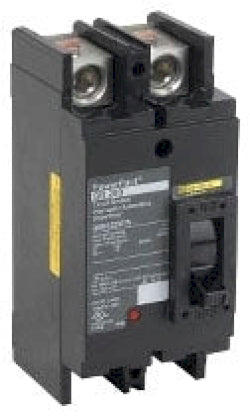

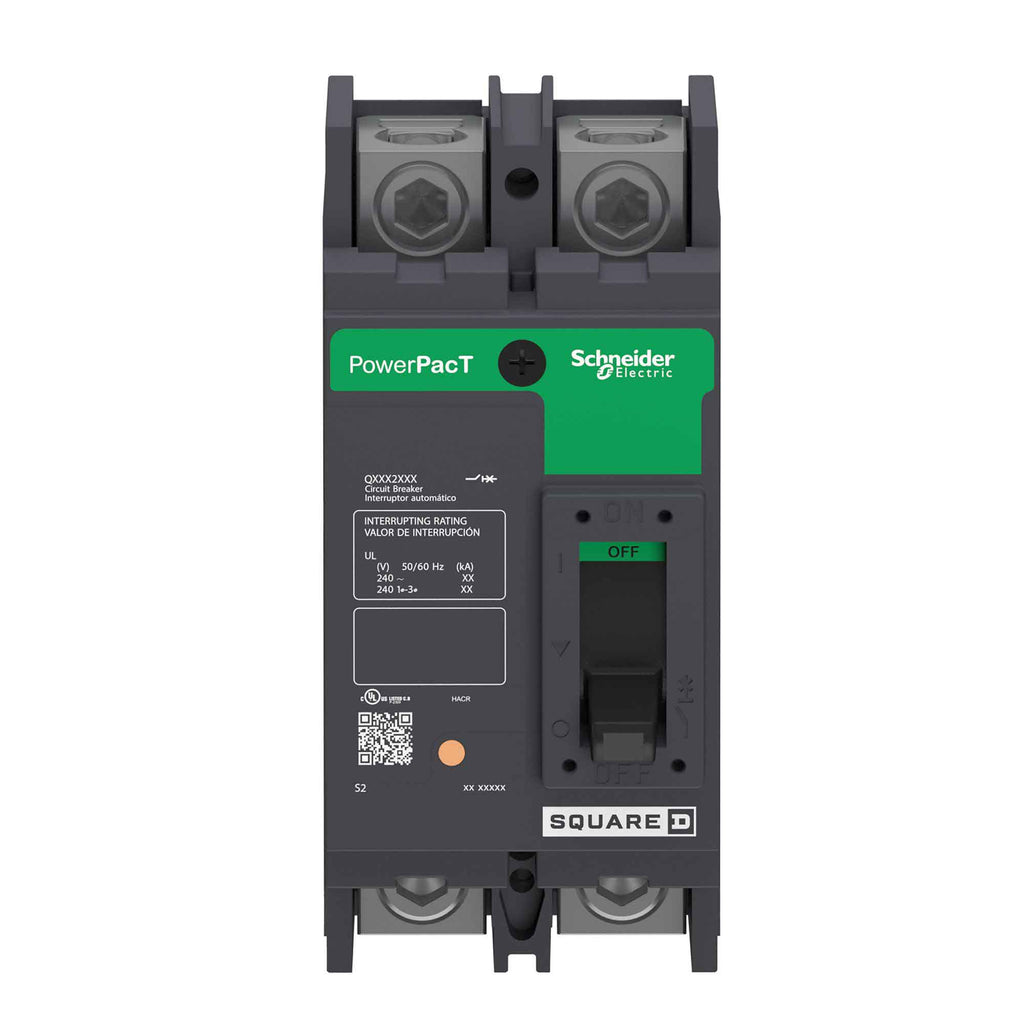

QBM22200TN - Square D 200A 240V 2-Pole Molded Case Circuit Breaker, Q-Frame, Thermal Magnetic Trip, 10kA Interrupt

QBM22200TN

QBM22200TN is a 200A, 240V, 2-pole molded case circuit breaker from Square D, designed for reliable protection in commercial and industrial applications. This Q-Frame breaker features thermal magnetic trip technology and a 10kA interrupt rating for robust performance. Engineered for use in panelboards and switchboards, the QBM22200TN offers flexible installation with unit mount compatibility. Its compact design and durable construction make it ideal for high-demand environments, ensuring long service life and dependable circuit protection.

• Part Number: QBM22200TN
• Manufacturer: Square D
• Amperage: 200A
• Voltage: 240V AC
• Poles: 2
• Mounting Type: Unit Mount
• Interrupt Rating: 10kA @ 240V
• Series/Frame: Q-Frame
• Tripping Mechanism: Thermal Magnetic
• Type: Molded Case Circuit Breaker
• Standards: UL Listed, CSA Certified
• Application: Panelboard/Switchboard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBM22200TN
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QBM
• Voltage : 240
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901662631
• GTIN : 00785901662631
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.371
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
• Wire Size : AWG 4...300 kcmil aluminium/copper
