Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
QBM22225

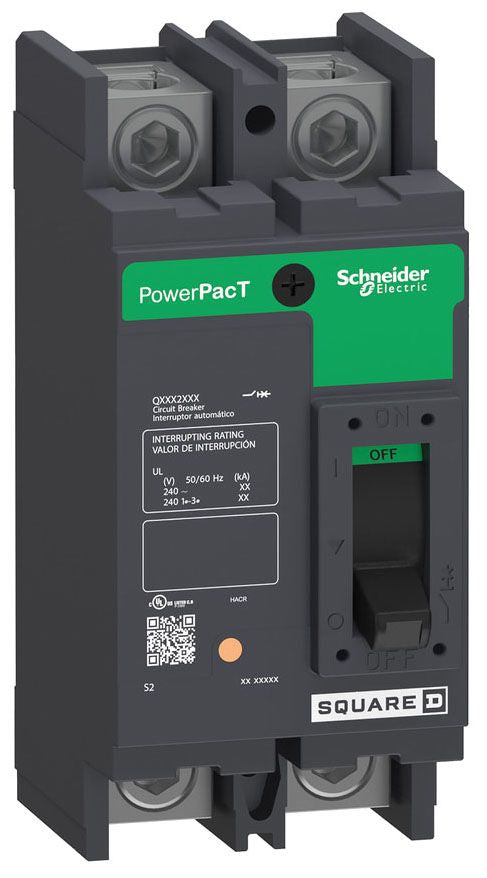

QBM22225 is a Square D 2-pole, 225 amp, 240 volt molded case circuit breaker designed for reliable protection in commercial and industrial applications. This Q-Frame breaker features a thermal-magnetic trip unit and is rated for a 10kA interrupting capacity at 240V, making it suitable for a wide range of electrical systems. The QBM22225 is a unit-mounted breaker with feed-thru connections, providing secure and efficient installation. It is UL 489 listed and offers long-time and instantaneous (LI) protection for enhanced safety and performance.
- Part Number: QBM22225
- Manufacturer: Square D
- Series/Frame: Q-Frame
- Poles: 2
- Amperage: 225A
- Voltage: 240V
- Mounting Type: Unit Mount
- Interrupt Rating: 10kA @ 240V
- Connection Type: Feed-Thru
- Trip Unit: Thermal-Magnetic
- Protection Type: LI (Long-Time and Instantaneous)
- Certification: UL 489 Listed
Specifications
- Part Number: QBM22225
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : QBM
- Voltage : 240
- Amperage : 225
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : Q Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 4
