Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QBM22175TN

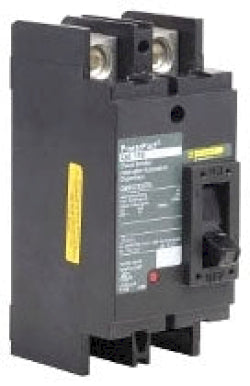

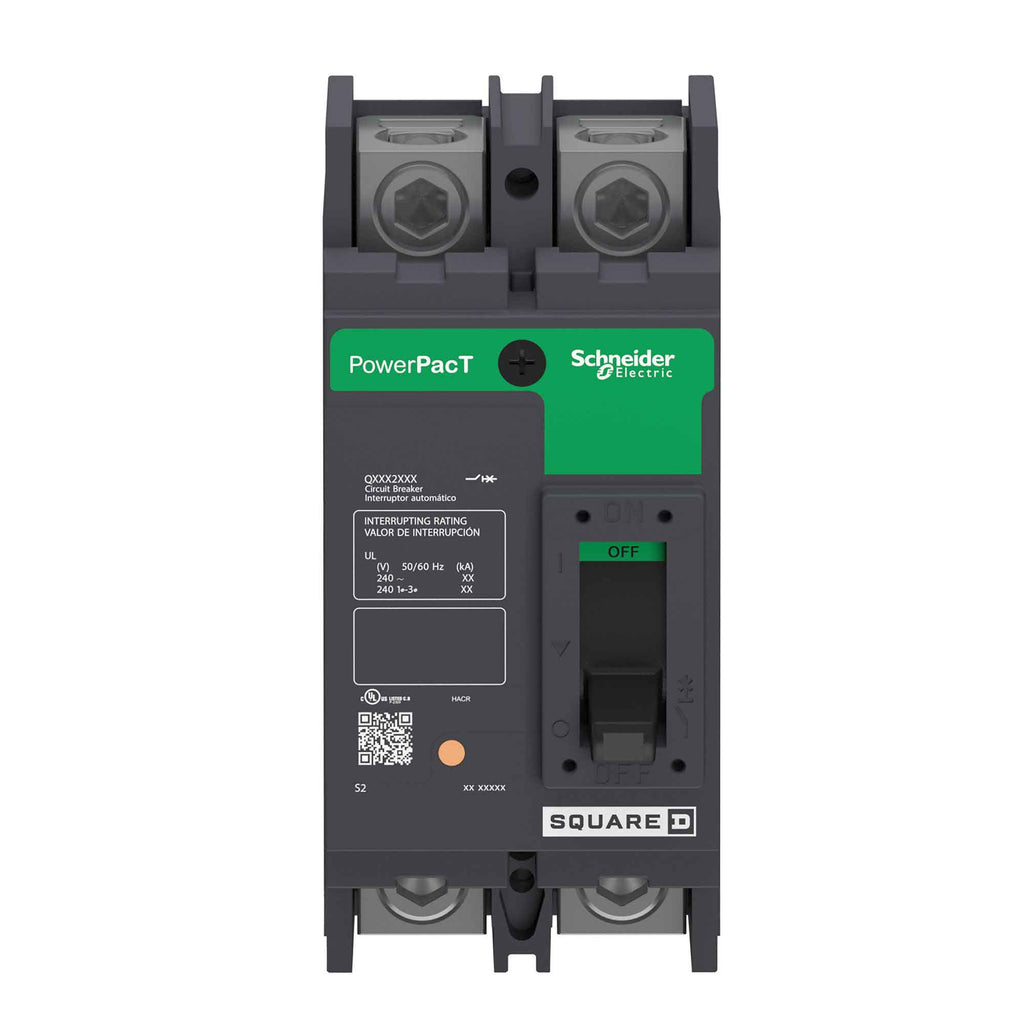

QBM22175TN is a 2 pole, 175A, 240VAC molded case circuit breaker from the Square D Powerpact series, designed for reliable thermal-magnetic protection in commercial and industrial applications. This Square D QBM22175TN breaker features a bolt-on mounting design, 10kA interrupt rating at 240VAC, and is part of the Powerpact family for dependable performance. The breaker is rated for continuous operation at 80% load and is suitable for use in a variety of panelboard installations.
- Part Number: QBM22175TN
- Manufacturer: Square D
- Series: Powerpact
- Poles: 2
- Amperage: 175A
- Voltage: 240VAC
- Mounting Type: Bolt-On
- Interrupt Rating: 10kA @ 240VAC
- Frame: QBM
- Trip Unit: Thermal-Magnetic
- Continuous Current Rating: 80%
- Phase: 1
Specifications
- Part Number: QBM22175TN
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : QBM
- Voltage : 240
- Amperage : 175
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long Time and Instantaneous
- Frame Size : Q Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 785901565536
- GTIN : 00785901565536
- Country of Origin : Mexico
- Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
- Weight : 3.274
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
- Certification : UL, CSA, NOM
