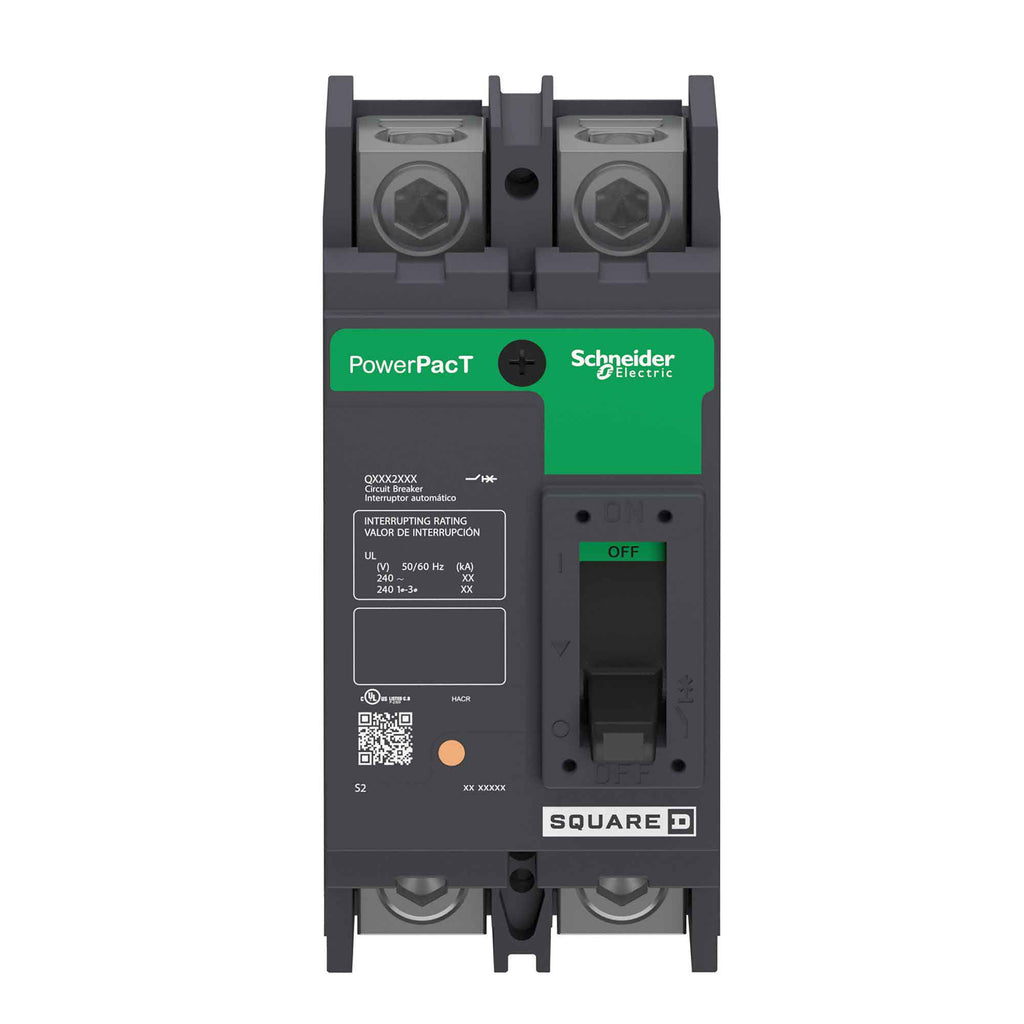

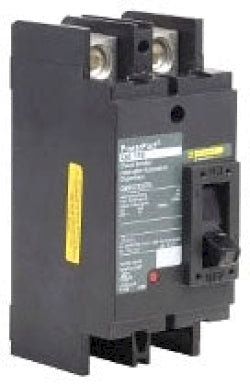

QBM22150TN - Square D 150A 240V 2-Pole PowerPact Q Molded Case Circuit Breaker

QBM22150TN

QBM22150TN is a Square D PowerPact Q molded case circuit breaker rated for 150 amps, 240 volts, and 2 poles.This thermal-magnetic trip unit breaker features a 10 kA interrupt rating at 240 V AC, unit mount construction, and complies with UL, CSA, and IEC certifications. It has a continuous current rating of 80%, magnetic hold current of 1200 A, and magnetic tripping current of 2400 A. The breaker dimensions are 6.47 in height, 4.5 in width, and 3.93 in depth, with lug connections supporting AWG 4 to 300 kcmil aluminum or copper conductors.

Key Specifications
• Amperage: 150 A
• Voltage: 240 V AC
• Number of Poles: 2
• Interrupt Rating: 10 kA at 240 V AC
• Trip Unit: Thermal-magnetic
• Mounting Type: Unit mount
• Frame/Series: PowerPact Q
• Certifications: UL Listed, CSA, IEC
• Continuous Current Rating: 80%
• Magnetic Hold Current: 1200 A
• Magnetic Tripping Current: 2400 A
• Dimensions (H x W x D): 6.47 x 4.5 x 3.93 inches
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: QBM22150TN
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QBM
• Voltage : 240
• Amperage : 150
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug, Terminal Nut
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 785901417873
• GTIN : 00785901417873
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.274
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
• Wire Size : AWG 4 to 300 KCmil Aluminum/Copper
