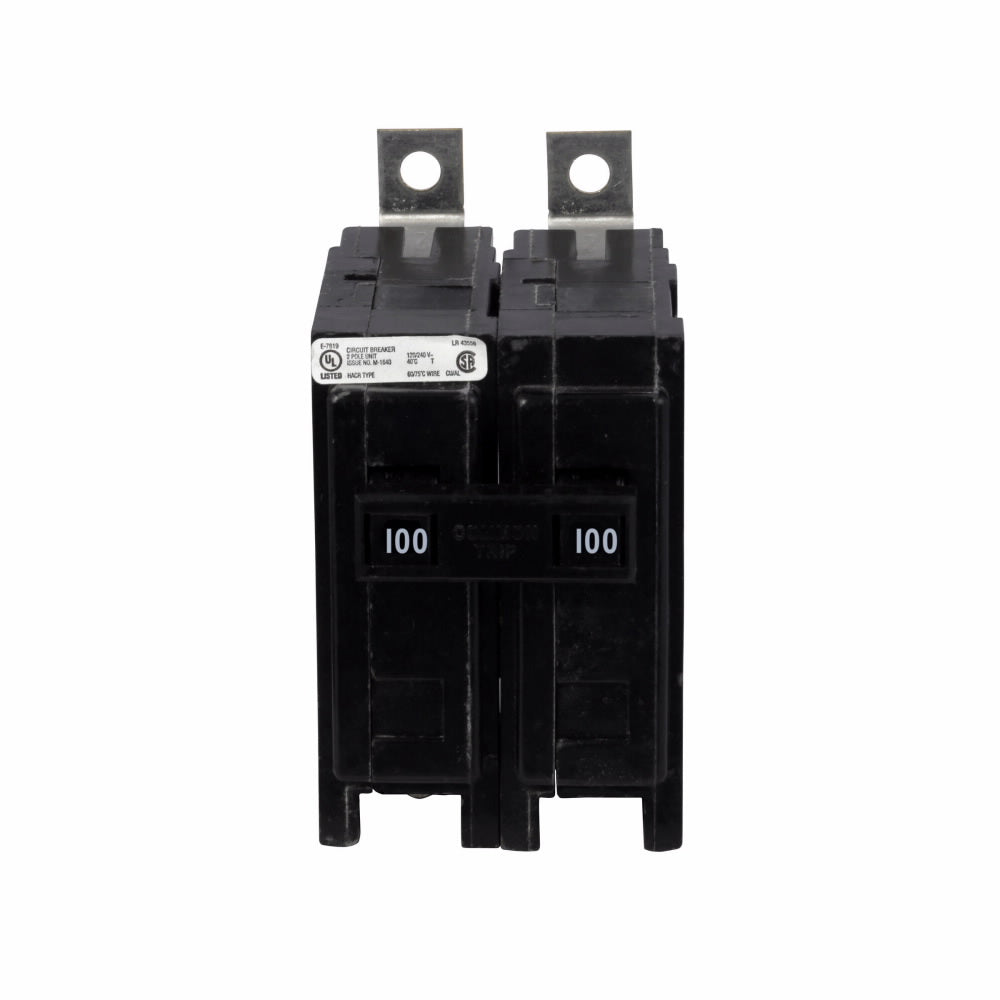

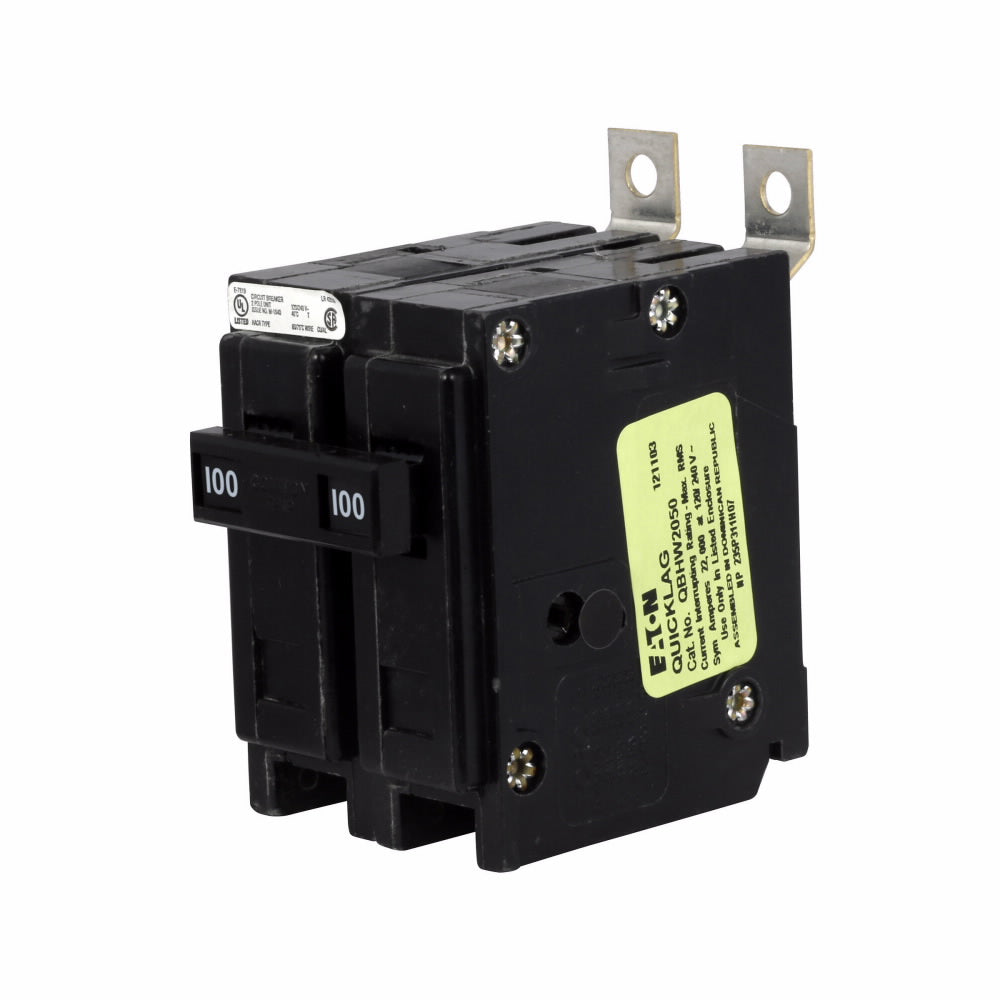

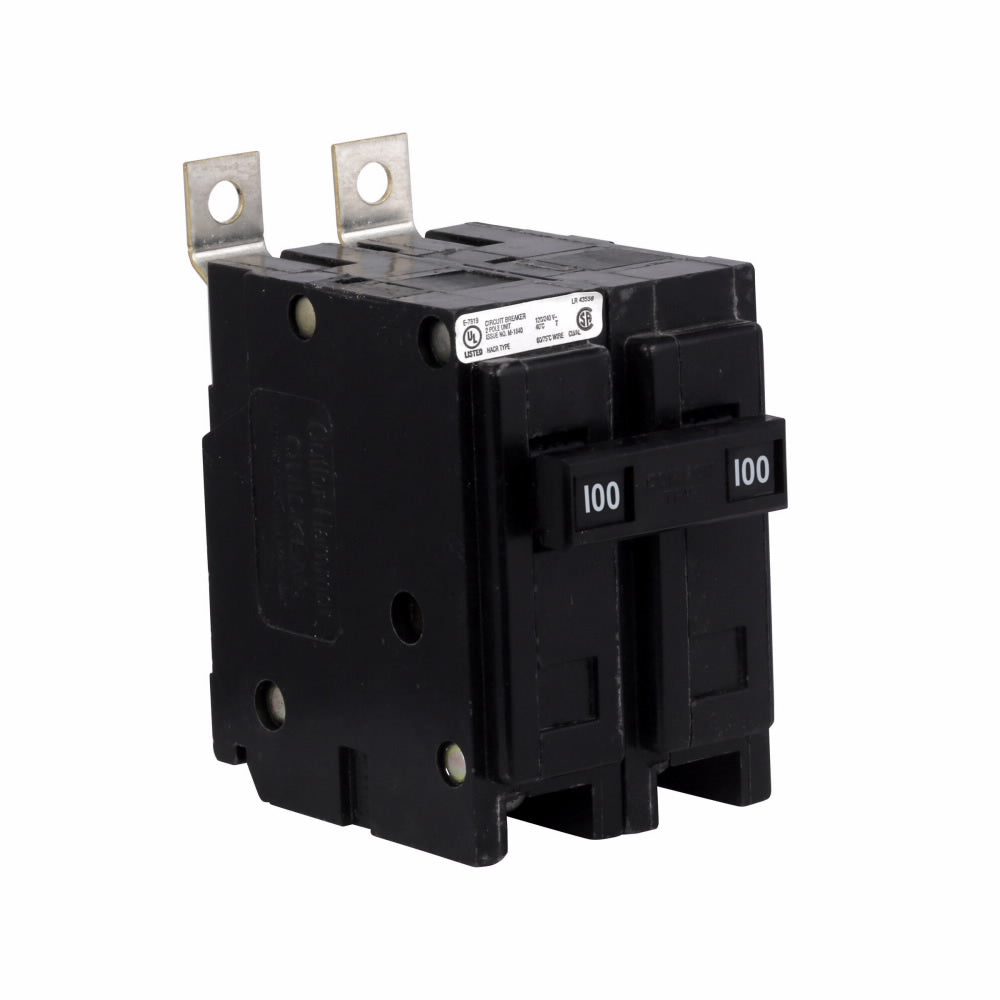

QBHW2100S - Cutler Hammer 100A 240V 2 Pole Bolt-On Circuit Breaker 22kAIC Shunt Trip

QBHW2100S

QBHW2100S is a Cutler Hammer 2 pole, 100 amp, 240 volt bolt-on circuit breaker with a 22kA interrupt rating and shunt trip feature.This Quicklag industrial thermal-magnetic circuit breaker is designed for reliable protection in electrical distribution systems. It features a bolt-on mounting type, 2 poles, and a 22,000 amp interrupting capacity at 240 volts. The breaker is UL listed, CSA certified, and HACR rated, ensuring compliance with industry safety standards.

• Amperage: 100 A
• Voltage: 120/240 V AC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 22 kAIC @ 240 V
• Trip Unit: Thermal Magnetic with Shunt Trip
• Series/Frame: Quicklag QBHW
• Certifications: UL Listed, CSA Certified, HACR Rated
• Type: Industrial Miniature Circuit Breaker
• Non-Interchangeable

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBHW2100S
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Quicklag
• Type : QBHW
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 786679852811
• GTIN : 00786679852811
• Country of Origin : Dominican Republic
• Dimensions : 3 in x 3 in x 3.2 in (Length/Depth x Height x Width)
• Weight : 1.15
• Standards : HACR rated
• Certification : UL Listed,CSA Certified
