QBHW2100H - Cutler Hammer 100A 240V Two-Pole Quicklag Thermal-Magnetic Circuit Breaker Bolt-On 22 kAIC

QBHW2100H

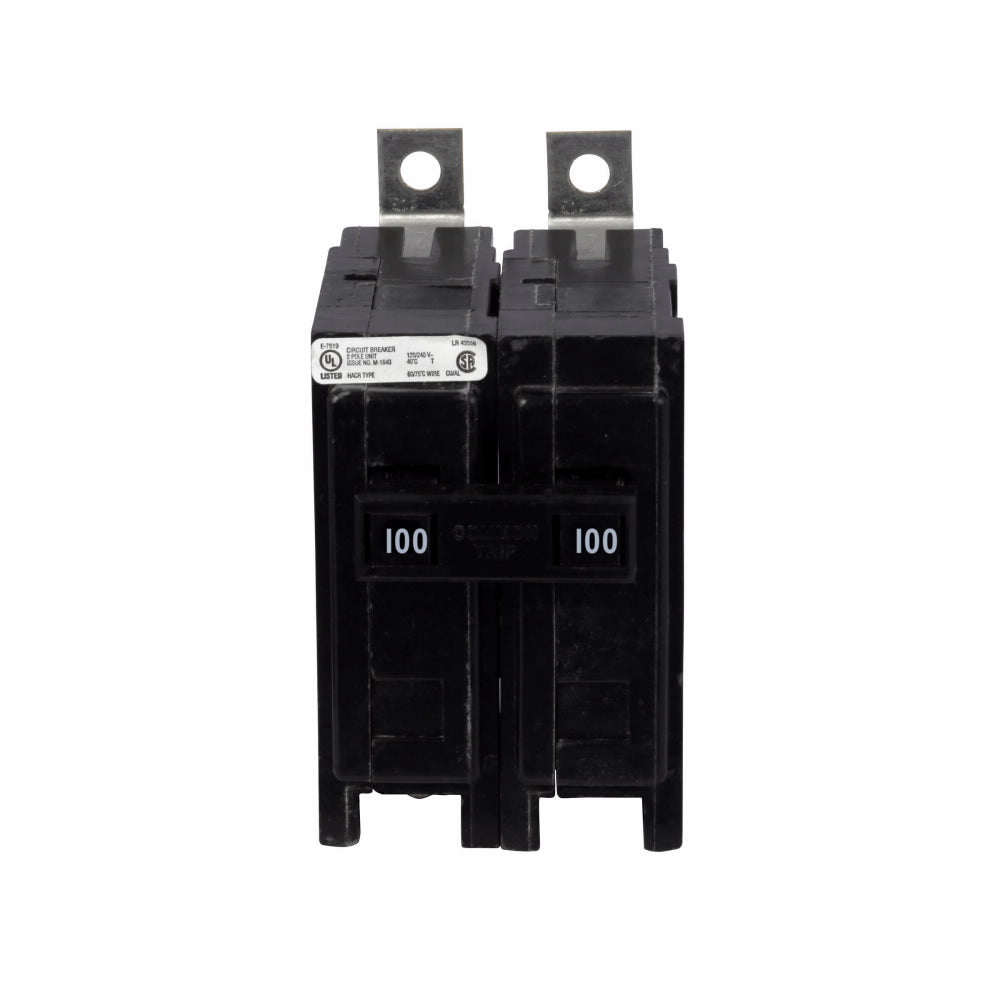

QBHW2100H is a Cutler Hammer Quicklag industrial thermal-magnetic circuit breaker designed for reliable two-pole protection at 100 amps and 240 volts.This bolt-on circuit breaker features a 22 kA interrupt rating, non-interchangeable trip type, and is UL Listed and CSA Certified. It is part of the QBHW series with a BAB frame, suitable for single-phase applications requiring robust circuit protection.

• Amperage: 100 A
• Voltage Rating: 240 V AC
• Number of Poles: Two-pole
• Mounting Type: Bolt-on
• Interrupt Rating: 22 kAIC
• Series/Frame: QBHW / BAB
• Trip Unit: Thermal-Magnetic, Non-Interchangeable
• Certifications: UL Listed, CSA Certified
• HACR Rated
• Type: Quicklag
• Dimensions: 3.9 in L x 4.5 in H x 2.2 in W
• Weight: 0.8 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBHW2100H
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Quicklag
• Type : QBHW
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679152614
• GTIN : 00786679152614
• Country of Origin : Dominican Republic
• Dimensions : 3.9 in x 4.5 in x 2.2 in (Length/Depth x Height x Width)
• Weight : 0.8
• Standards : HACR rated
• Certification : UL Listed,CSA Certified
• Wire Size : AWG 8 to AWG 1/0, Aluminum/Copper
