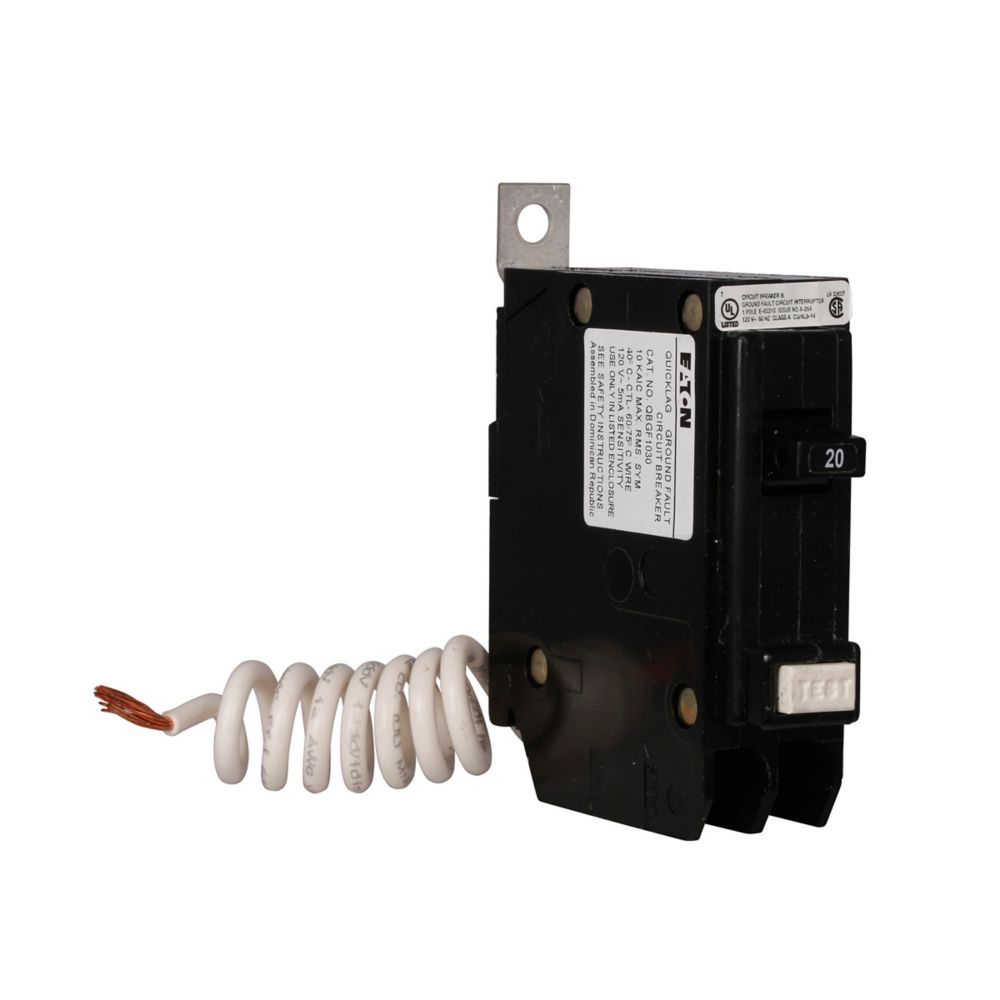

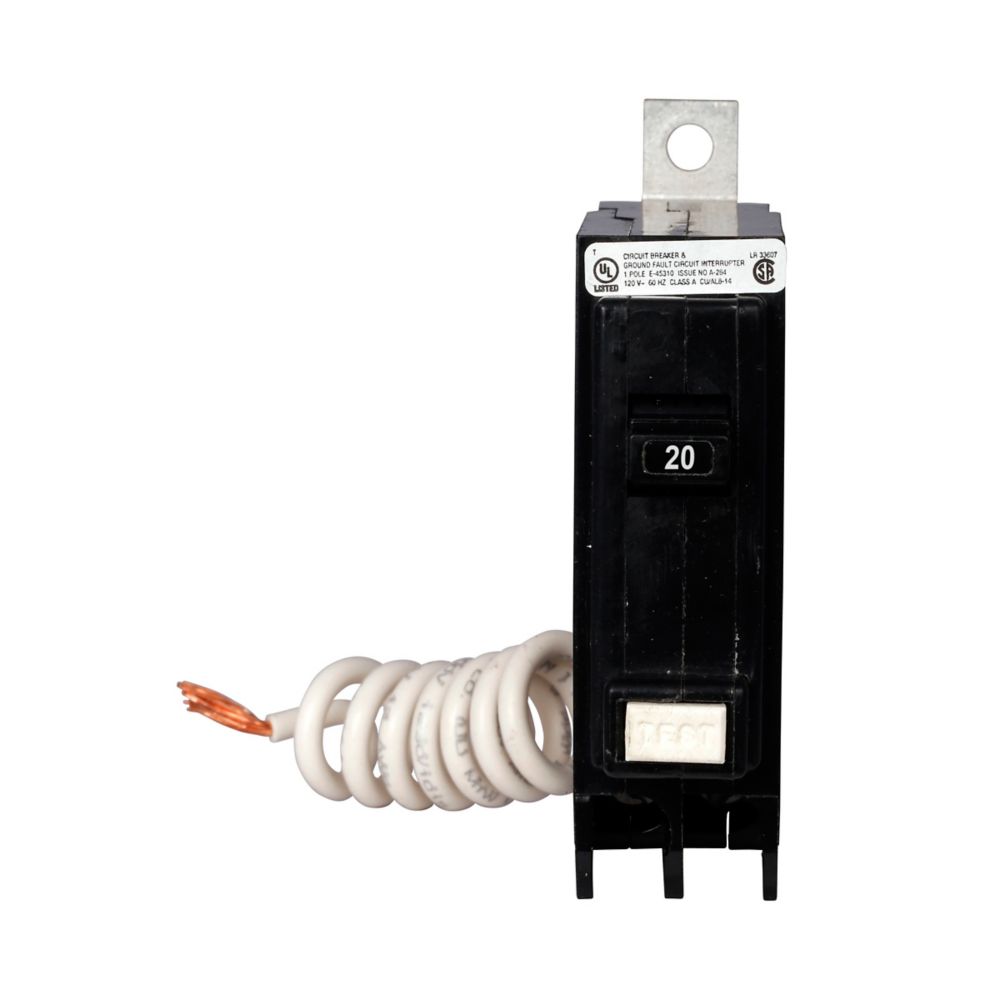

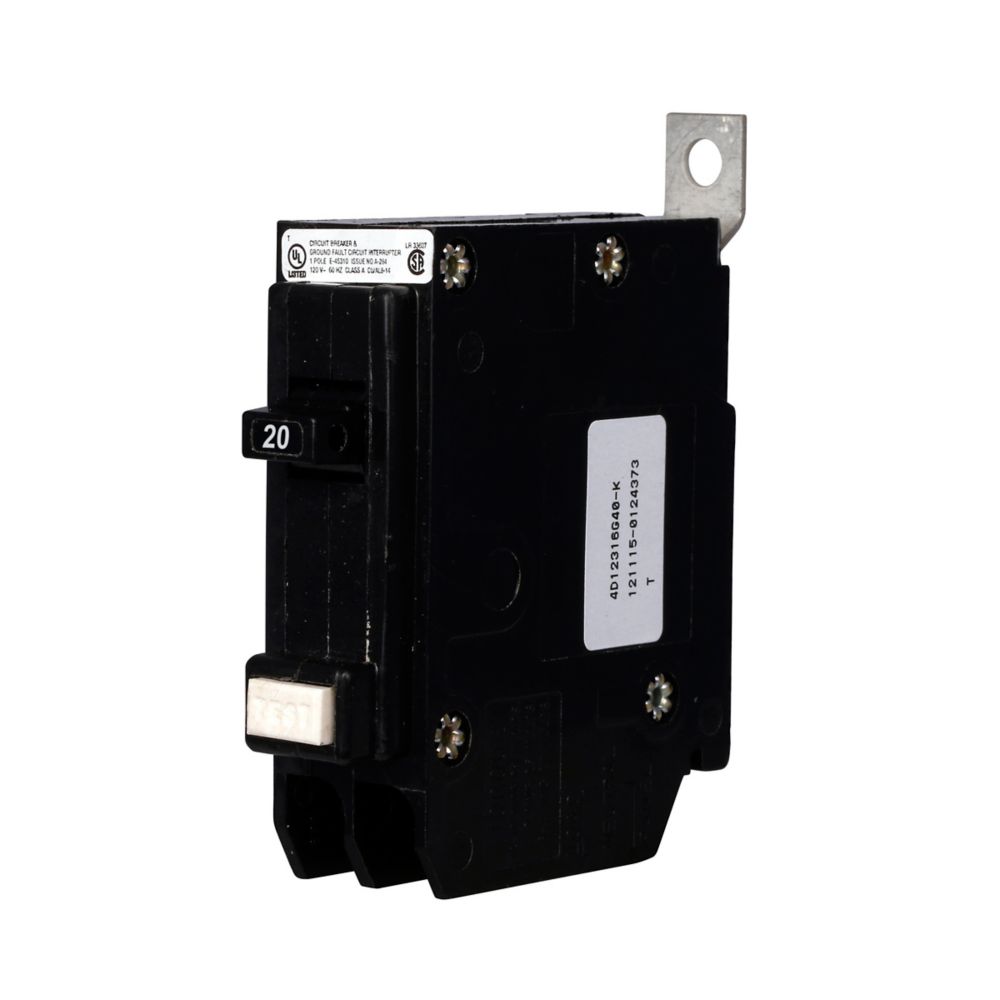

QBHGF1020 - Cutler Hammer 20A 120V 1 Pole Ground Fault Circuit Breaker 22kAIC Bolt-On

QBHGF1020

QBHGF1020 is a single-pole ground fault circuit breaker designed for reliable protection in residential and commercial applications. This Cutler Hammer breaker features bolt-on mounting, 20A current rating, 120VAC voltage rating, and a 22kA interrupting capacity at 120V. It provides ground fault protection with a 5 mA trip sensitivity and thermal-magnetic trip unit for both overload and short-circuit protection. The breaker is compatible with standard load centers and includes load side lug terminals and pigtail for neutral connection. Key Specifications

• Part Number: QBHGF1020
• Manufacturer: Cutler Hammer
• Amperage: 20A
• Voltage: 120VAC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 22kAIC @ 120V
• Series/Frame: QB
• Ground Fault Trip Sensitivity: 5 mA
• Protection Type: Ground Fault (GFCI)
• Frame Type: BAB
• Terminal Type: Load Side Lug, Pigtail

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBHGF1020
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QUICKLAG
• Type : QBHGF
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 22kA@120V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786680222450
• GTIN : 00786679373200
• Dimensions : 5.1 in x 1.2 in x 3.3 in (Length/Depth x Height x Width)
• Weight : 0.45
• Certification : UL
