Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
QBHGF1030

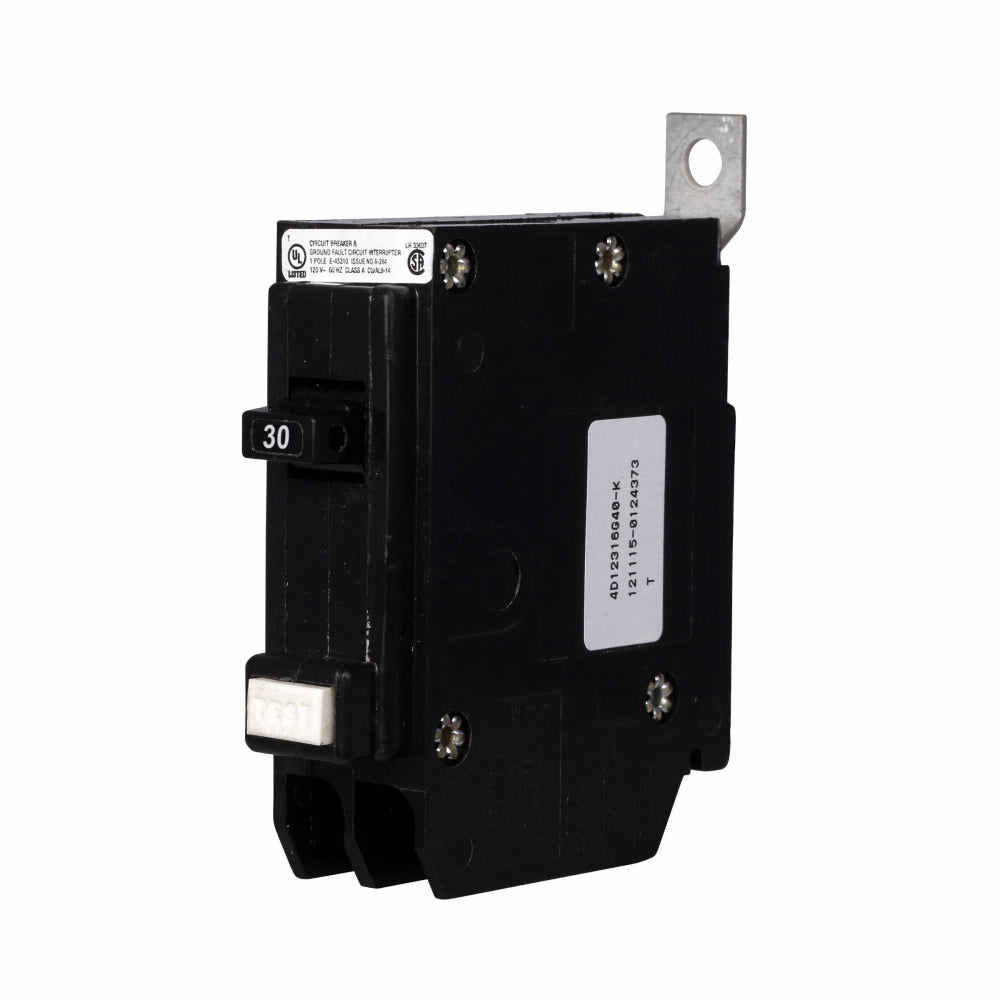

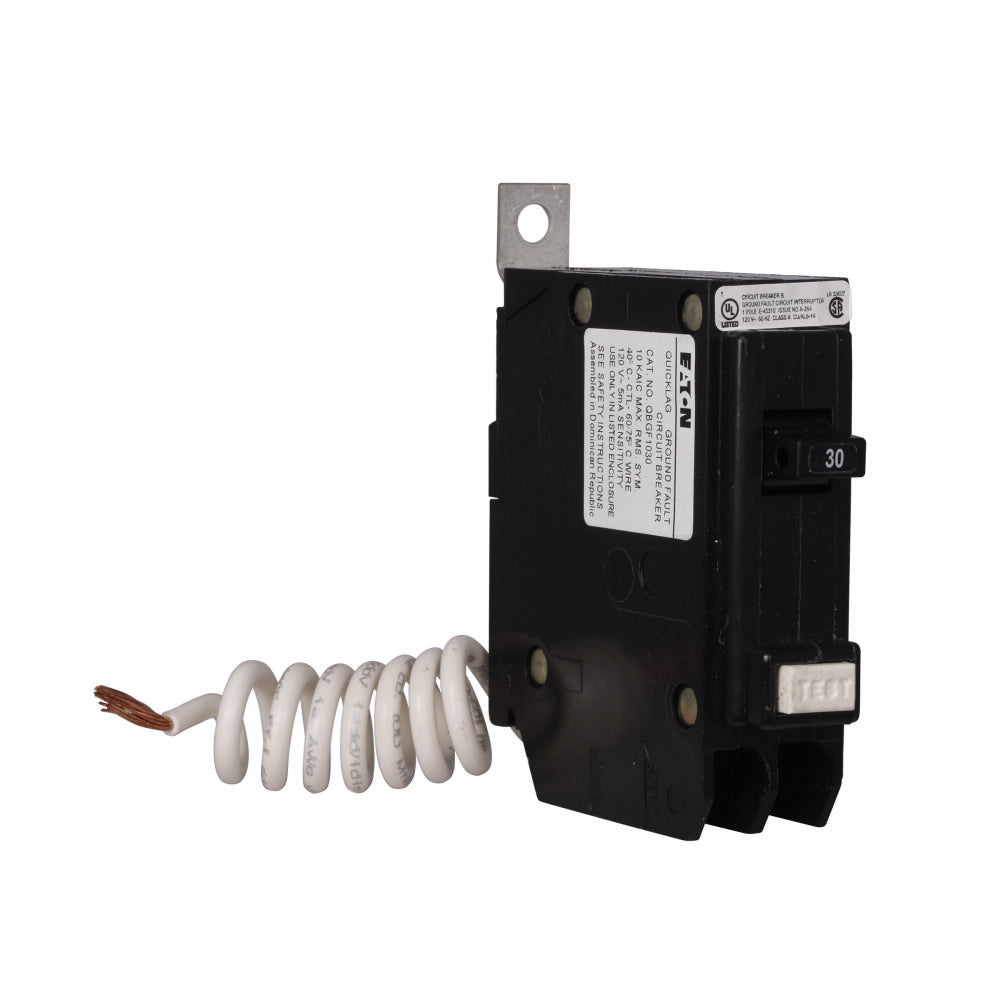

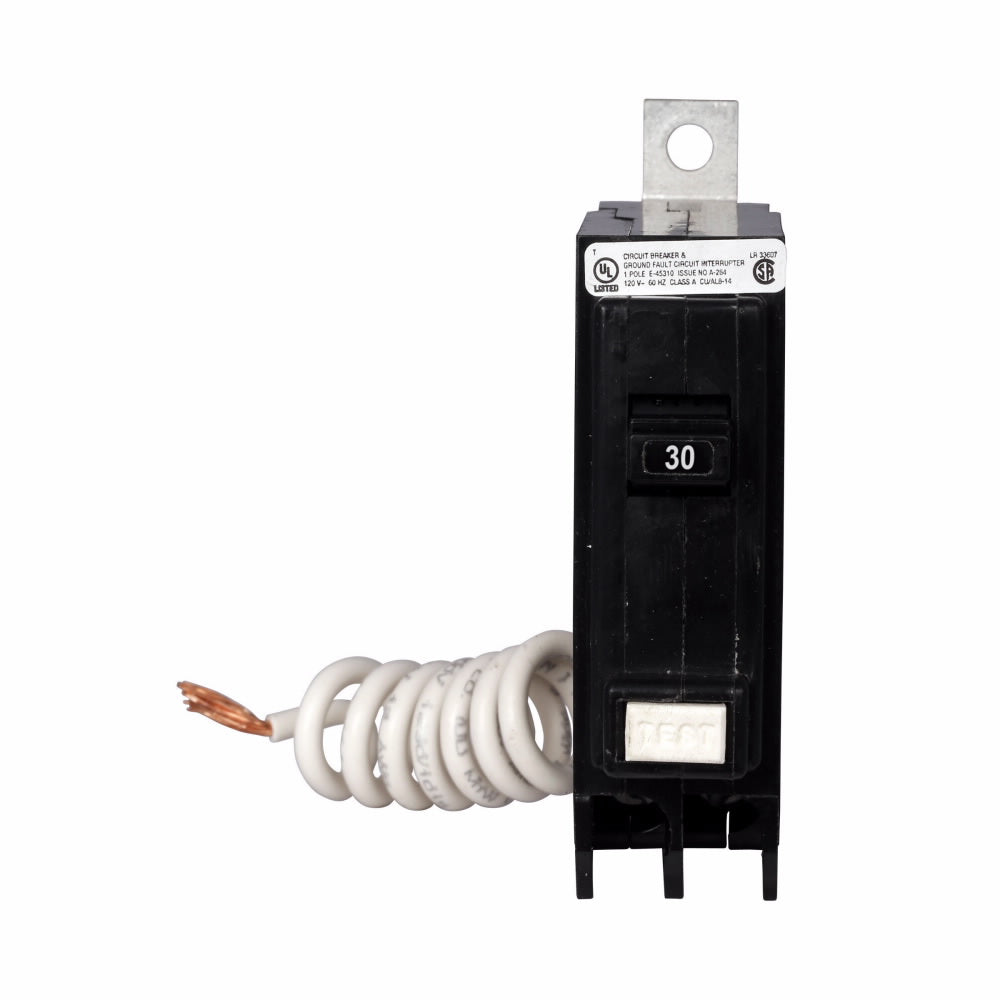

QBHGF1030 is a Cutler Hammer 30 Amp 1 Pole Ground Fault Circuit Breaker designed for reliable electrical protection in 120 Volt AC systems.This bolt-on circuit breaker features a BAB frame type with thermal magnetic trip unit providing long time and instantaneous trip functions. It offers ground fault protection with 5 mA trip sensitivity and a high interrupting capacity of 22 kAIC at 120V. The breaker is UL 943 certified and includes load side lug terminals for secure connections.
- Amperage: 30 Amps
- Voltage: 120 Volt AC
- Number of Poles: 1
- Mounting Type: Bolt-On
- Interrupt Rating: 22 kAIC @ 120V
- Frame Type: BAB
- Trip Unit: Thermal Magnetic with Ground Fault 5 mA Sensitivity
- Certifications: UL 943
- Load Side Lug Terminals
- Series: QUICKLAG
Specifications
- Part Number: QBHGF1030
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QUICKLAG
- Type : QBHGF
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 1
- AIC rating : 22kA@120V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679373309
- GTIN : 00786679373309
- Country of Origin : Dominican Republic
- Weight : 0.45
- Certification : UL 943
- Wire Size : 14 to 8 AWG
