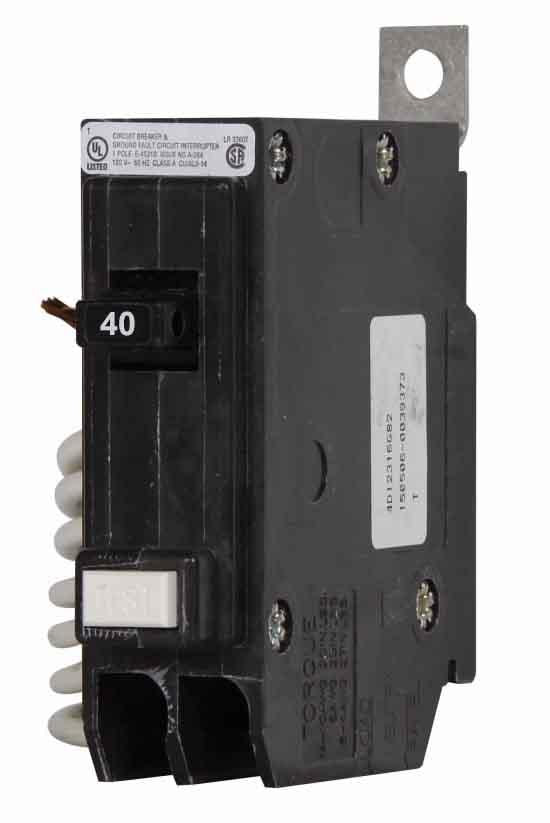

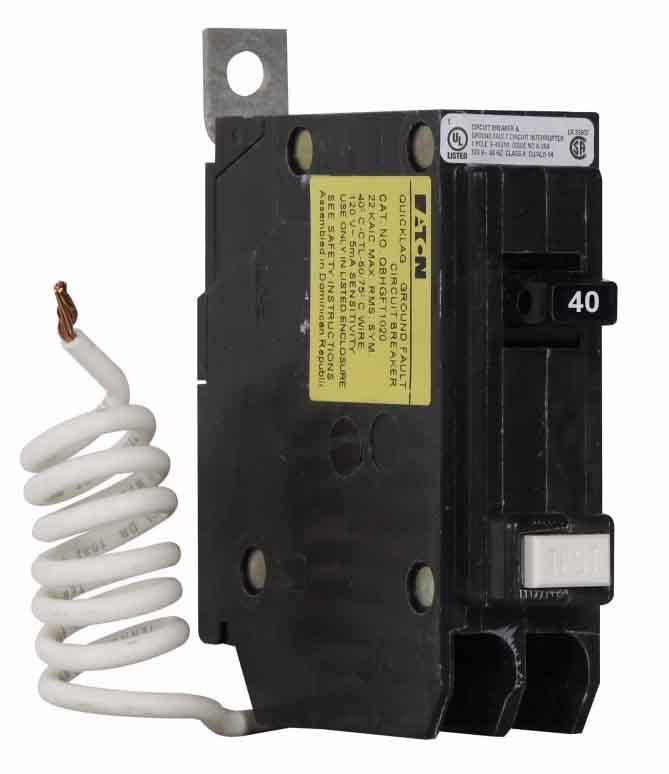

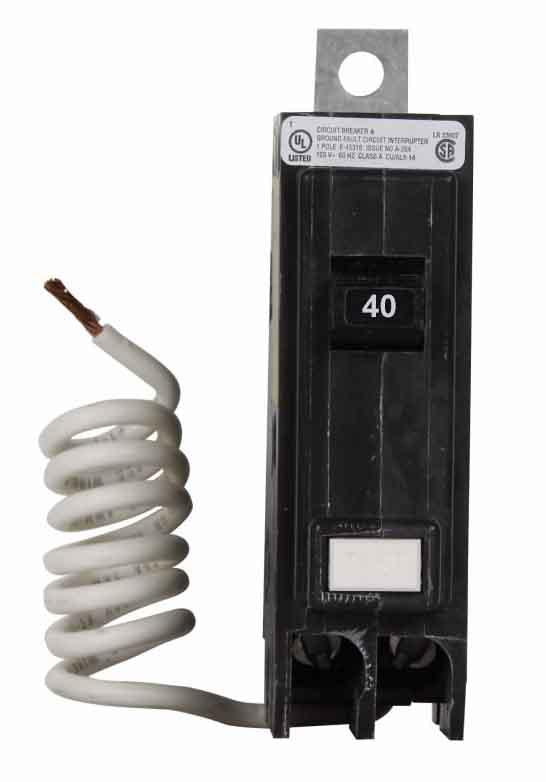

QBGFT1040 - Cutler Hammer 40A 120/240V Single-Pole Ground Fault Circuit Breaker, 10 kAIC, Bolt-On

QBGFT1040

QBGFT1040 is a Cutler Hammer single-pole ground fault circuit breaker rated for 40 amps and 120/240 volts with a 10 kA interrupt rating.This QBGFT1040 breaker features a bolt-on mounting type, 5 mA trip sensitivity for ground fault protection, and is non-interchangeable. It supports #8 Cu and #8–6 Al wire sizes and is UL 489 certified for safety and reliability.

• Amperage: 40 A
• Voltage: 120/240 V AC
• Poles: Single-pole
• Mounting Type: Bolt-on
• Interrupt Rating: 10 kAIC
• Trip Sensitivity: 5 mA ground fault
• Frame Type: BAB
• Trip Type: Non-Interchangeable
• Wire Size: #8 Cu, #8–6 Al
• Certifications: UL 489
• Weight: 0.5 lb
• Warranty: 1 year

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBGFT1040
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QUICKLAG
• Type : QBGF
• Voltage : 120
• Amperage : 40
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786680130991
• GTIN : 00786680130991
• Dimensions : 1 in x 1 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.5
• Certification : UL
• Wire Size : 8 AWG, 8 AWG to 6 AWG, Cu/Al
