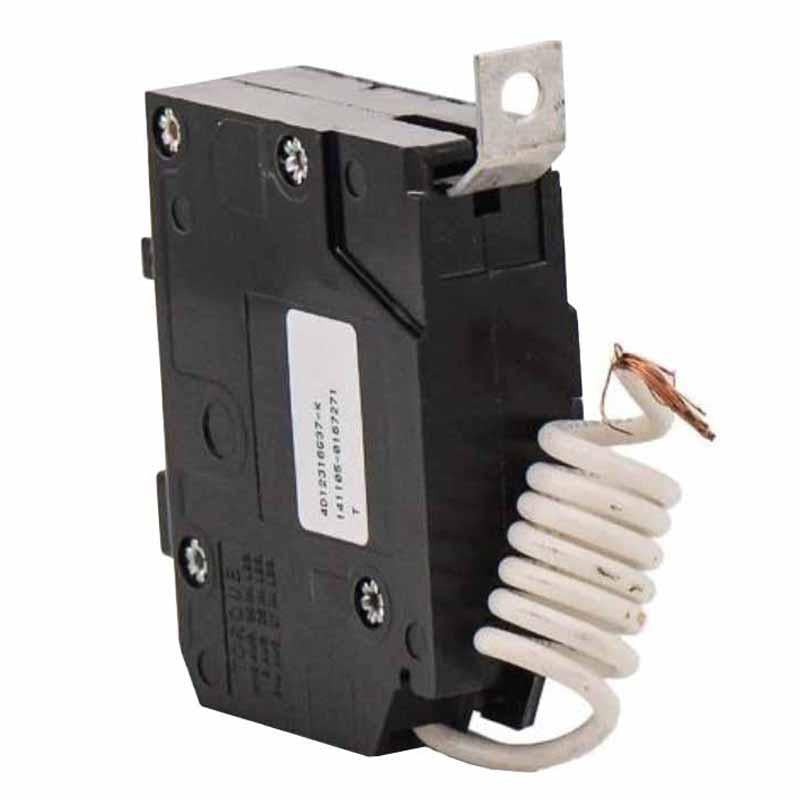

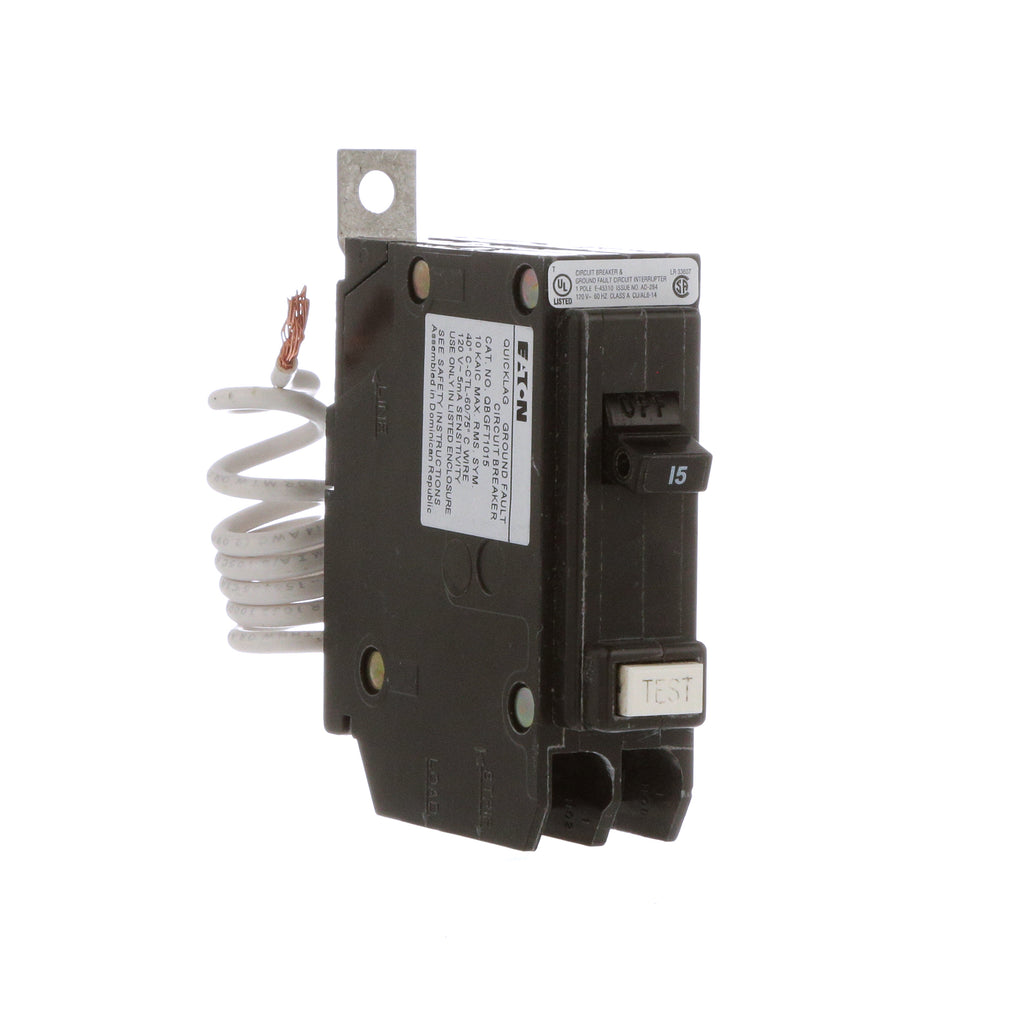

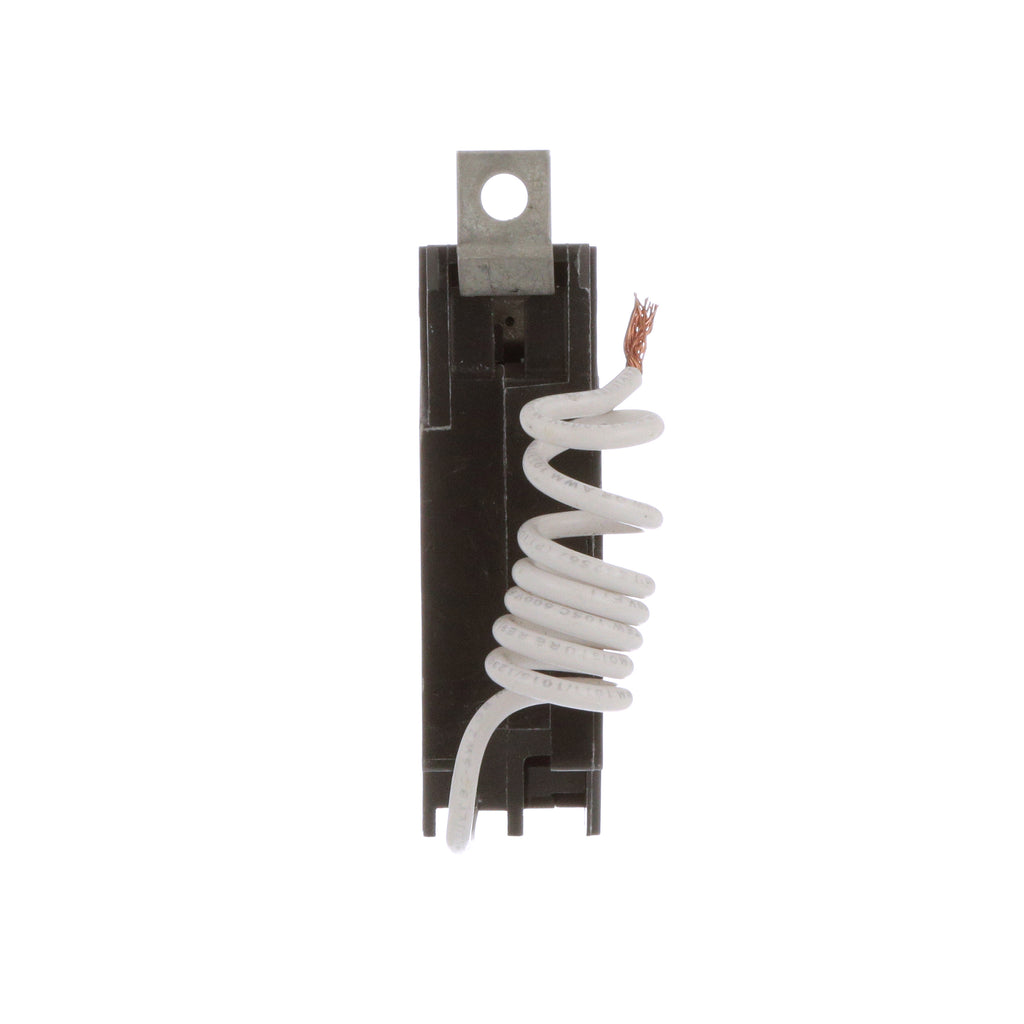

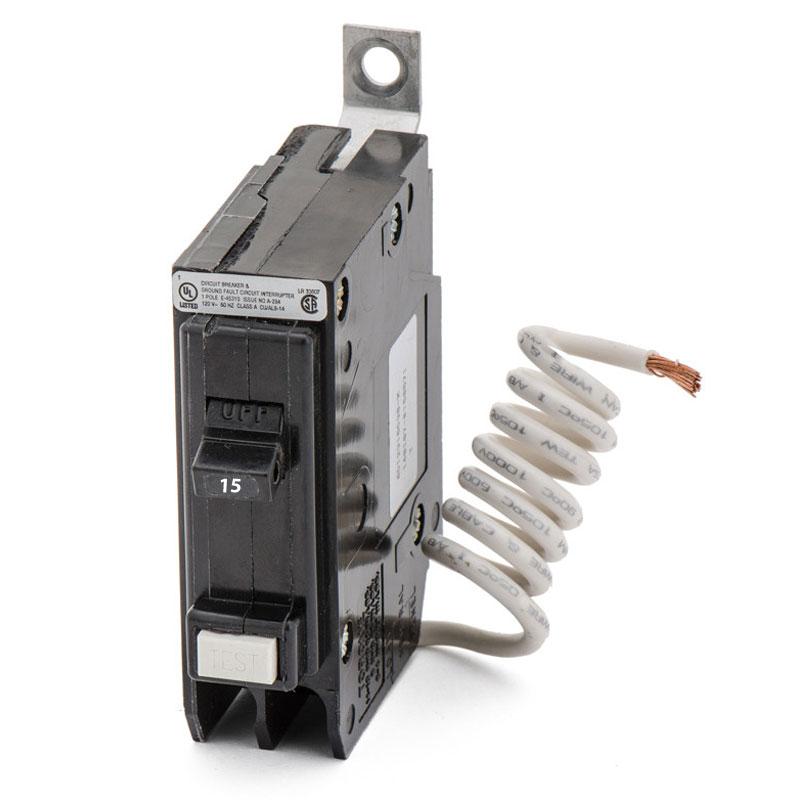

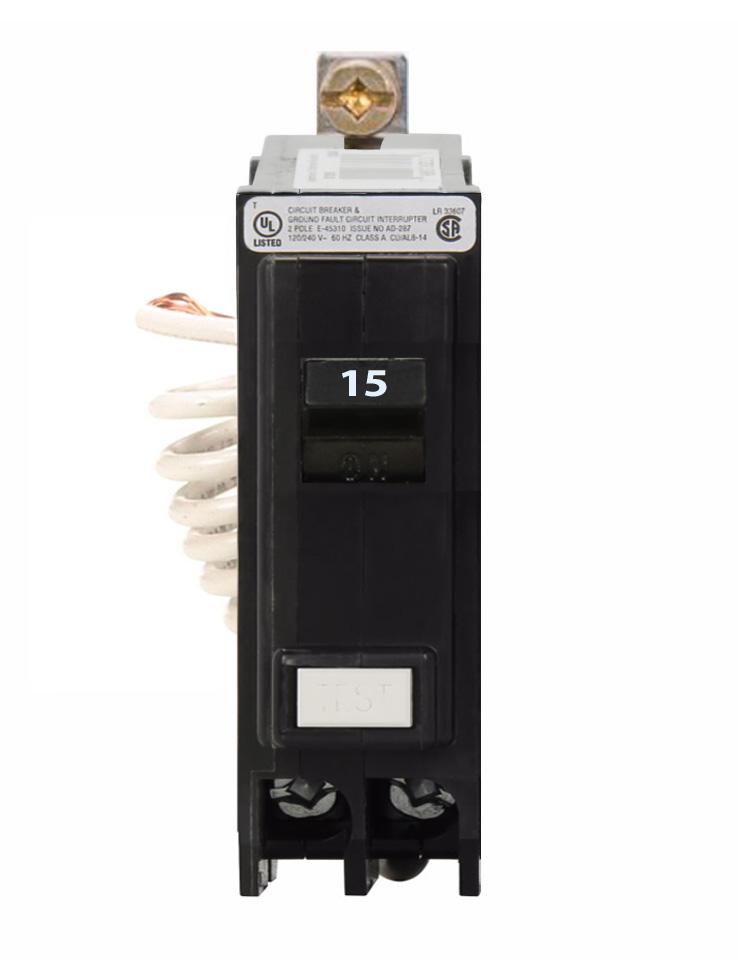

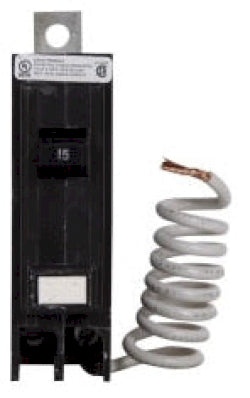

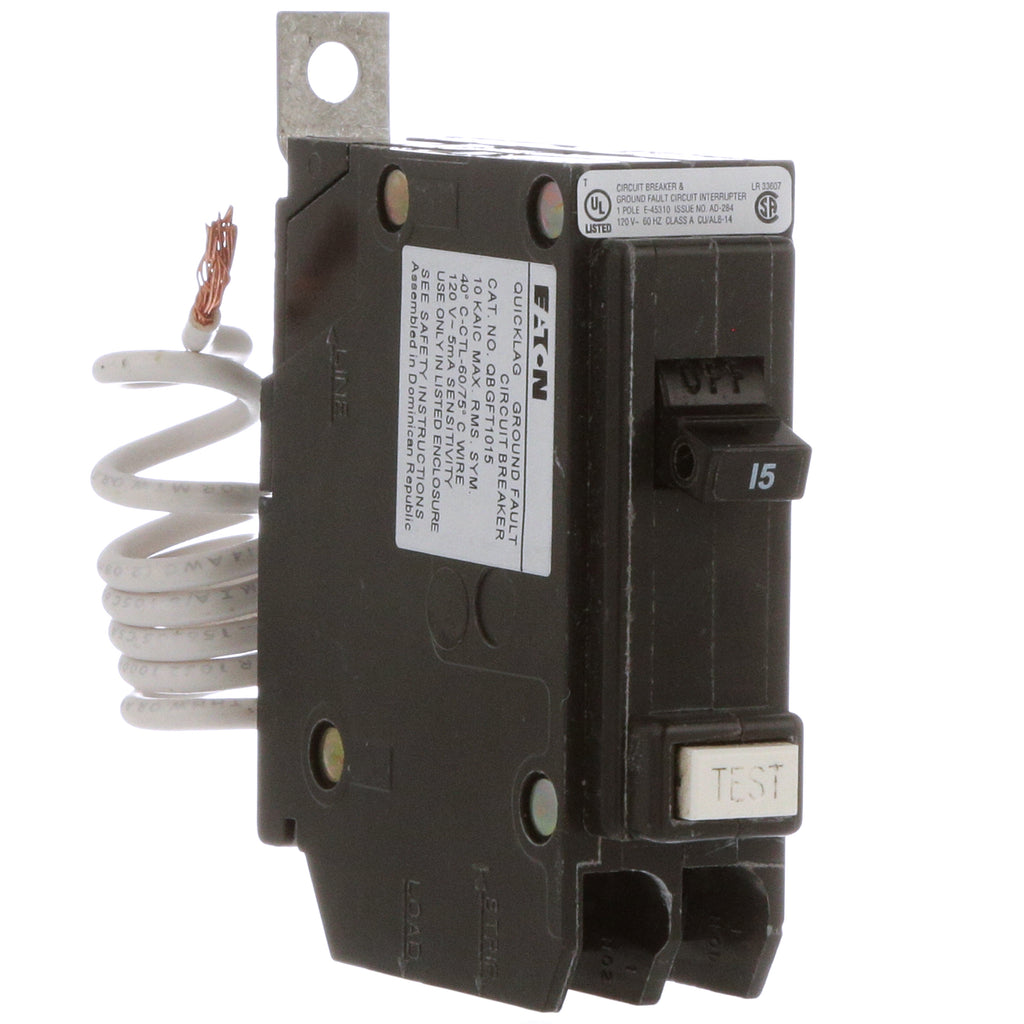

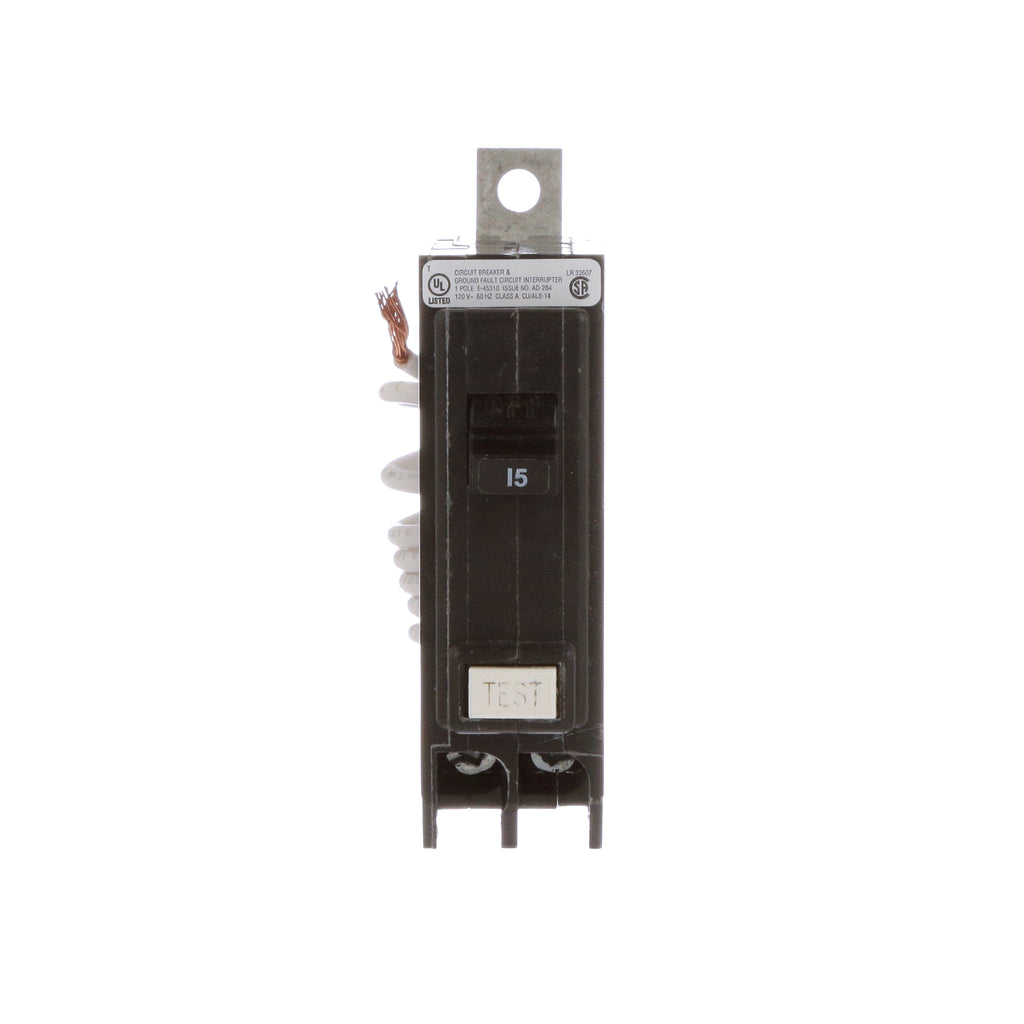

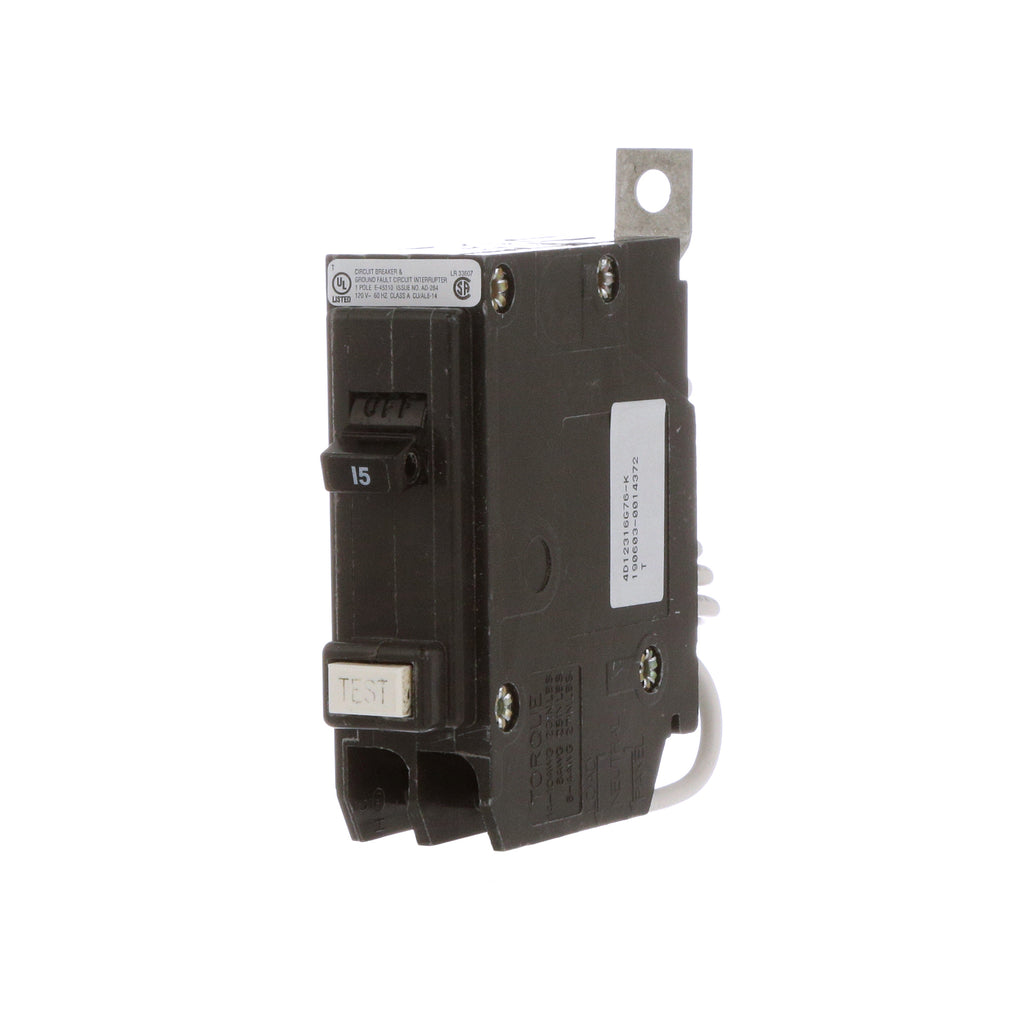

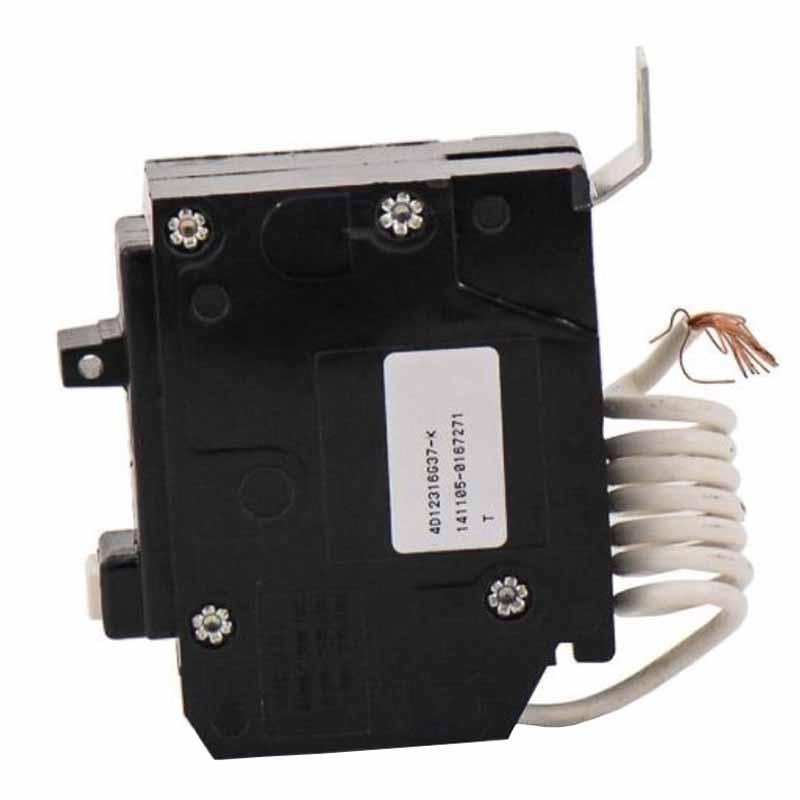

QBGFT1015 - Cutler Hammer 15A 120/240V Single-Pole Ground Fault Circuit Breaker Bolt-On 10kAIC 5mA Trip Sensitivity

QBGFT1015

QBGFT1015 is a Cutler Hammer ground fault circuit breaker designed for reliable protection with a 15 amp rating and 120/240 volt capacity.This single-pole bolt-on breaker features a 10 kA interrupting rating and 5 mA trip sensitivity for ground fault protection. It supports wire sizes #14-10 AWG copper and #12-10 AWG aluminum, is UL 489 certified, and includes thermal magnetic trip functions. The breaker is non-interchangeable and part of the Eaton QB GFCI series.

Key Specifications
• Amperage: 15 A
• Voltage: 120/240 V
• Poles: Single-pole
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kAIC
• Trip Sensitivity: 5 mA
• Wire Size: #14-10 AWG Cu, #12-10 AWG Al
• Series/Frame: QB GFCI (QBGF)
• Trip Type: Non-Interchangeable
• Certifications: UL 489 Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBGFT1015
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QUICKLAG
• Type : QBGF
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 786680130953
• GTIN : 00786680130953
• Country of Origin : Dominican Republic
• Dimensions : 1 in x 1 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.5
• Certification : UL 489
• Wire Size : AWG 14 to AWG 10, AWG 12 to AWG 10, Copper/Aluminum
