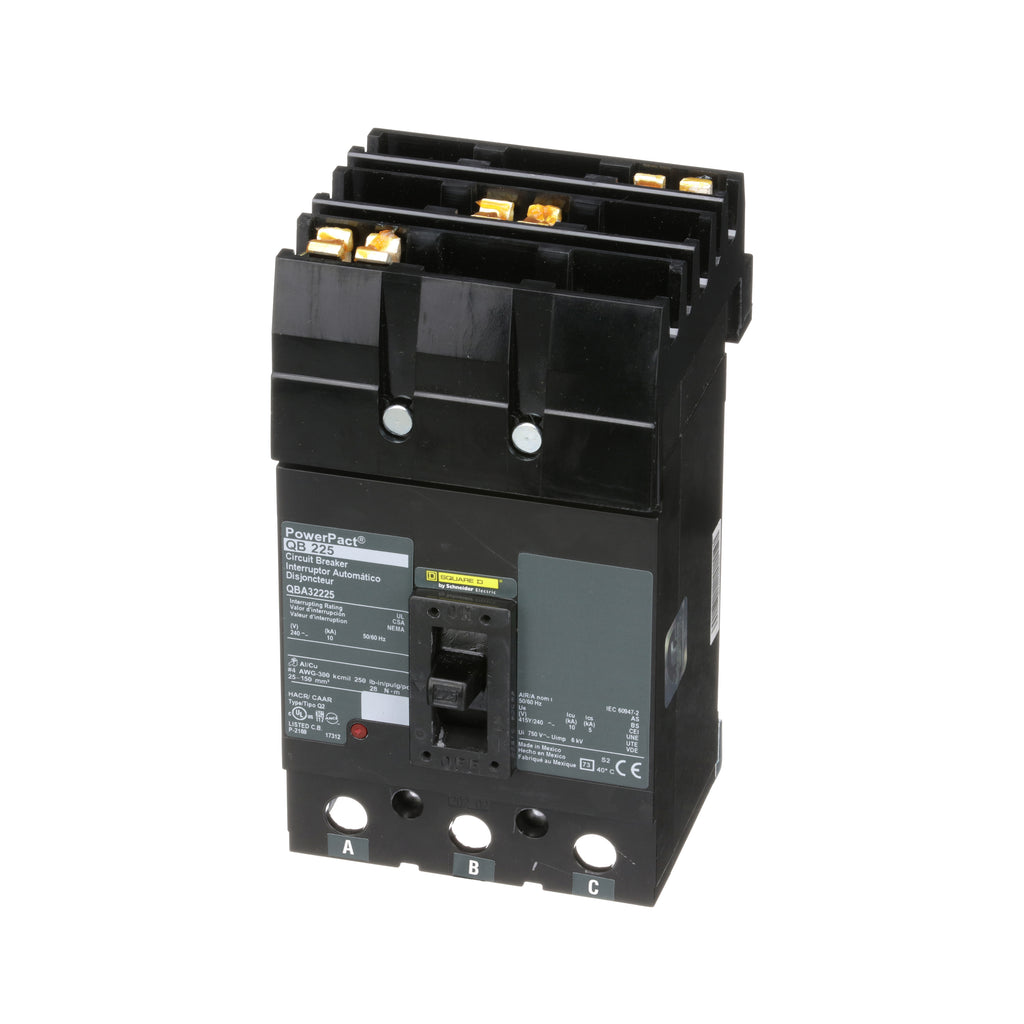

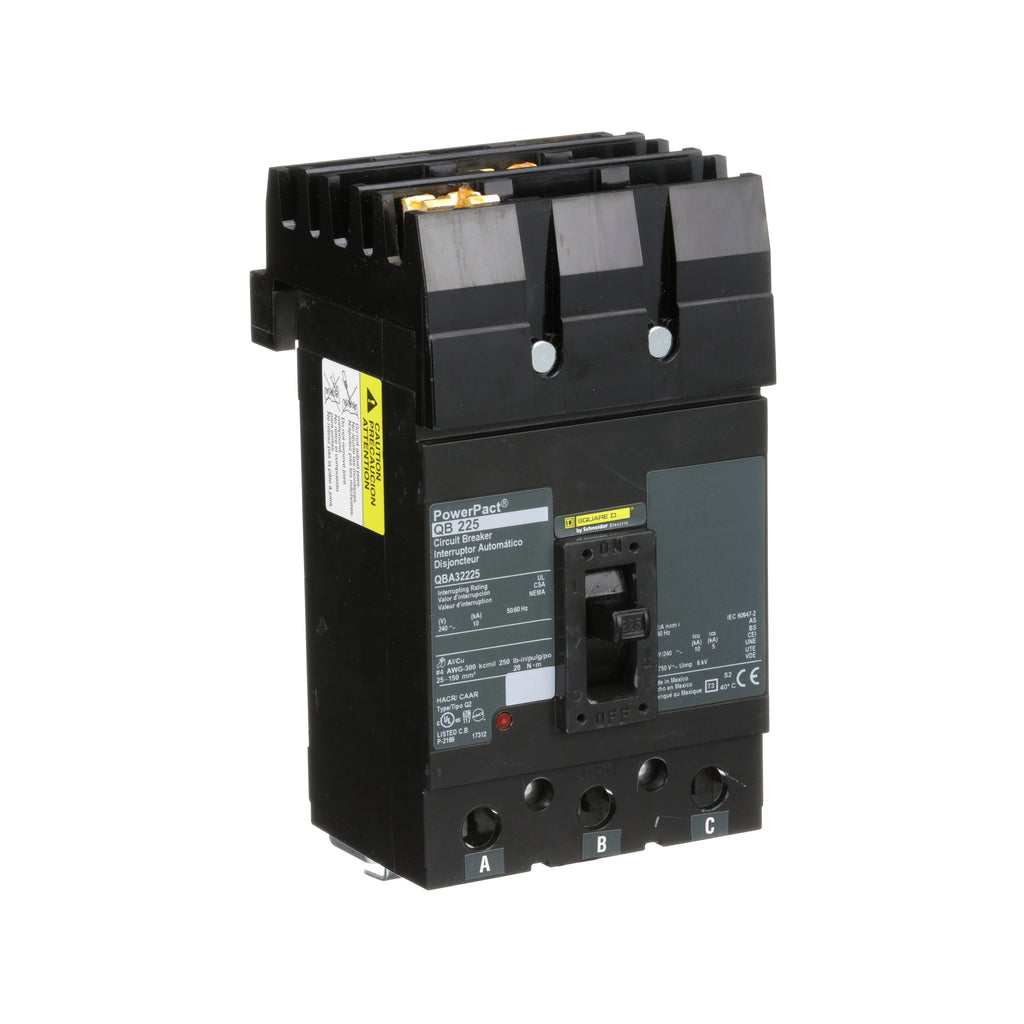

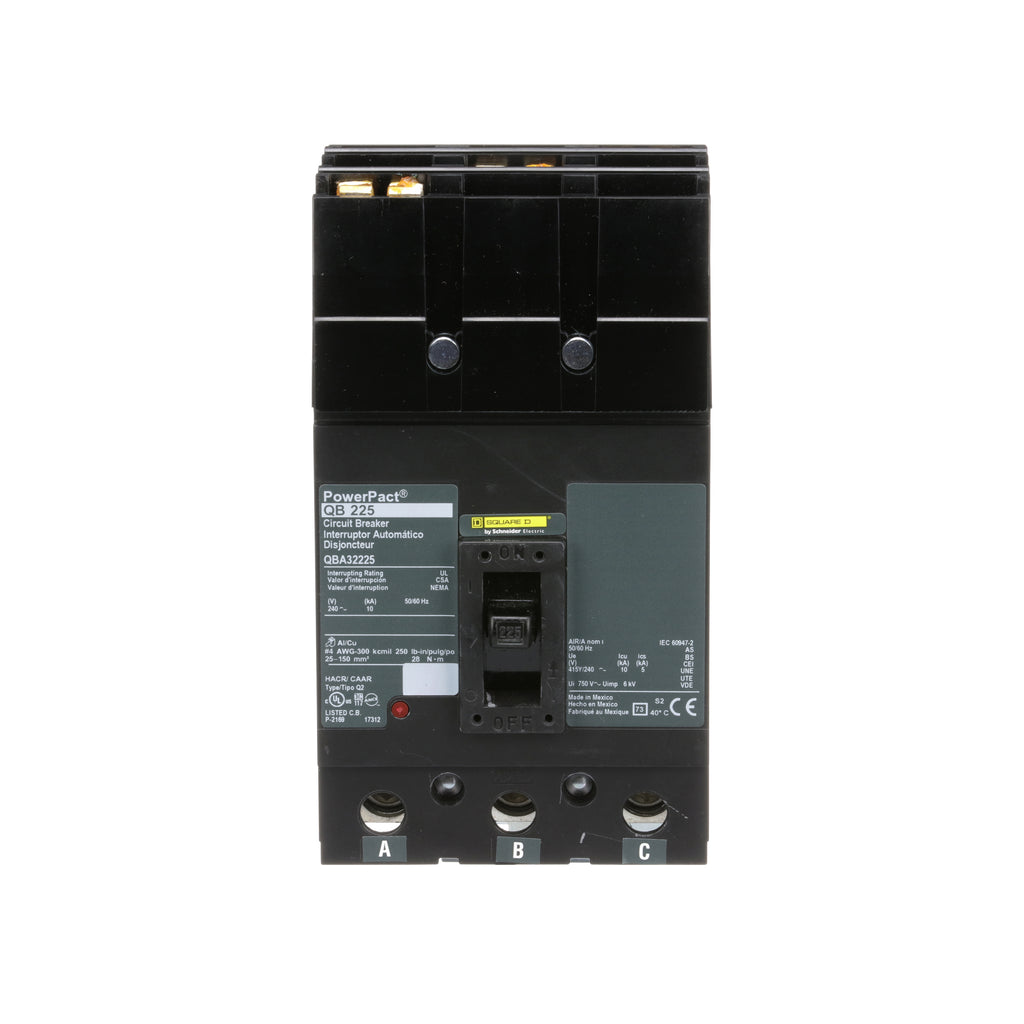

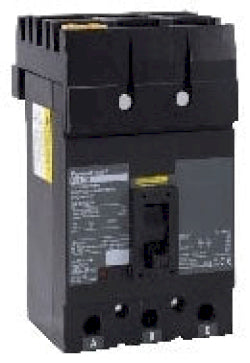

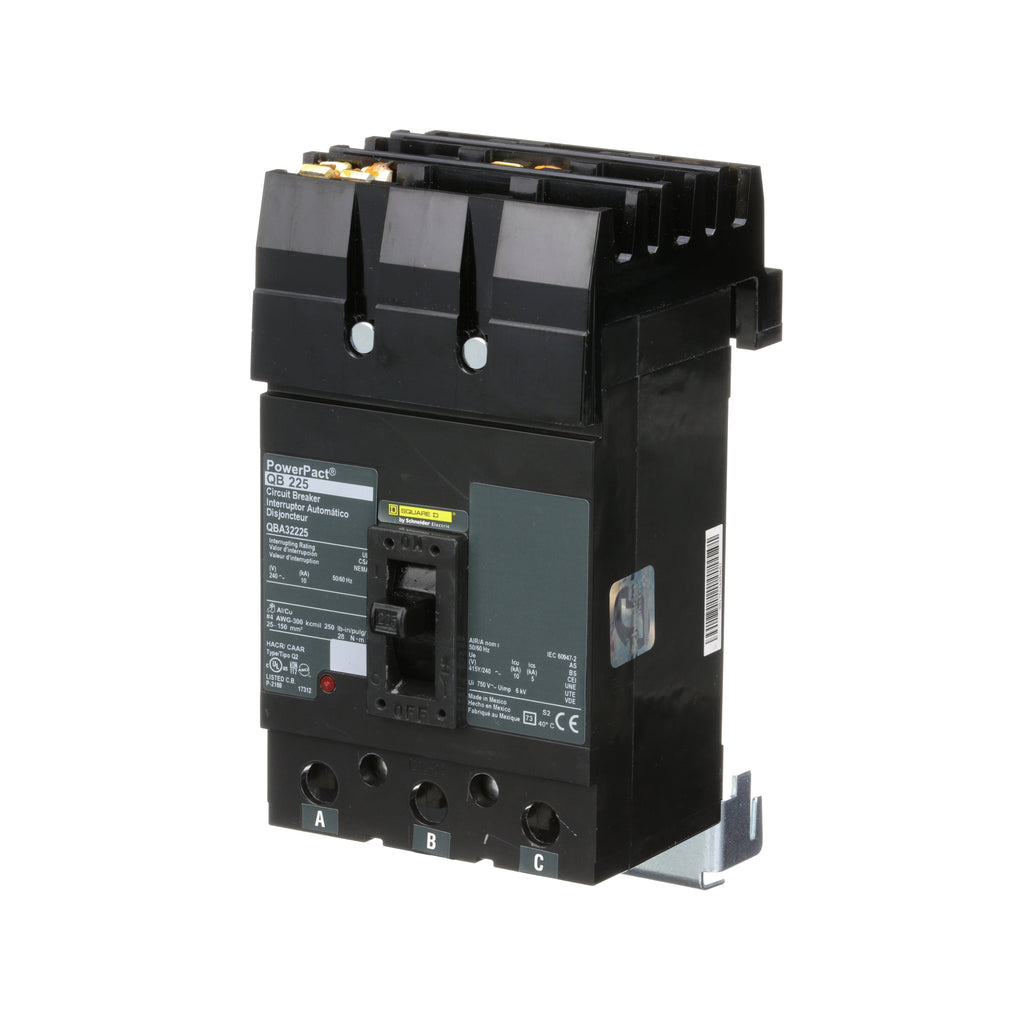

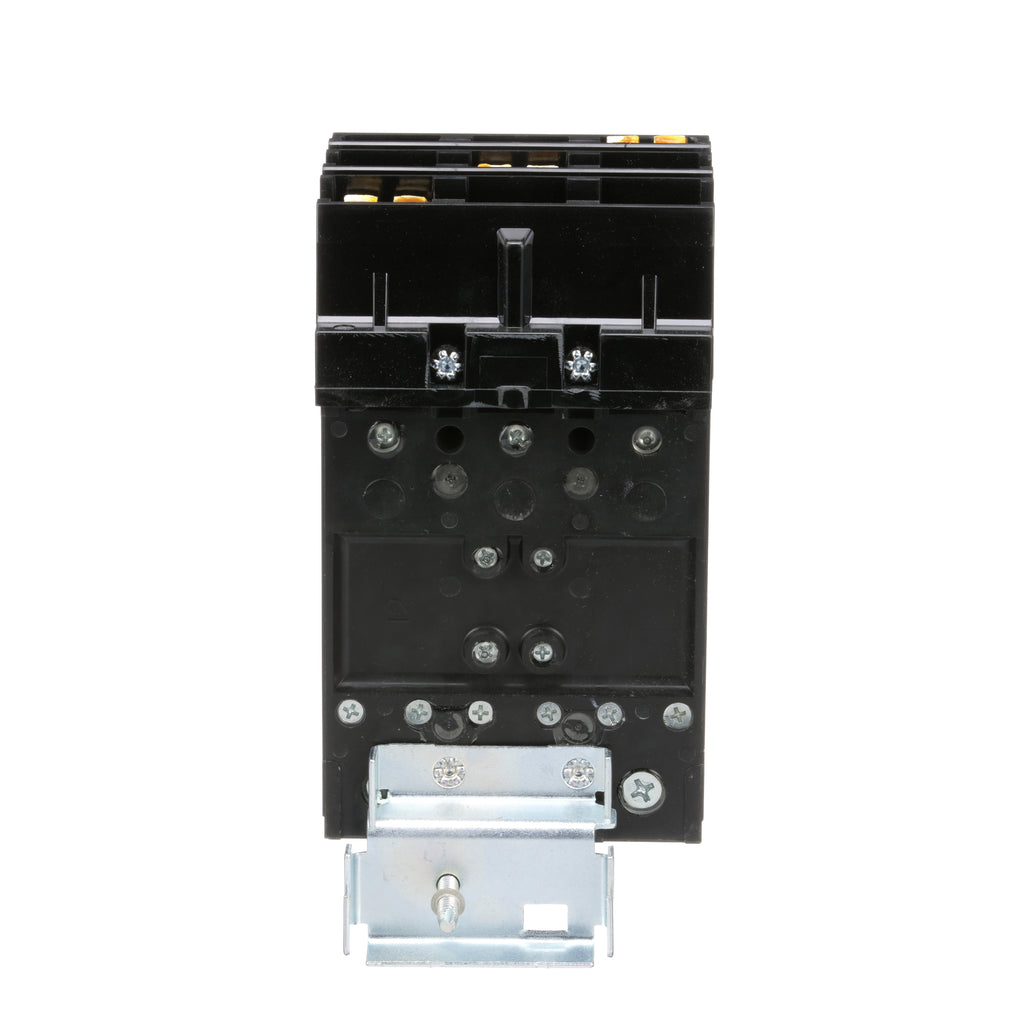

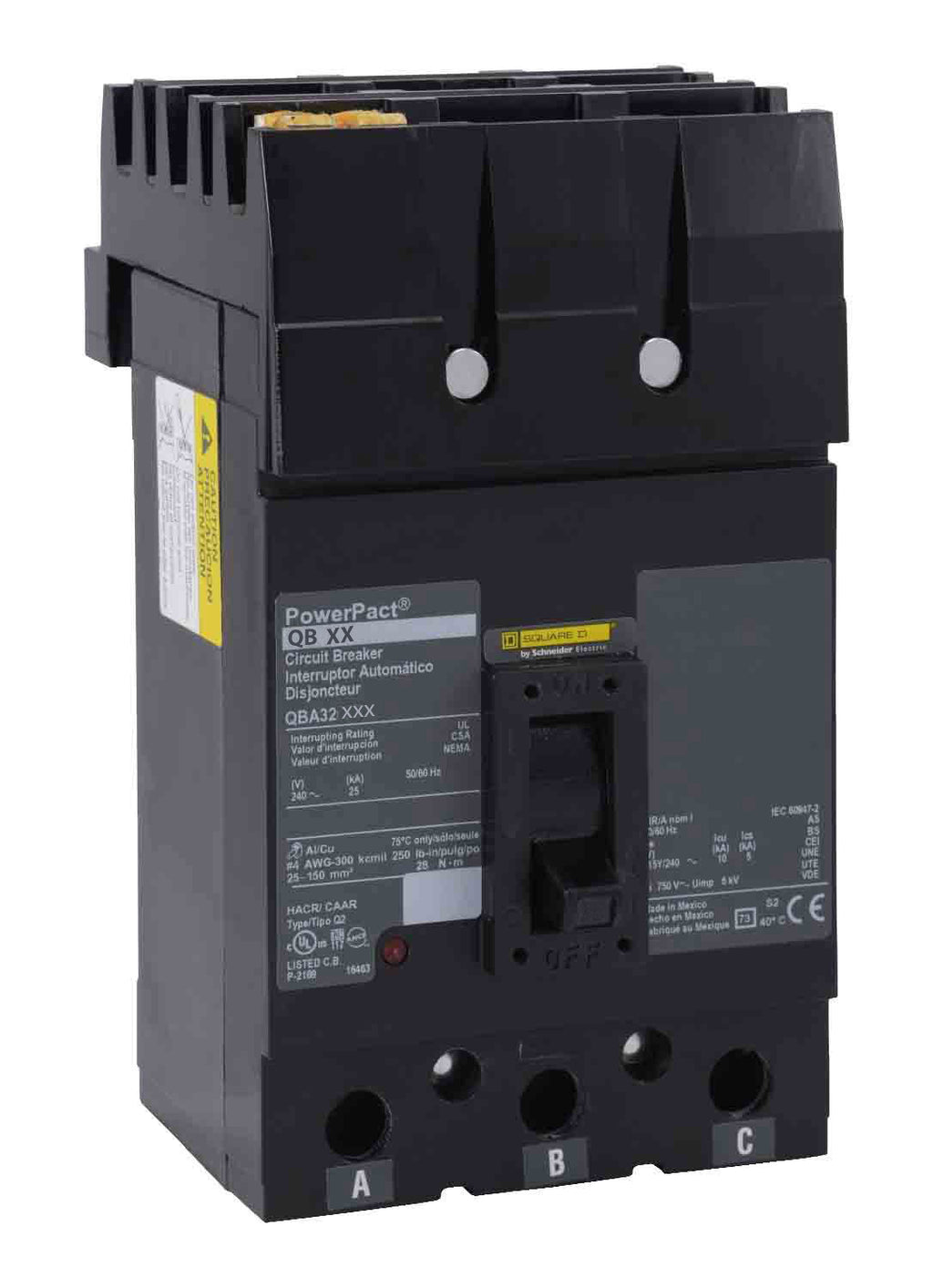

QBA32225 - Square D I-Line PowerPacT Q 225A 3-Pole 240V Molded Case Circuit Breaker, 10kA Interrupt, Plug-In Mount, Thermal-Magnetic Trip, UL/CSA/IEC

QBA32225

QBA32225 is a Square D I-Line PowerPacT Q molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial applications.

This 3-pole breaker offers a 225A current rating at 240VAC, with a 10kA interrupting capacity, thermal-magnetic trip unit, and plug-in mounting for easy installation. It is UL Listed, CSA, and IEC certified for safety and compliance.

Key Specifications
• Part Number: QBA32225
• Manufacturer: Square D (Schneider Electric)
• Amperage: 225A
• Voltage: 240VAC
• Poles: 3
• Mounting Type: Plug-In (I-Line)
• Interrupt Rating: 10kA @ 240VAC
• Series/Frame: PowerPacT Q
• Trip Unit: Thermal-Magnetic (1200A hold, 2400A trip)
• Certifications: UL 489 Listed, CSA, IEC
• Continuous Current: 80% rated
• Connection: ABC phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBA32225
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QBA
• Voltage : 240
• Amperage : 225
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901702962
• GTIN : 00785901702962
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 6.649
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
