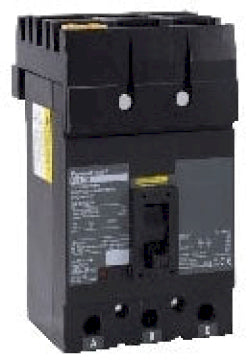

QBA32070 - Square D PowerPact Q 70A 3-Pole 240VAC Molded Case Circuit Breaker, I-Line Plug-In, Thermal Magnetic Trip, 10kAIC, UL/CSA/NEMA/NOM

QBA32070

QBA32070 is a Square D PowerPact Q series 3-pole molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial applications.

This circuit breaker features a 70A current rating, 240VAC voltage rating, and 10kA interrupting capacity. It utilizes a thermal-magnetic trip unit with long-time and instantaneous protection, and is designed for easy I-Line plug-in mounting. The QBA32070 is UL, CSA, NEMA, and NOM certified, ensuring compliance with industry standards for safety and performance.

Key Specifications
• Part Number: QBA32070
• Manufacturer: Square D
• Series/Frame: PowerPact Q (QBA)
• Amperage: 70A
• Voltage: 240VAC
• Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 10kAIC at 240VAC
• Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
• Certifications: UL, CSA, NEMA, NOM
• Connection: Load Side Lug (AWG 4-300 kcmil Al/Cu)
• Phase: 3
• Standards: HACR

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBA32070
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QBA
• Voltage : 240
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : Q Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901402497
• GTIN : 00785901402497
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 6.691
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
