QBA32110 - Square D 110A 240VAC 3-Pole Thermal Magnetic Circuit Breaker I-Line Plug-In

QBA32110

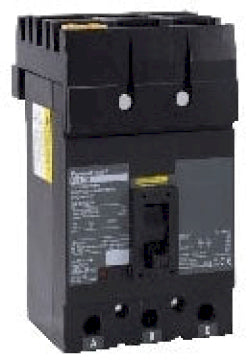

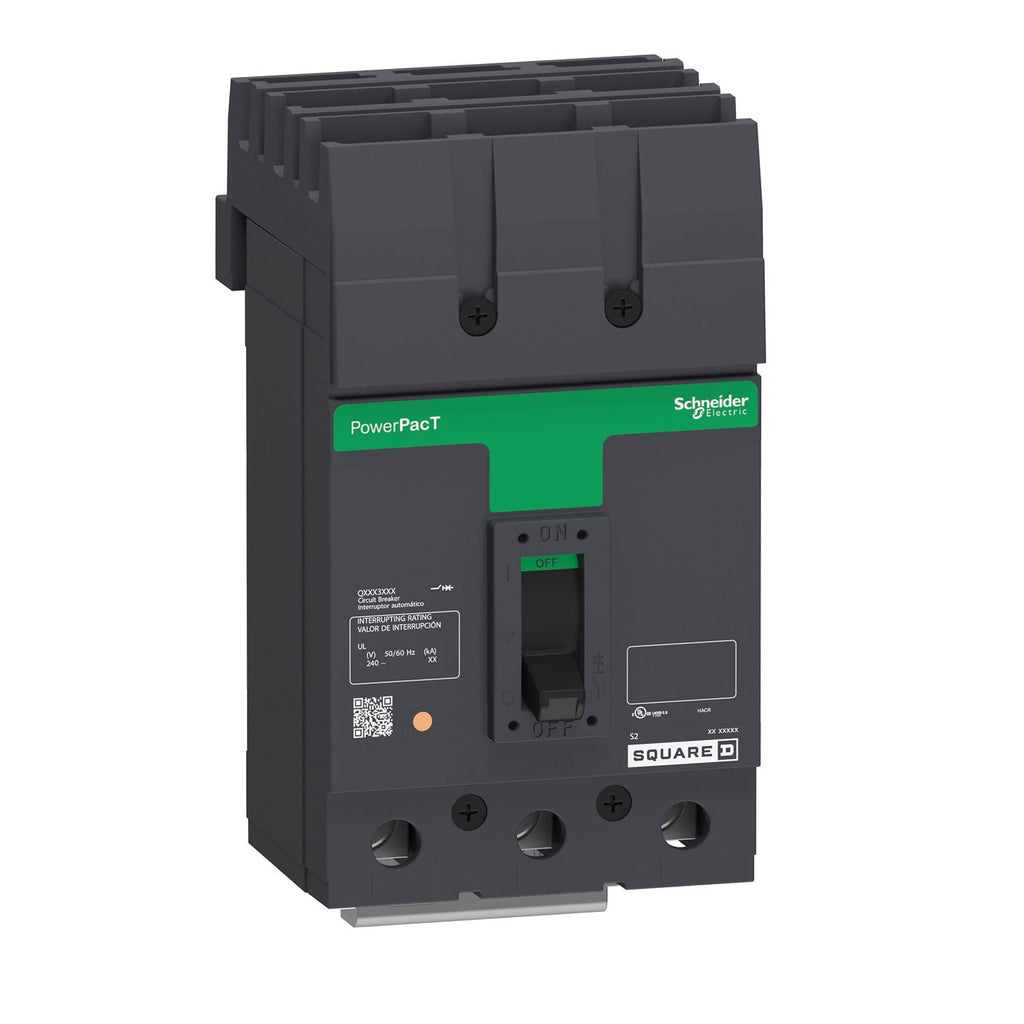

QBA32110 is a 3-pole thermal magnetic molded case circuit breaker from Square D designed for 110 amps and 240VAC applications.This Square D QBA32110 circuit breaker features a 3-pole configuration with a 110 ampere rating and 240VAC voltage rating. It utilizes an I-Line style plug-in connection and offers a 10kA interrupting rating at 240 volts. The breaker includes long time and instantaneous trip functions for reliable overcurrent protection. It is UL, CSA, IEC, and ANCE certified and designed for use in power distribution and switching on AC systems.

Key Specifications
• Amperage: 110A
• Voltage: 240VAC
• Poles: 3
• Interrupt Rating: 10kAIC @ 240V
• Connection Type: I-Line Style Plug-In
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Series/Frame: QBA
• Certifications: UL, CSA, IEC, ANCE
• Terminal Connection: Load side lug
• Application: Overcurrent Protection and Switching on AC Systems
• Standards: RoHS Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBA32110
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QBA
• Voltage : 240
• Amperage : 110
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901702955
• GTIN : 00785901702955
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 6.75
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
