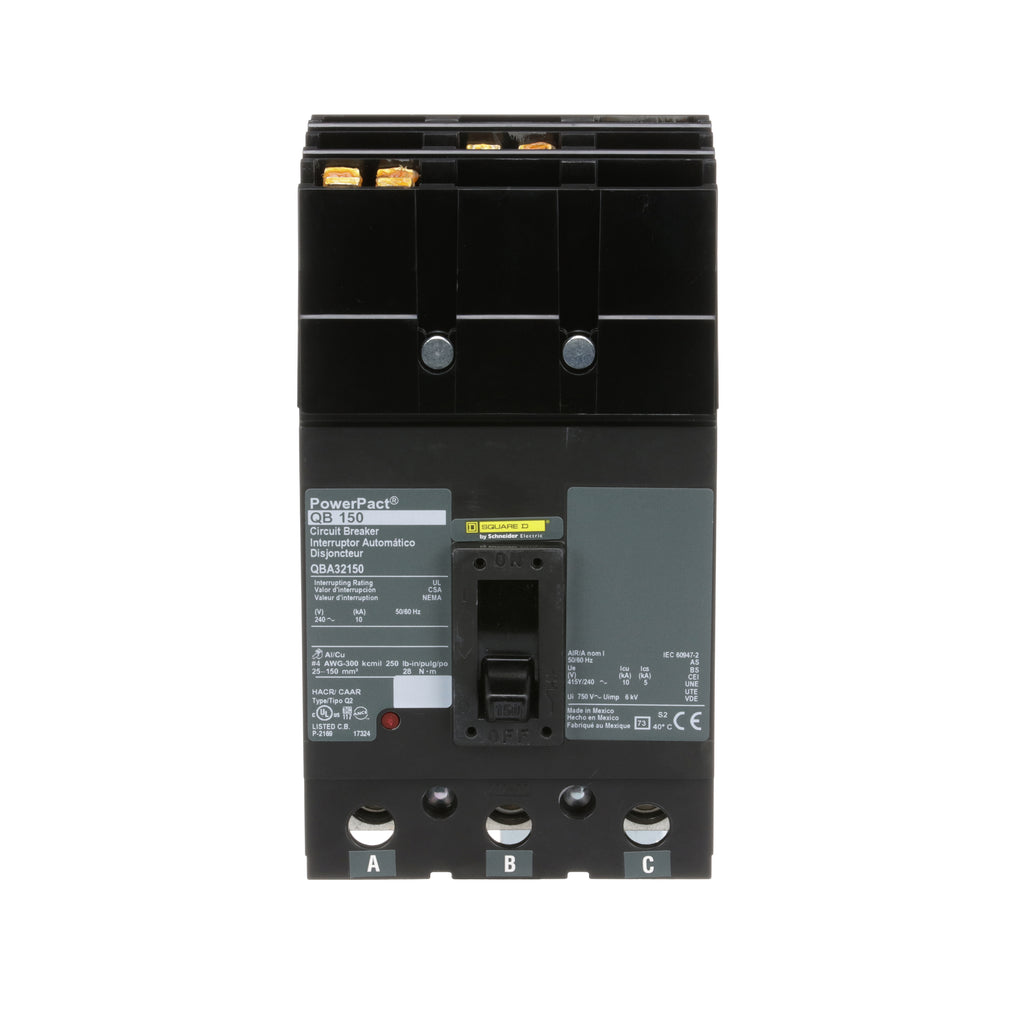

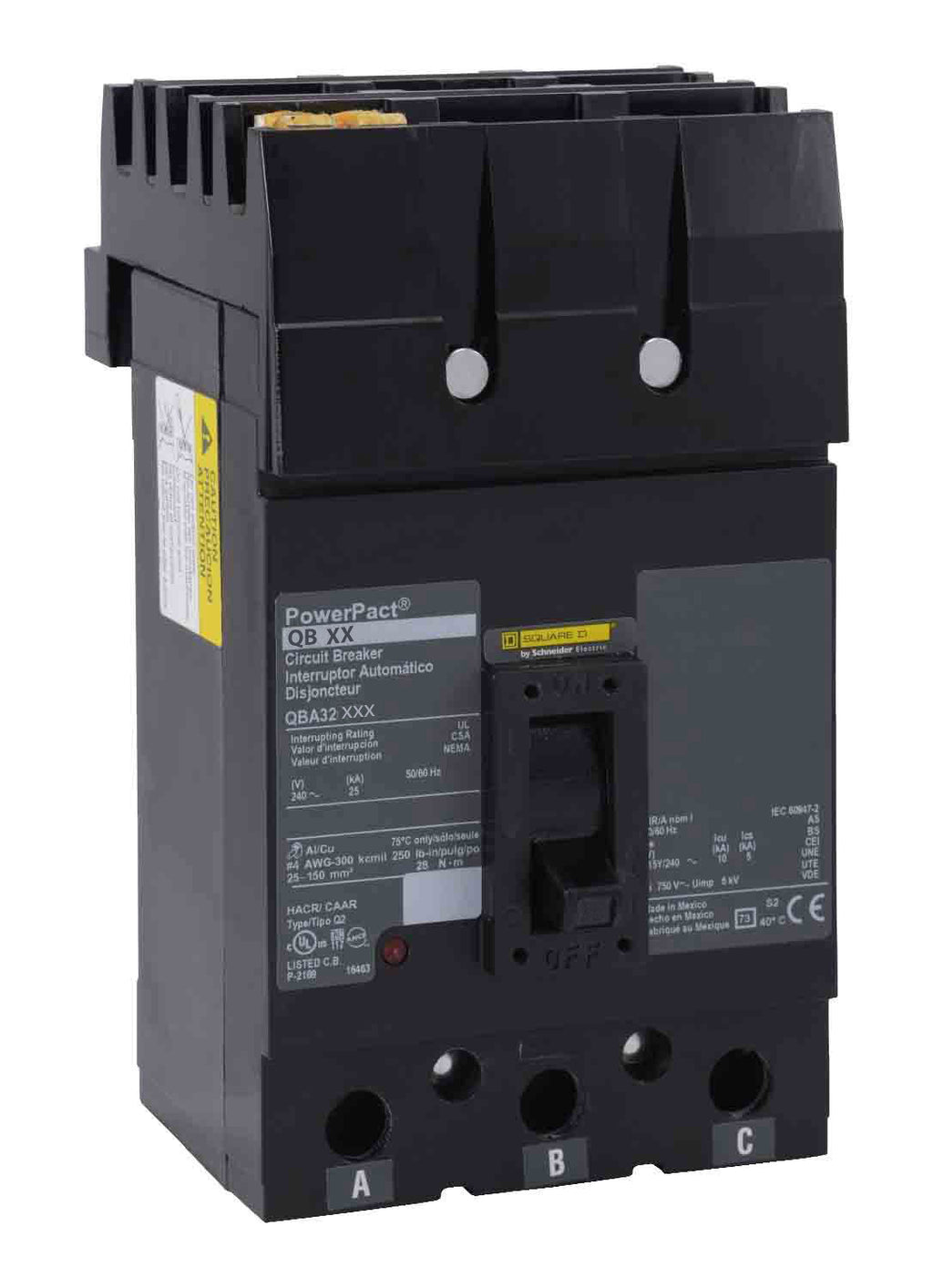

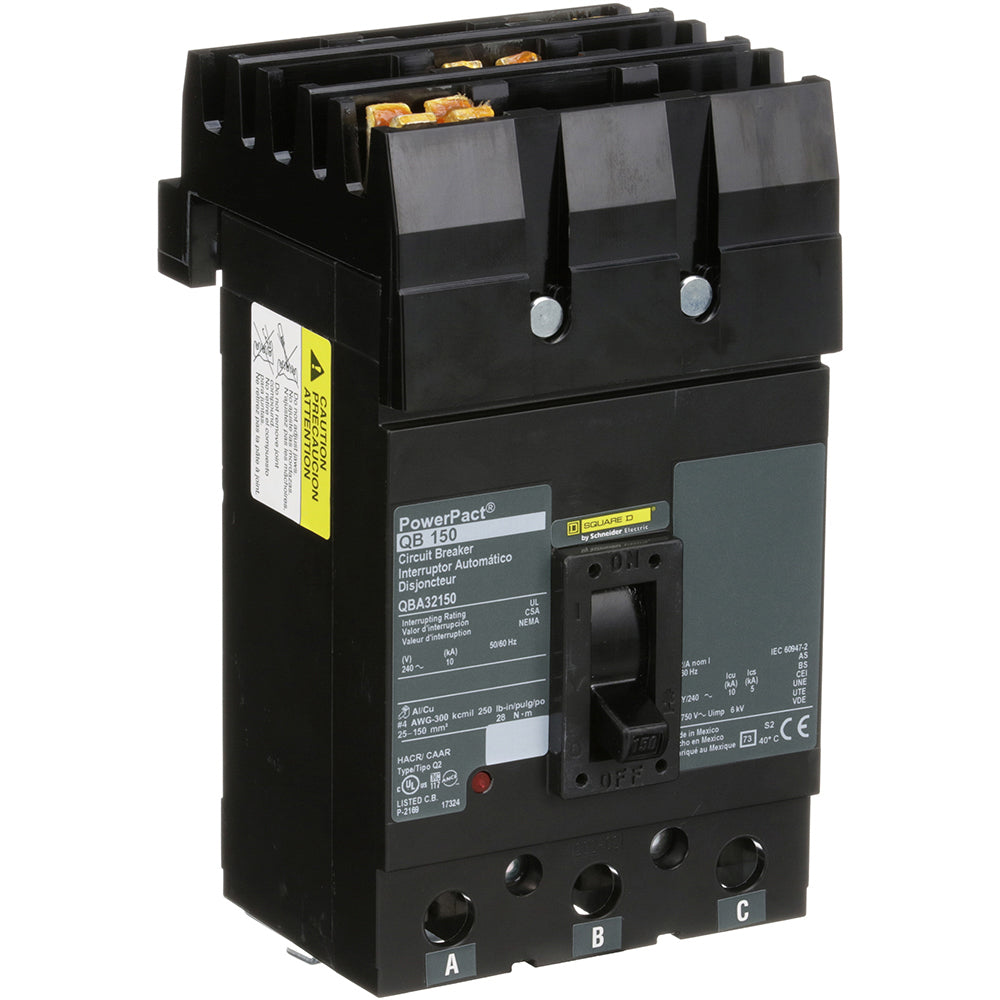

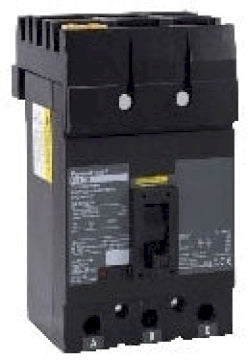

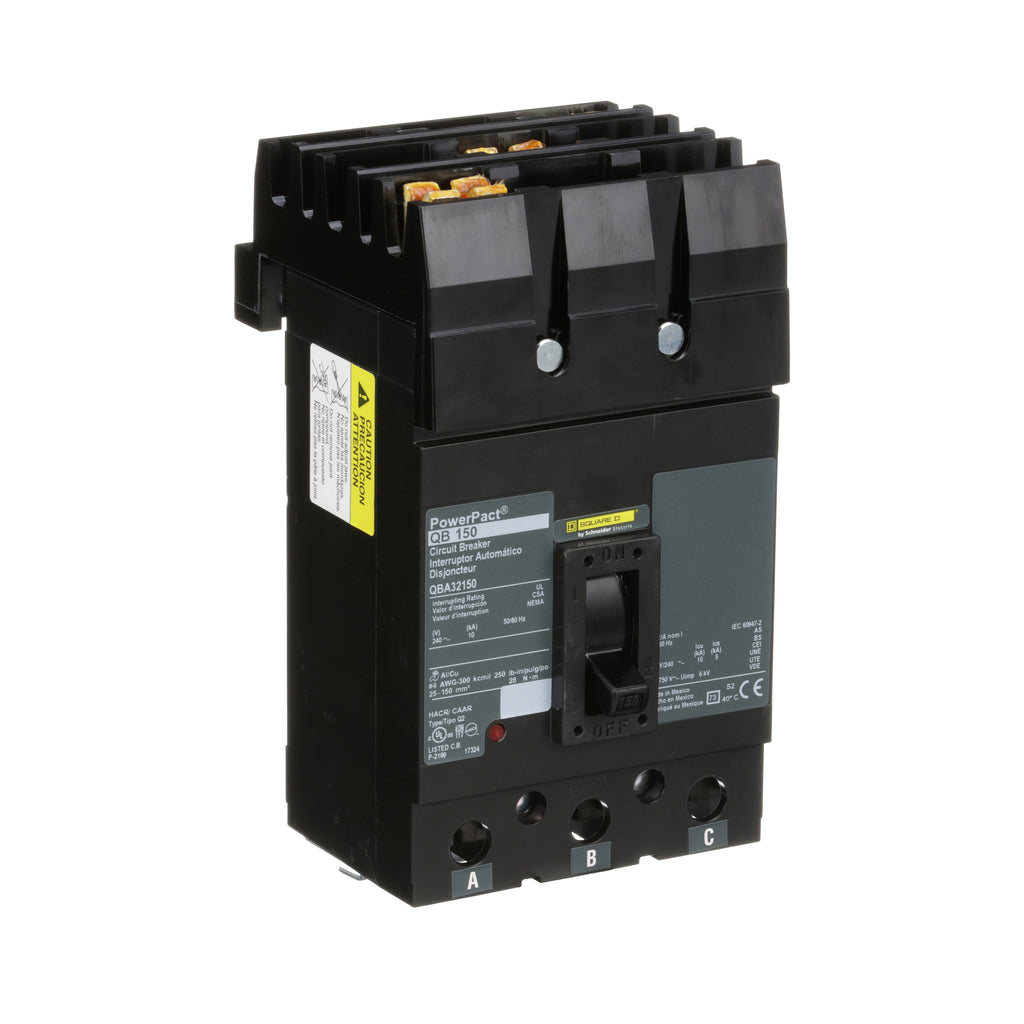

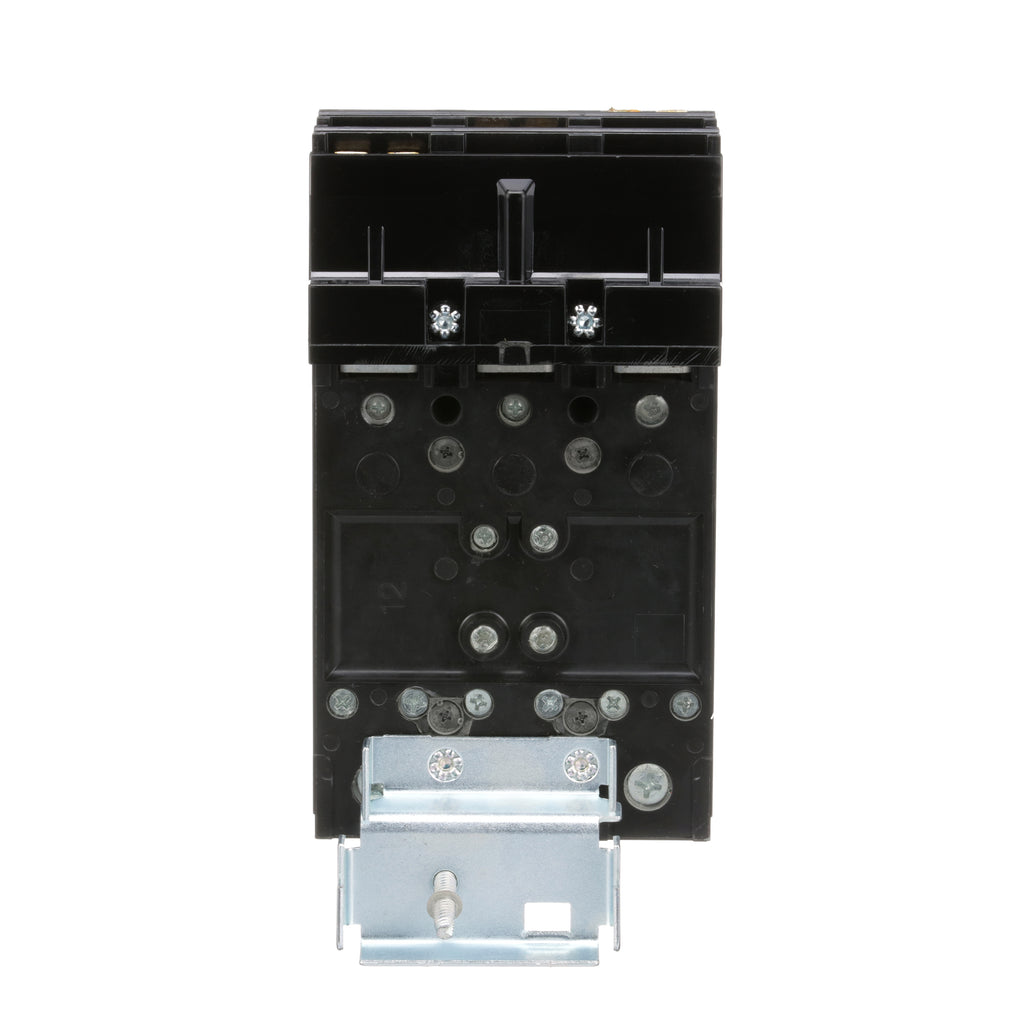

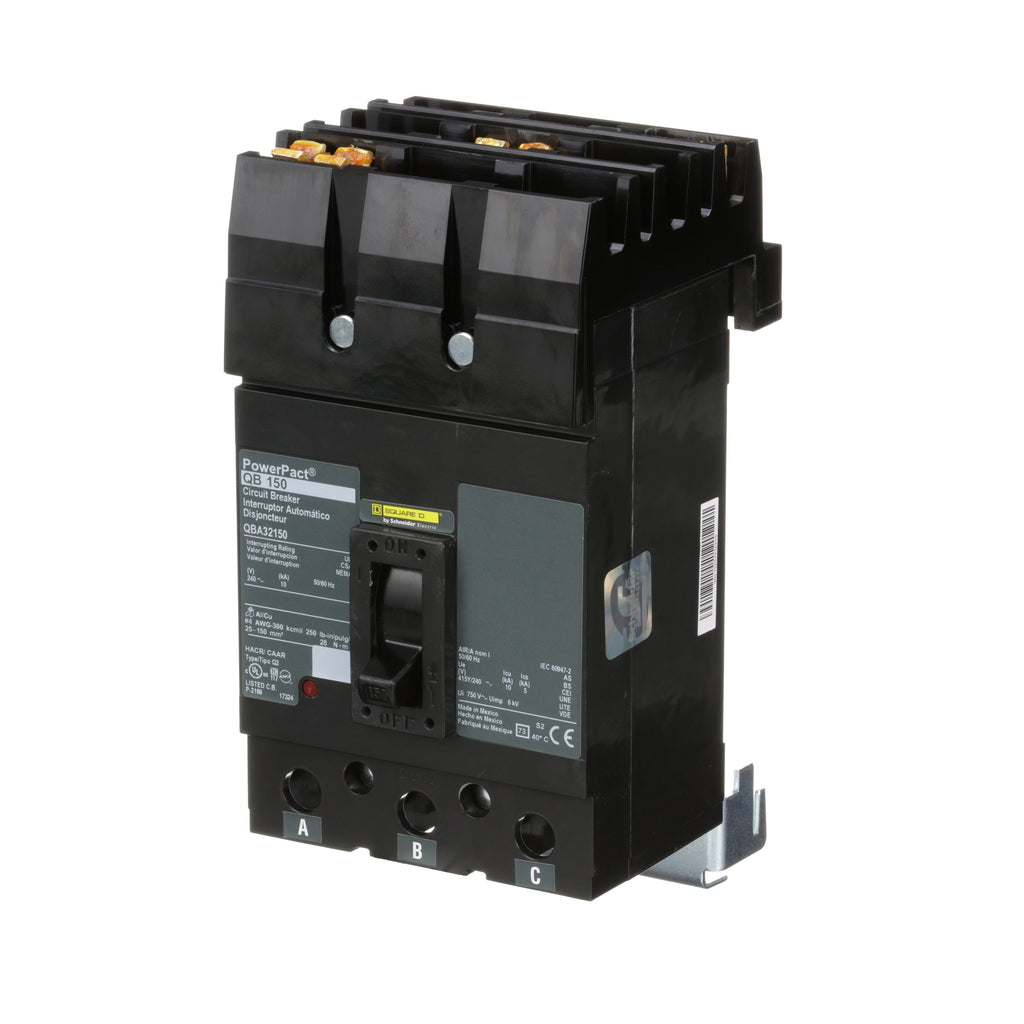

QBA32150 - Square D 150A 3 Pole Molded Case Circuit Breaker 240V Thermal Magnetic I-Line

QBA32150

QBA32150 is a Square D 3 pole molded case circuit breaker rated for 150 amps and 240 volts AC with thermal magnetic trip unit.

This circuit breaker features a 10kA interrupt rating at 240VAC, I-Line plug-in mounting style, and a trip range of 1200 to 2400 amps. It is UL 489 listed and CSA certified for reliable power distribution protection in industrial and commercial applications.

Key Specifications
• Amperage: 150A
• Voltage Rating: 240VAC
• Poles: 3
• Interrupt Rating: 10kA at 240VAC
• Trip Unit: Thermal Magnetic
• Mounting Type: I-Line Plug-In
• Series/Frame: QBA
• Certifications: UL 489, CSA
• Trip Range: 1200-2400A

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBA32150
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QBA
• Voltage : 240
• Amperage : 150
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901412656
• GTIN : 00785901412656
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 6.649
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
