QB1020CAF - Cutler Hammer 1 Pole 20A 70-160VAC Bolt-On Arc Fault Circuit Breaker, BAB Frame, 10kAIC, QBCAF Series, Thermal Magnetic Trip

QB1020CAF

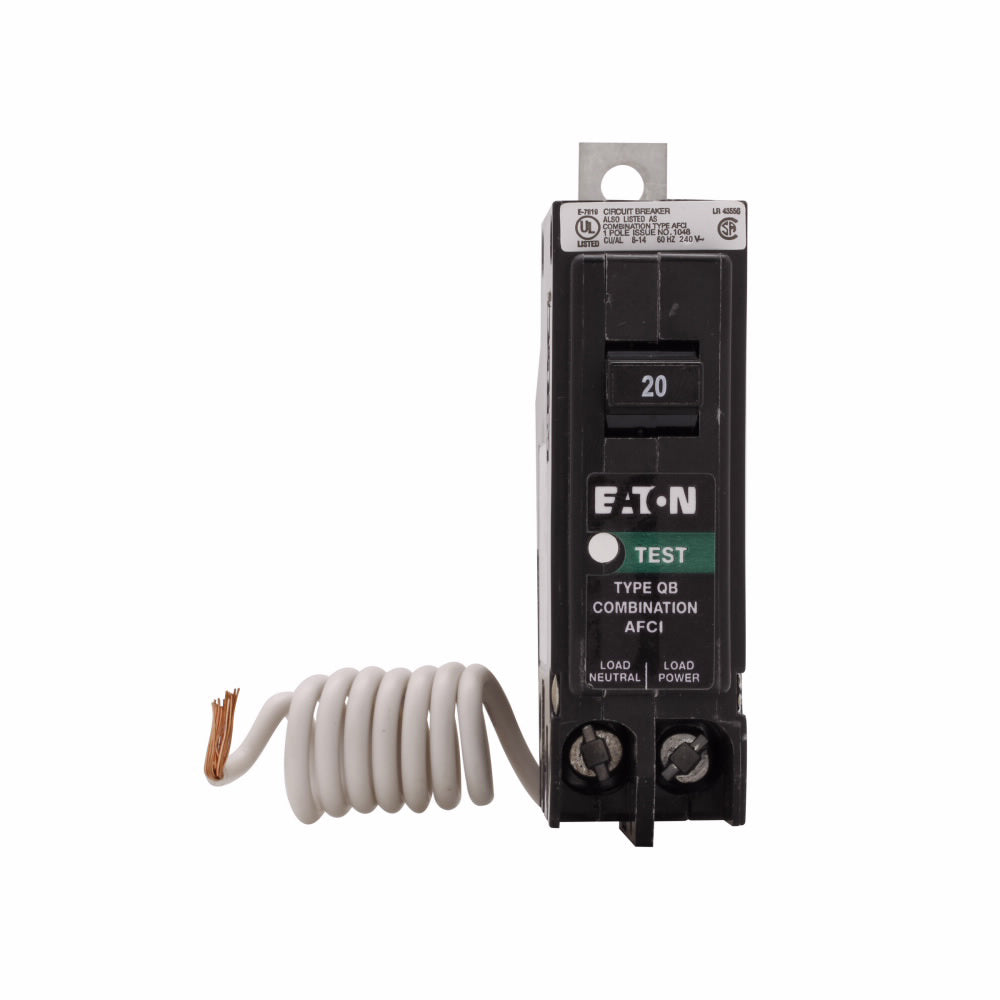

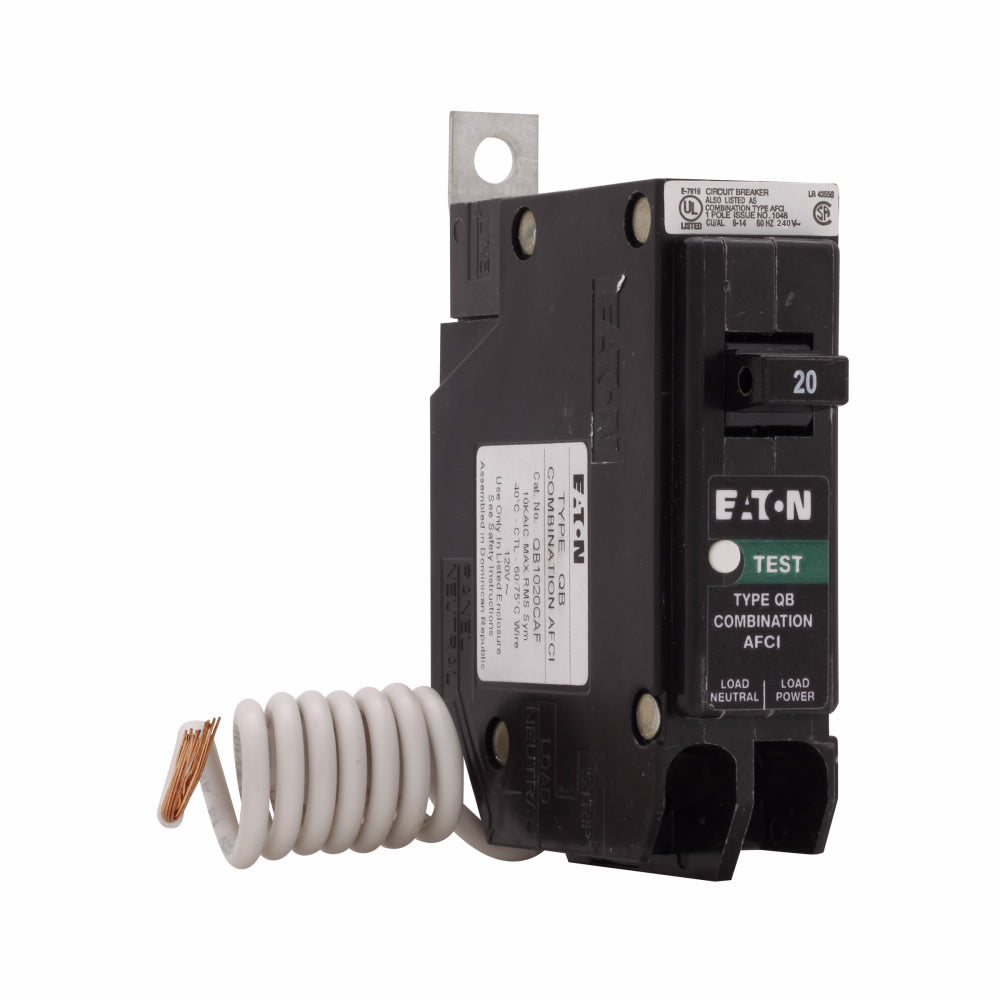

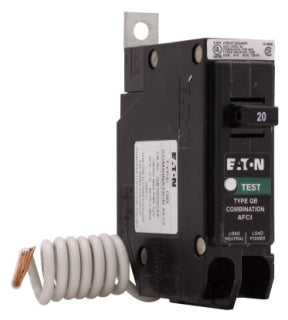

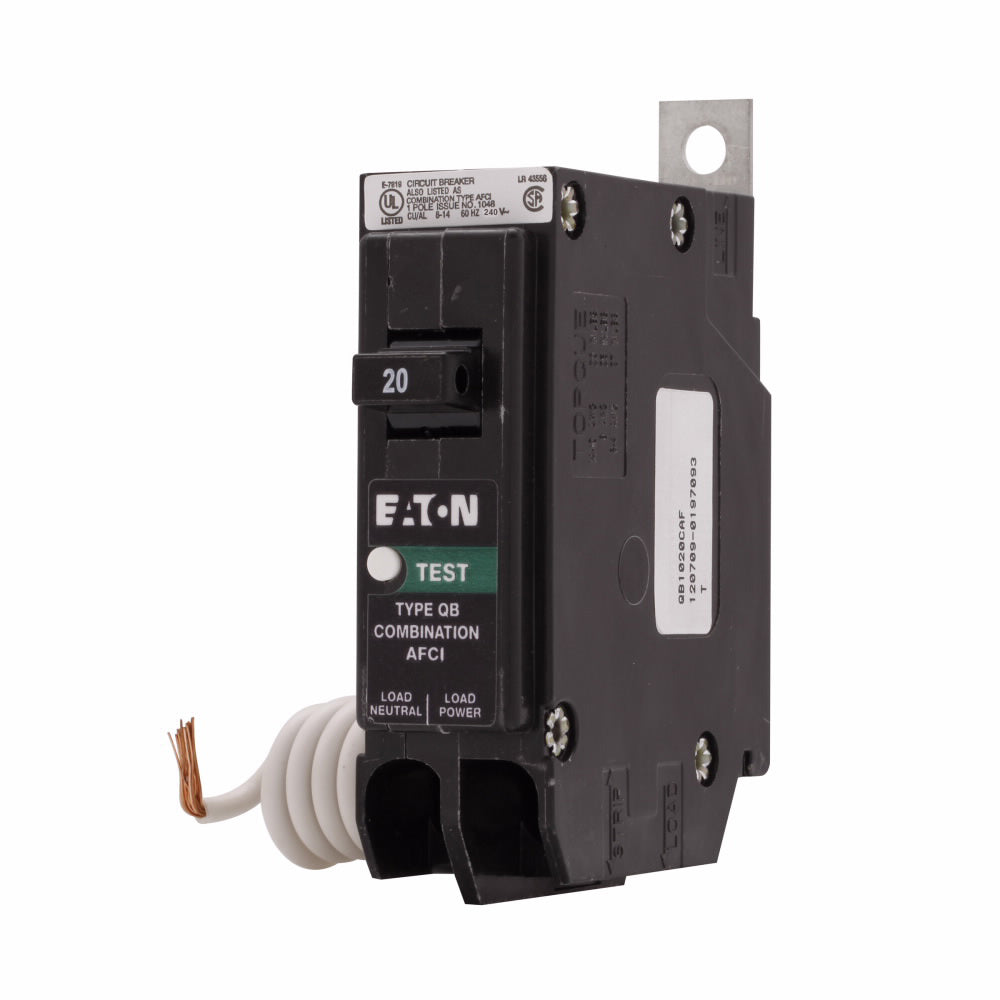

QB1020CAF is a Cutler Hammer 1 pole, 20A arc fault circuit breaker designed for reliable protection in commercial and industrial applications.

This bolt-on molded case circuit breaker features a thermal magnetic trip unit, providing both long-time and instantaneous overcurrent protection. It is part of the QBCAF series within the QUICKLAG family, offering robust performance with a 10kA interrupting rating. Suitable for use in environments with temperatures from -31 to 66°C, this breaker is engineered for safety and durability in demanding electrical systems.

Key Specifications
• Part Number: QB1020CAF
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 20A
• Voltage: 70-160VAC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10kAIC
• Series/Frame: QBCAF / BAB
• Trip Unit: Thermal Magnetic (Long-Time & Instantaneous)
• Certifications: Contact manufacturer
• Temperature Rating: -31 to 66°C
• Connection Type: Bolt-On
• Product Type: Arc Fault Circuit Breaker (AFCI)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QB1020CAF
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QUICKLAG
• Type : QBCAF
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786685514437
• GTIN : 00786685514437
• Country of Origin : Dominican Republic
• Dimensions : 6 in x 1 in x 3.5 in (Length/Depth x Height x Width)
• Weight : 0.426
