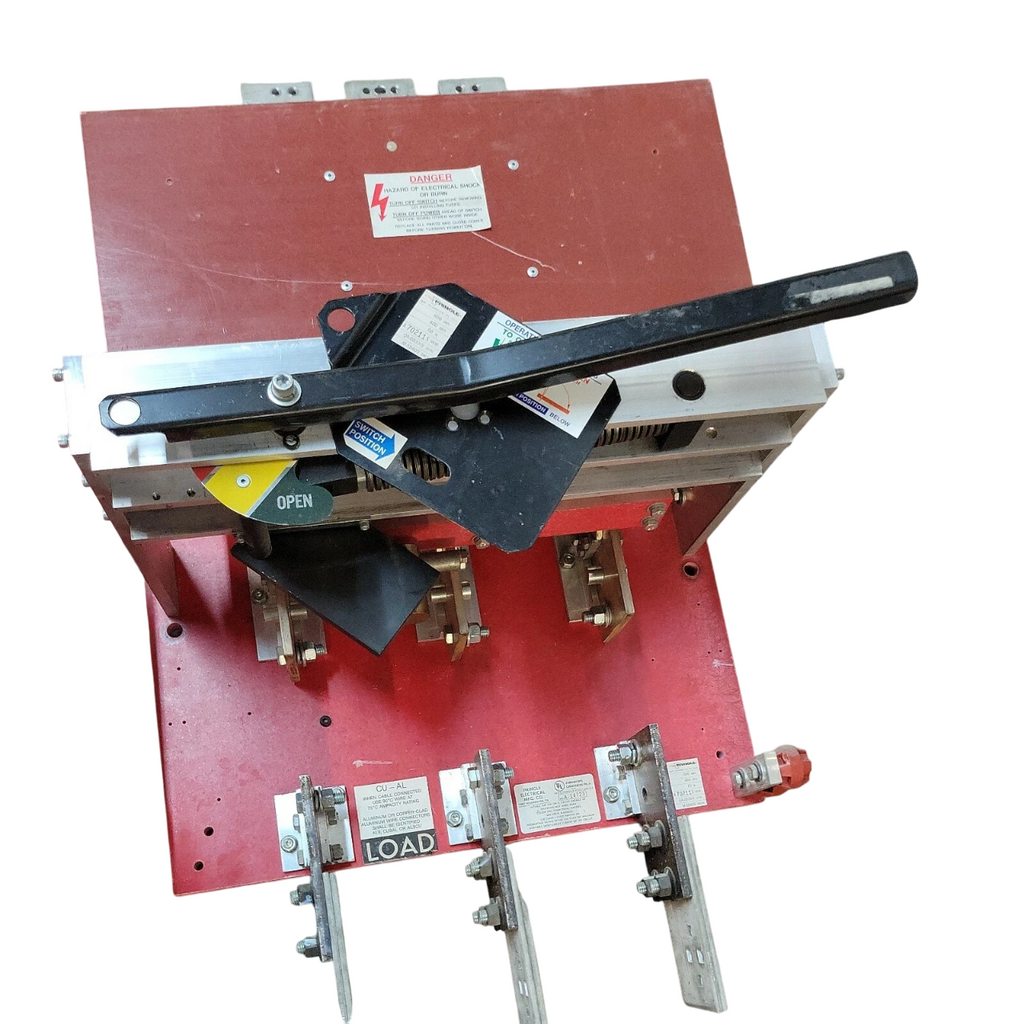

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Bolted Pressure
- Rated current
- 1600
- Voltage
- 480V
- Poles
- 3
- Phases
- 3
- Configuration
- Single
- Weight
- 150
Product description & additional details
QA-1633-CBC
QA-1633-CBC is a Eaton Pringle bolted pressure contact switch rated for 1600 amps and 480 volts with a 3-pole configuration and 120 volt shunt trip.This switch features a charge-before-close mechanism, top feed mounting, and is UL listed for safety and reliability. It supports fusible protection and is designed for high-current applications with a quick-positive switching action. The switch is suitable for 3-wire systems and includes a red back plate for easy identification. It meets NEC service entrance requirements and can be manually or electrically tripped.
- Amperage Rating: 1600A
- Voltage Rating: 480V
- Poles: 3
- Control Voltage: 120V (shunt trip)
- Mounting Type: Top feed
- Interrupt Rating: 200 kAIC with Class L fuses
- Switch Type: Electrical trip with charge-before-close mechanism
- Fuse Configuration: Fusible
- Certifications: UL Listed
- Phase: 3
- Wire Configuration: 3-wire
- Series/Frame: Pringle QA Series
Specifications
- Part Number: QA-1633-CBC
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Bolted Pressure
- Voltage : 480
- Amperage : 1600
- Phase : 3
- Poles : 3
- Configuration : Single
Product Data
- Weight : 150
