Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Disconnect
- Series
- DG Series
- Frame
- DG
- Rated current
- 200
- Voltage
- 240V
- Poles
- 2
- Phases
- 1
- Interrupting rating
- 100kA@240V
- Configuration
- Single
- Switch style
- Fusible
- Fuse class
- R
- NEMA rating
- NEMA 1
- Country of origin
- United States
Show all specifications (6 more)
- Compatible Frames
- THED
- UPC
- 782113213491
- GTIN
- 00785901062226
- Dimensions
- 11.25 in x 24.75 in x 16 in (Length/Depth x Height x Width)
- Weight
- 48
- Certification
- UL Listed,NEC 230.62 (C) Compliant Barrier
Product description & additional details
DG224NGK

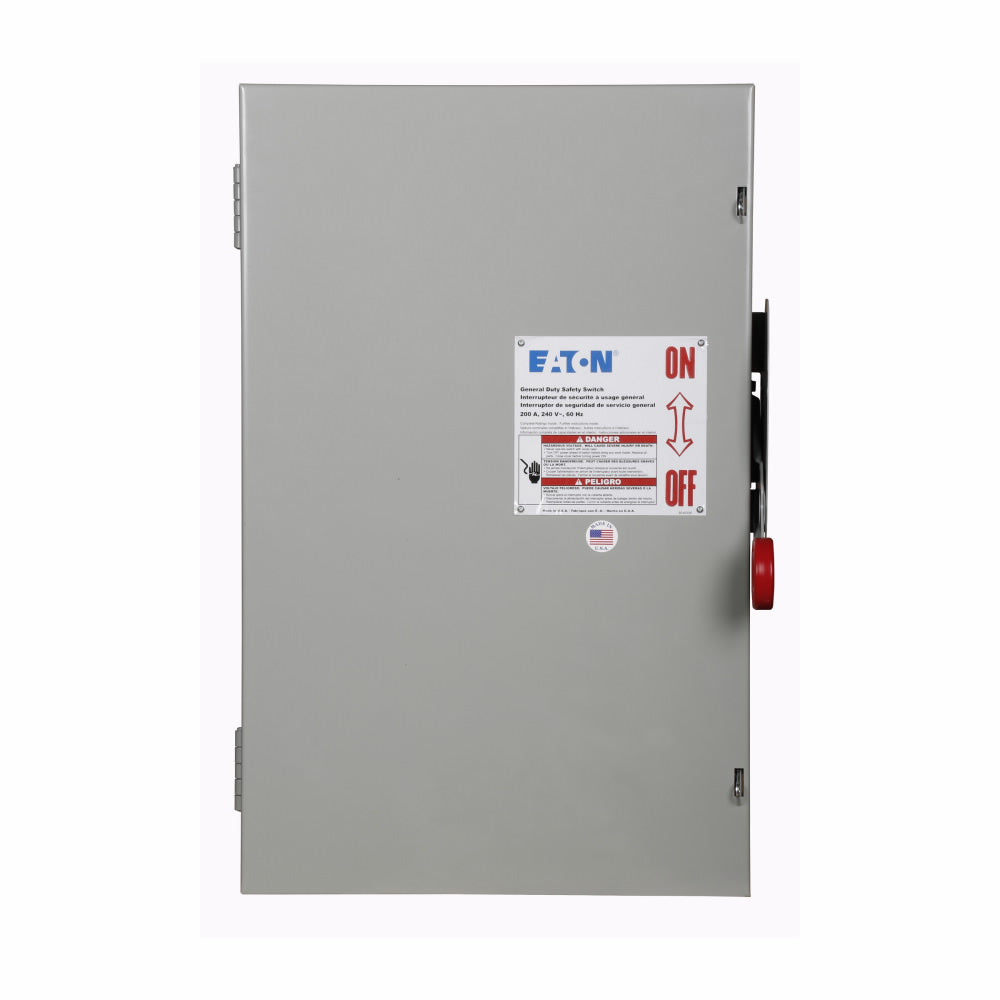

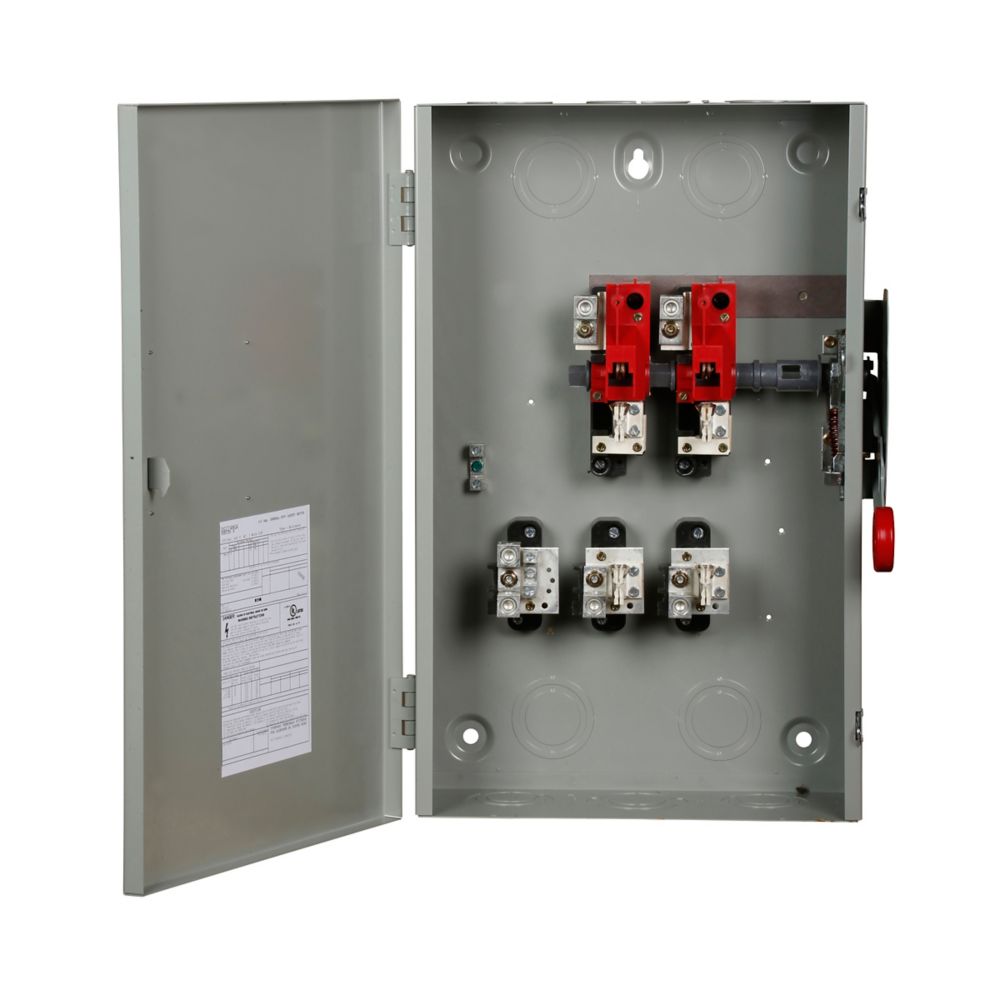

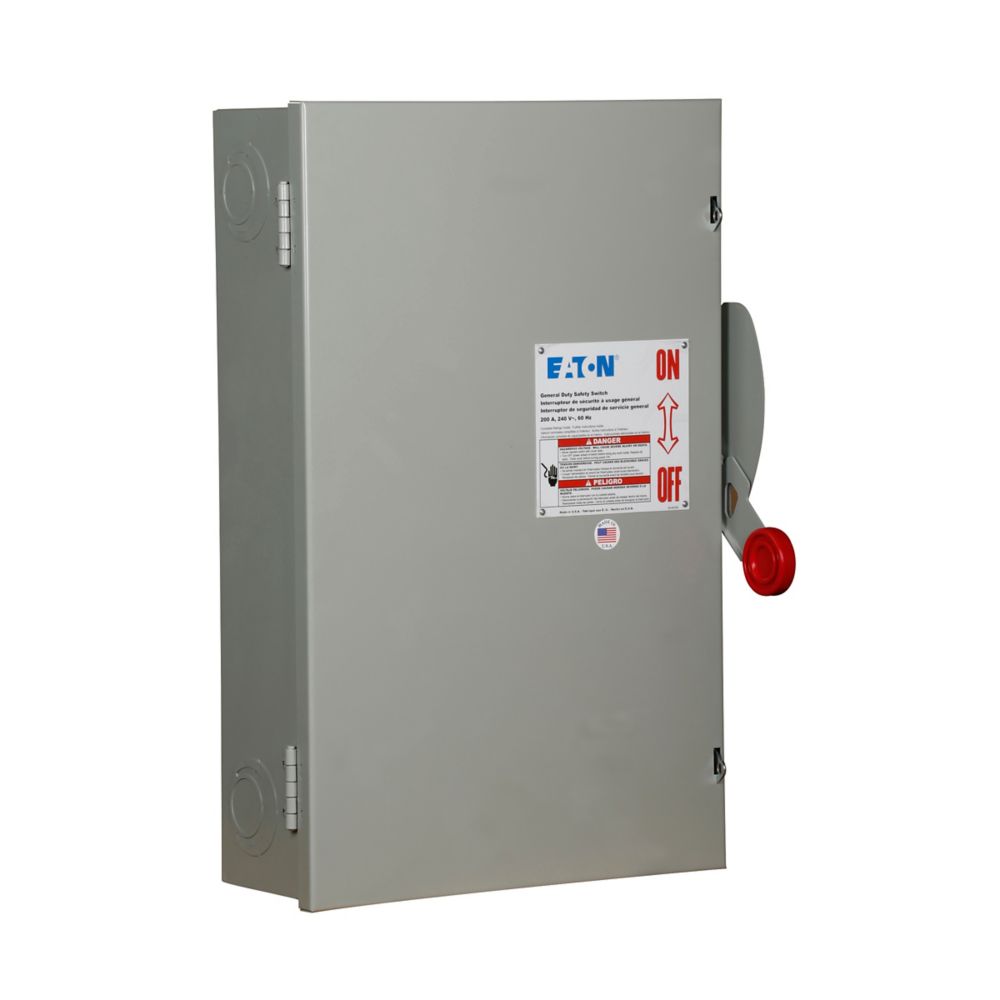

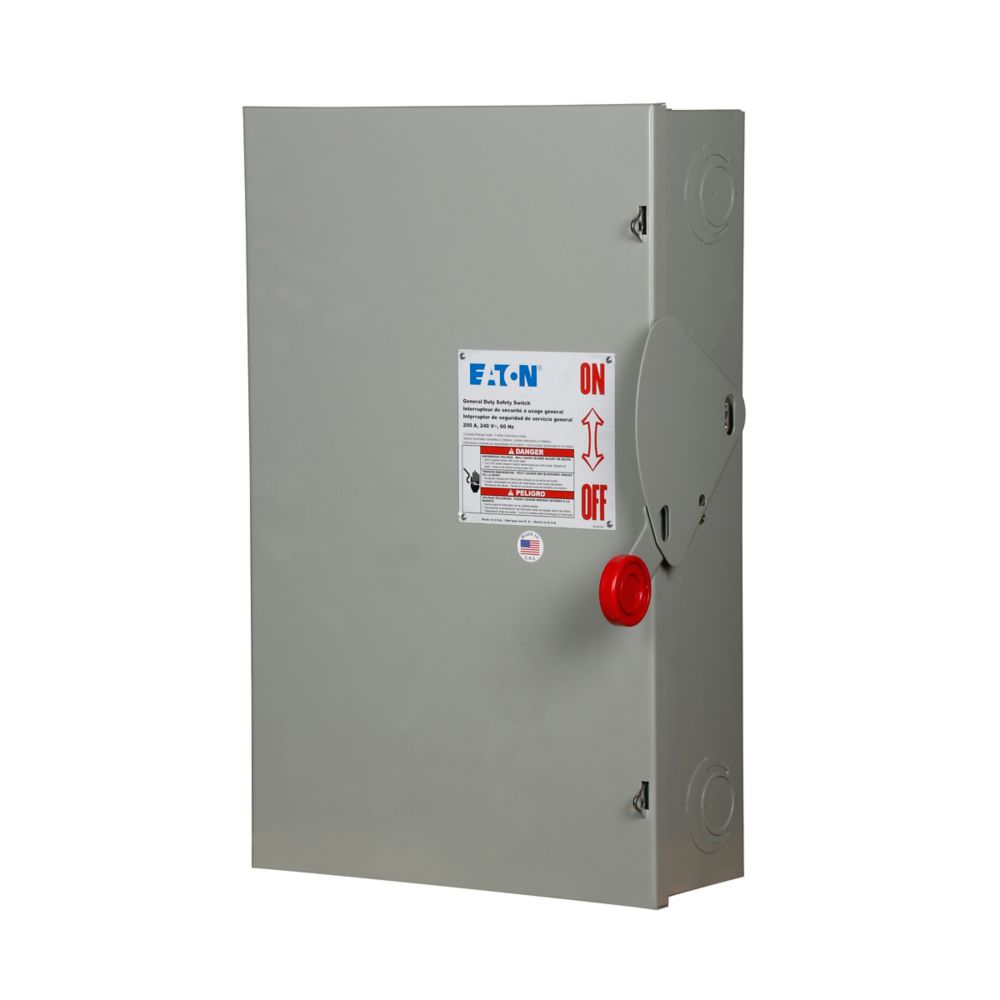

DG224NGK is a Cutler Hammer general duty fusible safety switch rated for 200 Amps and 240 Volts with 2 poles and a NEMA 1 painted steel enclosure.
This switch features a 2-pole, 3-wire configuration designed for general duty applications. It uses Class H cartridge fuses and provides fusible protection with a neutral. The enclosure is NEMA 1 rated, suitable for indoor use, and constructed from painted steel for durability. It has an interrupting rating of 100kAIC at 240V, supporting horsepower ratings up to 25 HP single phase and 50 HP three phase.
- Key Specifications
- Amperage: 200 Amp
- Voltage: 240 VAC
- Poles: 2 Pole
- Wires: 3 Wire
- Fuse Type: Class H Cartridge Fuses
- Interrupt Rating: 100kAIC at 240V
- Enclosure: NEMA 1 Painted Steel
- Mounting Type: Surface Mount
- Duty: General Duty
- Horsepower Rating: 15-25 HP (1 Phase), 50 HP (3 Phase)
- Neutral: Fusible with Neutral
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: DG224NGK
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Switch
- Item Subcategory : Disconnect
- Family : DG Series
- Type : DG
- Voltage : 240
- Amperage : 200
- Phase : 1
- Poles : 2
- AIC rating : 100kA@240V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
- Compatible Frames : THED
Product Data
- UPC : 782113213491
- GTIN : 00785901062226
- Country of Origin : United States
- Dimensions : 11.25 in x 24.75 in x 16 in (Length/Depth x Height x Width)
- Weight : 48
- Certification : UL Listed,NEC 230.62 (C) Compliant Barrier
