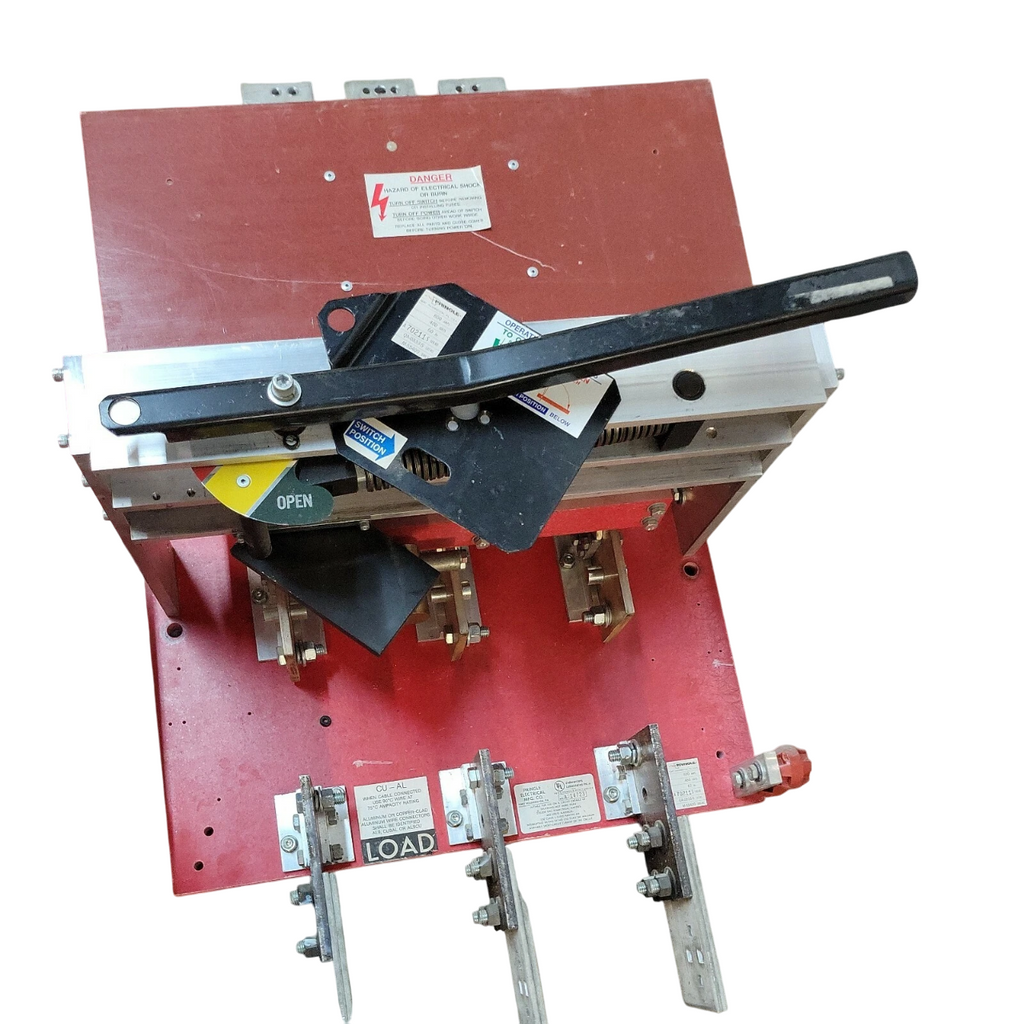

QA-1233-S Eaton, Cutler Hammer Bolted Pressure Switch - Essential Electric Supply
Hover to zoom
QA-1233-S Eaton, Cutler Hammer Bolted Pressure Switch - Essential Electric Supply

Reference images. Contact us for photos of the available unit.


Eaton

QA-1233-S

Eaton Pringle Bolted Pressure Switch 1200A 480V 3P Non-Fusible NEMA 1/3R/4/12

Current: 1200Poles: 3Voltage: 480V
Choose your condition
Compare New & Re-Certified

New
Original equipment manufacturer (OEM) products that have never been energized. New items may come in their original factory packaging or may be unused components removed from new panels. Packaging and cosmetic appearance can vary; contact our team for details or photos of the available unit.

Re-Certified
Original equipment manufacturer (OEM) products that have previously been energized and have been inspected, tested, and recertified for return to service. These items may show signs of prior use. Contact our team for details about the unit’s condition, testing documentation, and applicable warranty.

Ask about this part →
$3,900.20
Low inventory, please call (866) 377-3532 for stock check
View warranty coverage Return eligibility

Need it urgently? Call to confirm shipping options

Buying for a project? Request a quote

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Product Description & Specifications

Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.

Manufacturer
Eaton
Brand
Cutler Hammer
Sub-Category
Bolted Pressure
Rated current
1200
Voltage
480V
Poles
3
Interrupting rating
200kA@480V
Configuration
Single
Switch style
Fusible
Fuse class
L
NEMA rating
3R
Weight
150
Product description & additional details

QA-1233-S


QA-1233-S is a manually operated Eaton Pringle bolted pressure switch designed for high-current industrial applications. This non-fusible switch provides reliable circuit isolation and load break capability in demanding environments. The Eaton Pringle QA-1233-S switch features a robust 1200A frame, rated for 480V AC, and is configured as a three-pole, three-wire device. It offers a 200 kA short-circuit withstand rating and is suitable for top or bottom feed installations. The switch is constructed with a NEMA 1/3R/4/12 enclosure for indoor or outdoor mounting, ensuring durability and protection in various conditions.
  • Amperage: 1200A
  • Voltage: 480V AC
  • Poles: 3
  • Mounting Type: Top or Bottom Feed
  • Interrupt Rating: 200 kA
  • Series/Frame: Pringle QA
  • Trip Unit: Manual Operation
  • Enclosure: NEMA 1/3R/4/12
  • Application: Non-Fusible
  • Wire Size: #2 to 1000 kcmil
  • Standards: UL 977, CSA C22.2 No.4
  • Load Break: 100% Rated
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: QA-1233-S
  • Manufacturer : Eaton
  • Brand : Cutler Hammer
  • Category : Switch
  • Item Subcategory : Bolted Pressure
  • Voltage : 480
  • Amperage : 1200
  • Poles : 3
  • AIC rating : 200kA@480V
  • Fuse Class : L
  • Configuration : Single
  • Switch Style : Fusible
  • Nema Rating : 3R

Product Data

  • Weight : 150

Return eligibility: what to know before ordering

Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.

Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.

Read the complete return and warranty policy ↗

Warranty supplied by Essential Electric

Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.

Review coverage, exclusions, and the claim process ↗
