PQ4620R - Schneider Electric 200A 600V Fusible Bus Plug I-Line 3 Phase 4 Pole

PQ4620R

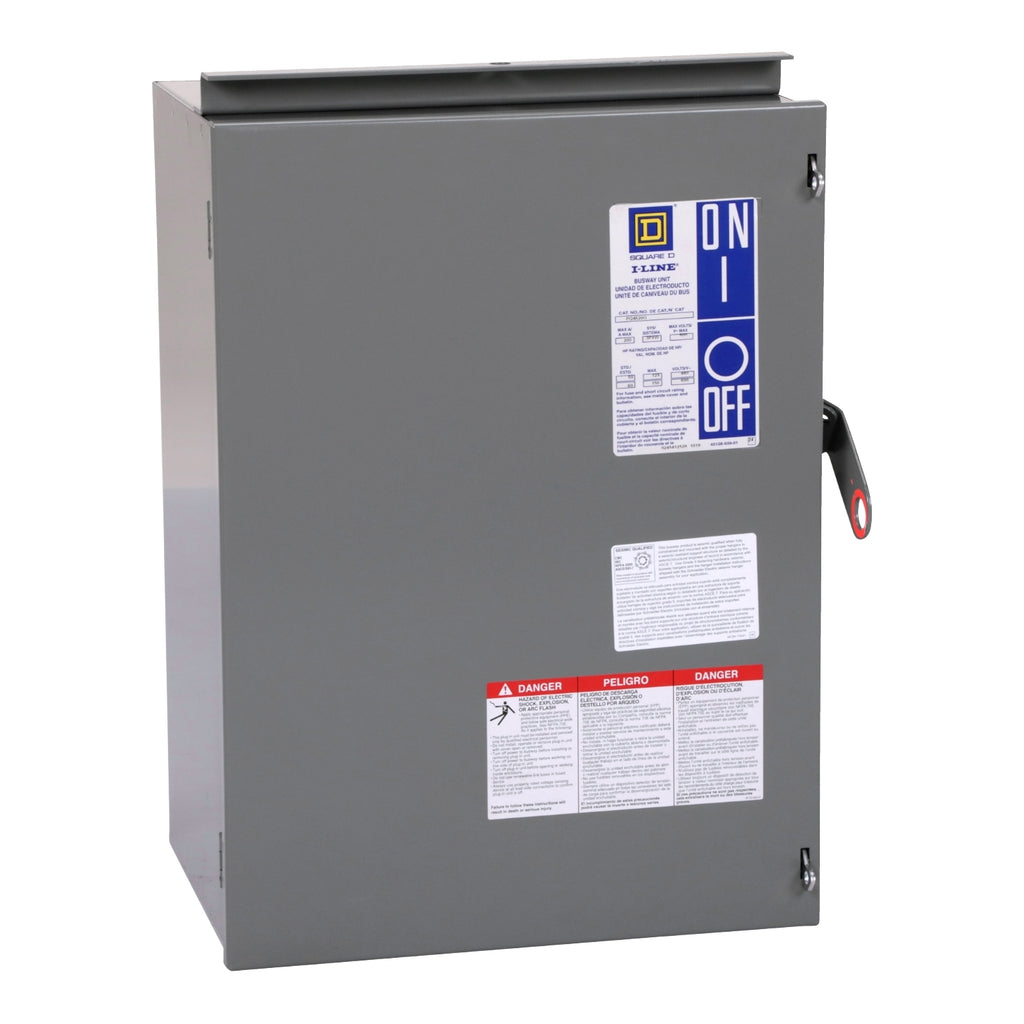

PQ4620R is a fusible bus plug from Schneider Electric's I-Line busway system, rated for 200 Amps at 600 Volts in a 3 phase, 4 wire configuration. This plug-in unit is designed for use with I-Line and I-Line II busway systems to provide flexible power distribution in commercial and industrial applications. The compact, totally enclosed design features sandwich-type construction for superior voltage drop characteristics and easy installation with up to 75% savings in installation time compared to traditional wiring methods.

• Amperage Rating: 200 Amps
• Voltage: 600 VAC
• Phase: 3 Phase
• Wires: 4 Wire with Ground
• Type: Fusible Plug-In Unit
• Fuse Class: H, K, R
• Interrupt Rating: 200 kA at 480V
• Series: I-Line Busway
• Construction: Sandwich-Type
• Finish: Polyester Powder Coat Paint
• Contact Plating: Plated for Low Surface Resistance

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PQ4620R
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : I-Line
• Type : PQ
• Voltage : 600
• Amperage : 200
• Phase : 3
• AIC rating : 200kA@480V
• Fuse Class : H, K, J
• Wire : 4

Product Data

• UPC : 785901330400
• Country of Origin : Mexico
• Dimensions : 22.5 in (571 mm) x 17.3 in (440 mm) x 14.4 in (366 mm) (Height x Width x Depth)
• Weight : 68.251
• Certification : CSA C22.2 NO 27-UL LISTED FILE E22182
