PQ4603GRA - Schneider Electric 30A 600V 4-Pole Fusible Bus Plug I-Line Series

PQ4603GRA

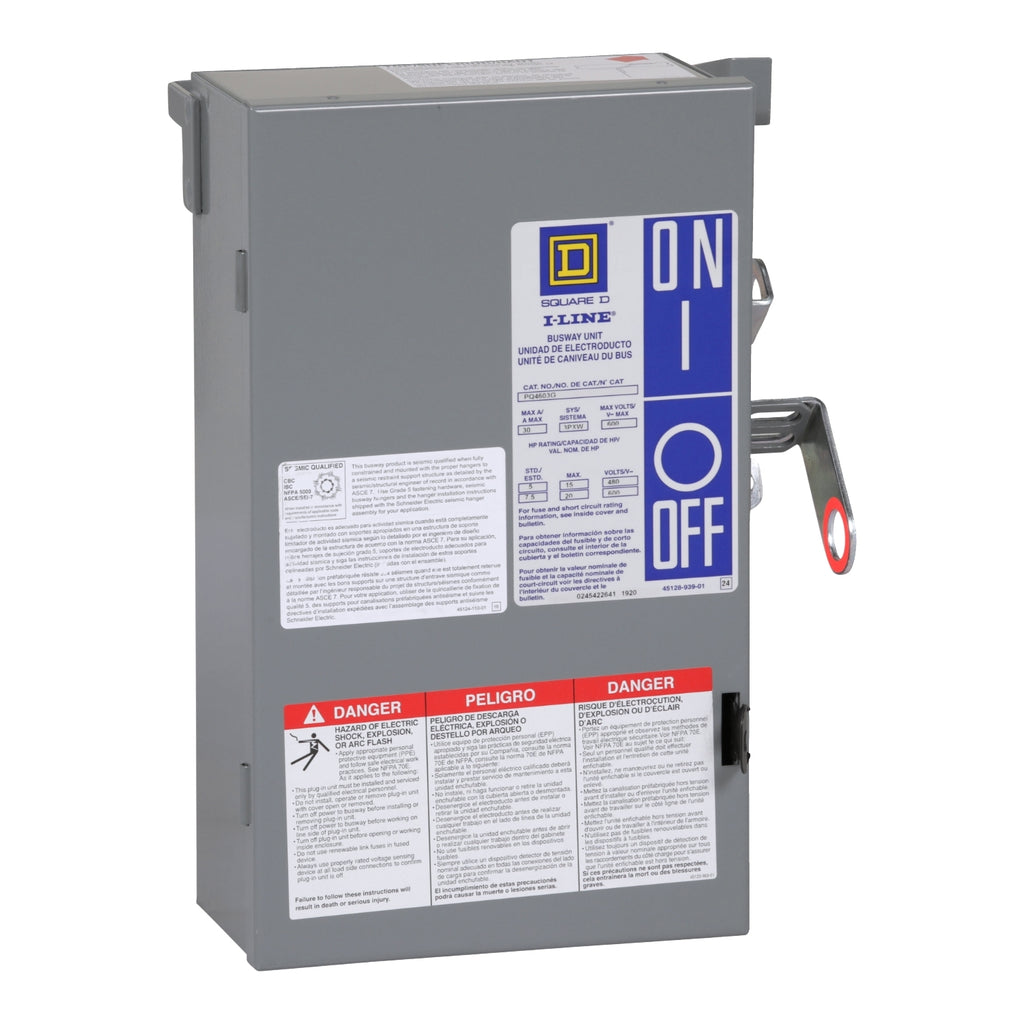

PQ4603GRA is a 30 Amp, 600 Volt fusible bus plug designed for use with Schneider Electric I-Line busway systems.

This bus plug features a 4-pole configuration suitable for 3-phase, 4-wire applications with integral ground. It is rated for 30 Amps and compatible with class H fuses. The unit supports a 200kA interrupt rating at 480V and mounts via a plug-in design for easy installation. It is UL and CSA certified, ensuring compliance with industry safety standards.

• Amperage: 30A
• Voltage: 600V
• Poles: 4 (3 phase + ground)
• Fusible: Yes, Class H fuse compatible
• Interrupt Rating: 200kA at 480V
• Series/Frame: I-Line
• Mounting Type: Plug-in
• Certifications: UL, CSA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PQ4603GRA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : I-Line
• Type : PQ
• Voltage : 600
• Amperage : 30
• Phase : 3
• AIC rating : 200kA@480V
• Fuse Class : H, K, J
• Wire : 4

Product Data

• UPC : 785901272069
• Dimensions : 14.9 in (379 mm) x 10.5 in (266 mm) x 4.6 in (118 mm) (Height x Width x Depth)
• Weight : 17.58
• Certification : UL LISTED FILE E22182-CSA C22.2 NO 27
