Description
PQ4603GJ

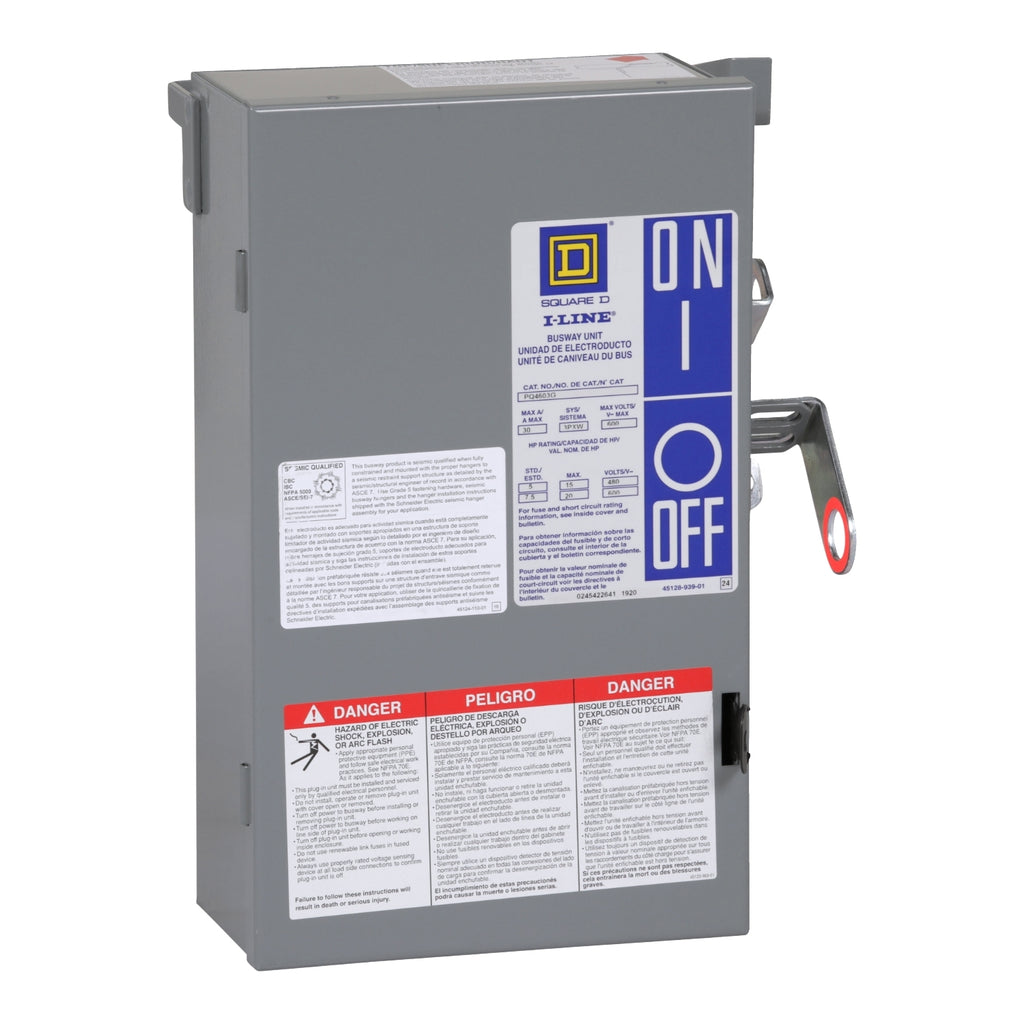

PQ4603GJ is a 3-phase, 4-wire fusible bus plug rated for 30 amps and 600 volts from Square D's I-Line series.The Square D PQ4603GJ bus plug provides reliable overcurrent protection with fusible design, compatible with I-Line plug-in bus duct systems. It features a 4-pole configuration suitable for 3-phase power distribution and is UL Listed and CSA Certified for safety and performance.
- Amperage: 30 Amps
- Voltage: 600 Volts
- Poles: 4 (3-phase plus neutral)
- Wire: 4-wire configuration
- Series: I-Line PQ
- Fuse Type: Fusible with Class H fuses
- Mounting Type: Plug-in busway
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: PQ4603GJ
- Manufacturer : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 600
- Amperage : 30
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : J
- Wire : 4
Product Data
- Weight : 30
