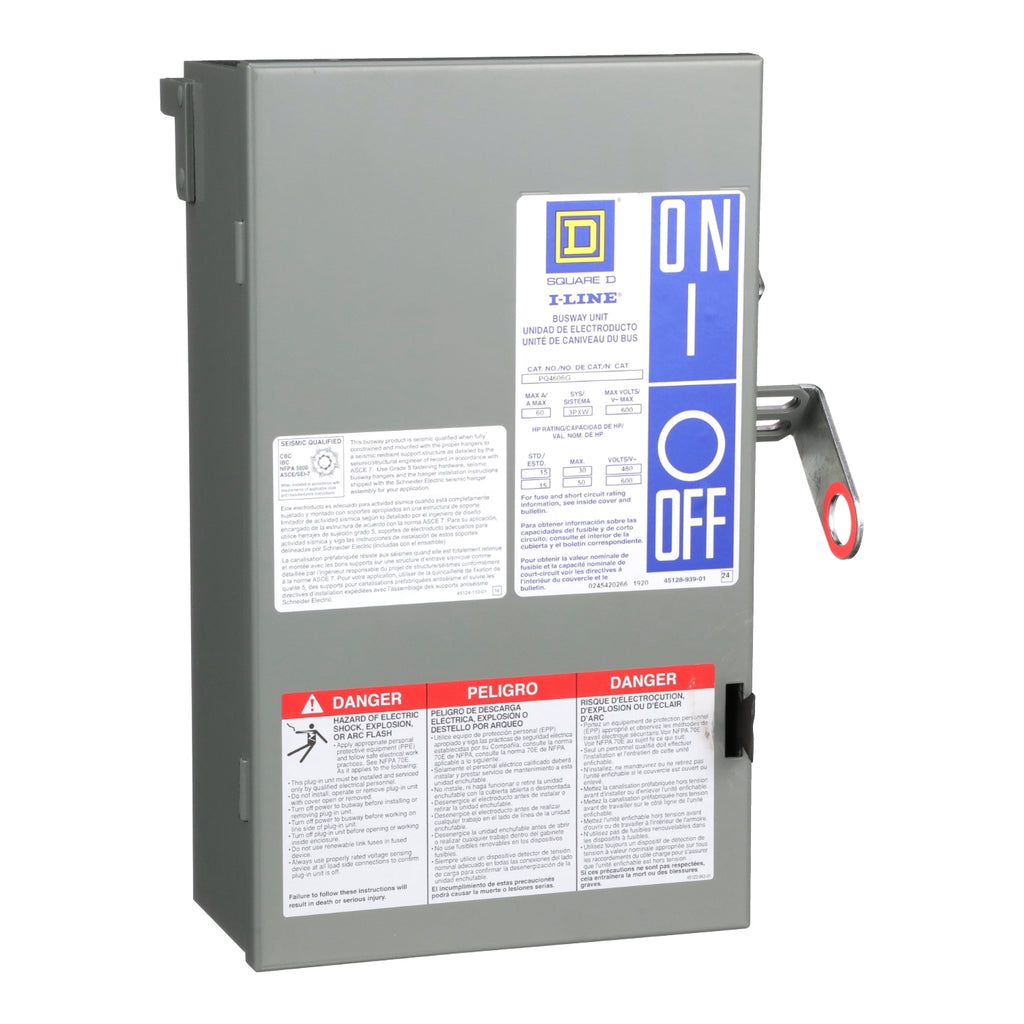

PQ4606R - Square D 60A 600V 4-Pole Fusible I-Line Bus Plug

PQ4606R

PQ4606R is a Square D fusible bus plug designed for 3-phase power distribution with 4-wire configuration and a 60 Amp rating.

This bus plug is part of the I-Line series and supports 600 Volt systems. It features a fusible design compatible with UL class H, K, and R fuses, providing reliable protection and disconnect capability. The unit is rated for 10 kA interrupt capacity with H or K class fuses and 200 kA with J class fuses. It is suitable for use with I-Line Style I and II busway systems and supports aluminum and copper busway conductors.

Key Specifications
• Amperage: 60 Amps
• Voltage: 600 Volts
• Poles: 4 (3 phase + neutral)
• Wiring: 4-wire configuration
• Type: Fusible Bus Plug
• Series: I-Line
• Interrupt Rating: 10 kA (H or K fuses), 200 kA (J fuses)
• Mounting: Plug-in for I-Line busway systems
• Compatible Fuse Classes: H, K, R

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PQ4606R
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : I-Line
• Type : PQ
• Voltage : 600
• Amperage : 60
• Phase : 3
• AIC rating : 200kA@480V
• Fuse Class : H, K, J
• Wire : 4

Product Data

• UPC : 785901087281
• Country of Origin : Mexico
• Dimensions : 14.9 in (379 mm) x 10.5 in (266 mm) x 4.6 in (118 mm) (Height x Width x Depth)
• Weight : 19.141
• Certification : CSA C22.2 NO 27-UL LISTED FILE E22182
