Description

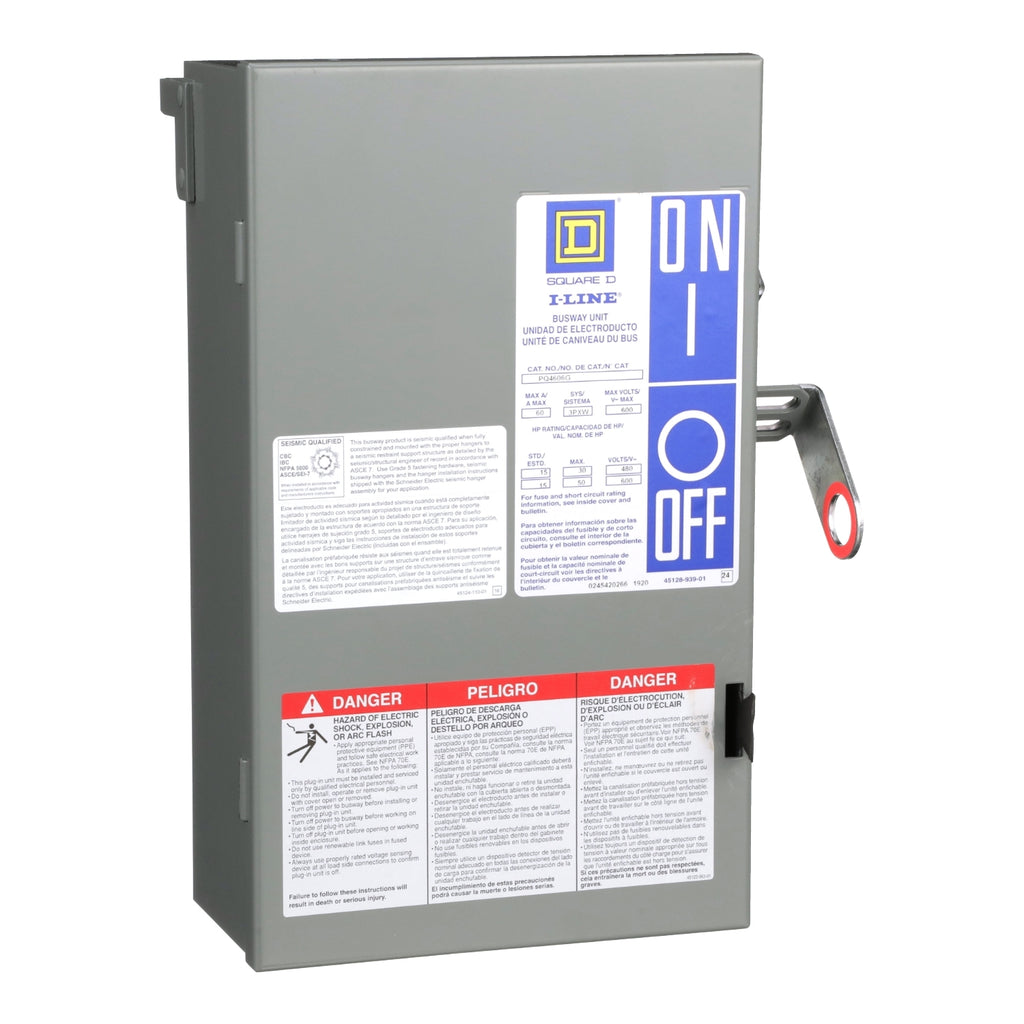

PQ4606GGSC
PQ4606GGSC is a 60A, 4-pole fusible bus plug designed for use with Square D I-Line II busway systems. This plug-in unit provides reliable circuit protection for industrial and commercial power distribution applications. The PQ4606GGSC features a hook-swing mounting design for easy installation and removal. It is rated for 600V AC and utilizes Class H fuses for effective overcurrent protection. The unit is compatible with both aluminum and copper busway systems and is engineered for high interrupt capacity, ensuring safe operation in demanding environments.
- 60A current rating
- 600V AC voltage rating
- 4-pole configuration
- Hook-swing (plug-in) mounting type
- Interrupt rating: 200kA @ 480V
- Series/Frame: PQ, I-Line II
- Fusible trip unit (Class H fuse)
- Compatible with I-Line Style I & II busway systems
Specifications
- Part Number: PQ4606GGSC
- Manufacturer : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 600
- Amperage : 60
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : H, K, J, R
- Wire : 4
Product Data
- UPC : 785901733744
- GTIN : 00785901733744
- Country of Origin : United States
- Dimensions : Height 14.92 in (379 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 0.01
- Certification : UL LISTED FILE E22182-CSA C22.2 NO 27
