Description
PQ4606GGS

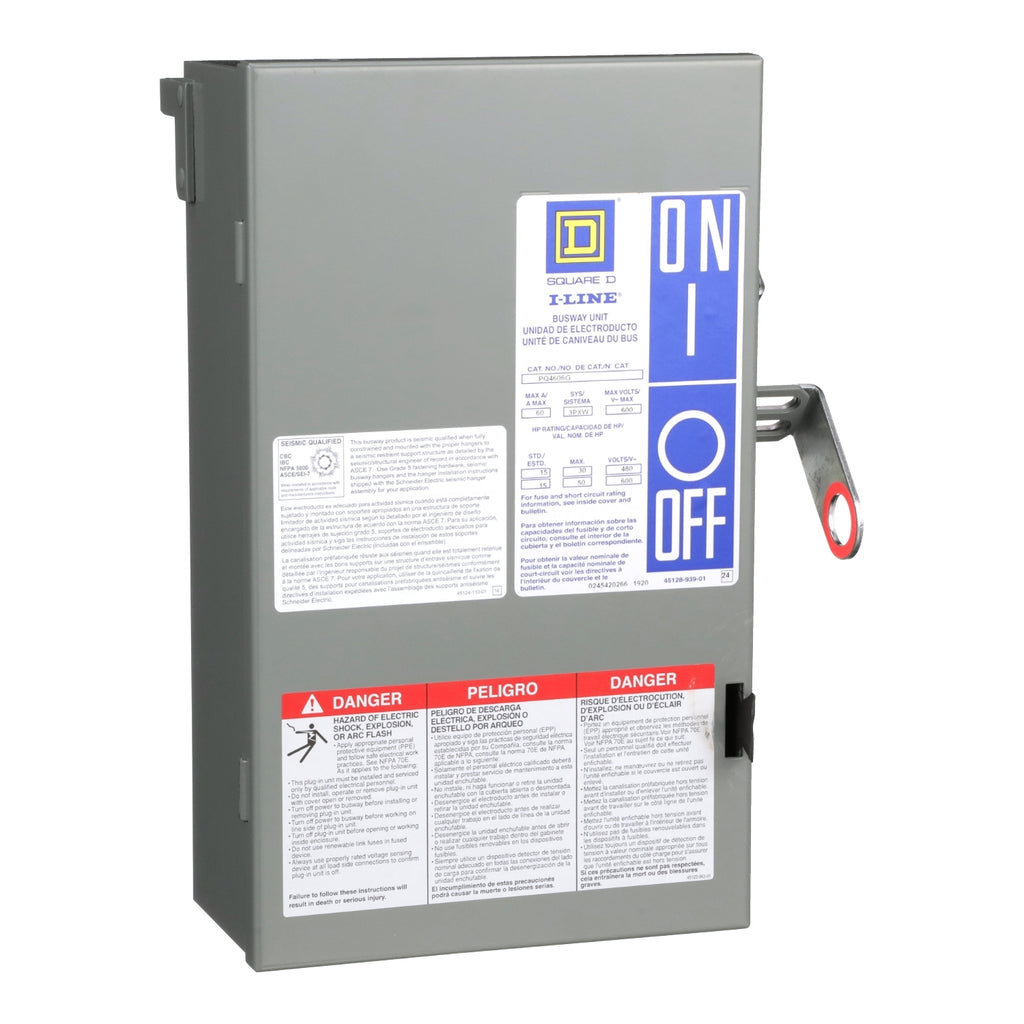

PQ4606GGS is a Square D fusible bus plug designed for use with I-Line busway systems. This unit provides reliable circuit protection and easy installation in commercial and industrial power distribution applications.This 4-pole fusible bus plug features a 60A current rating and a maximum voltage of 600V. It is compatible with both aluminum and copper I-Line busway systems and is engineered for safe, efficient power distribution. The unit includes integral grounding and is suitable for 3-phase applications.
- 60A current rating
- 600V maximum voltage
- 4-pole configuration
- 3-phase, 3-wire with integral ground
- Compatible with I-Line busway systems
- UL Listed and CSA Certified
- Class H fuse type
- Mounts directly to busway
Specifications
- Part Number: PQ4606GGS
- Manufacturer : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 600
- Amperage : 60
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : H,K,R
- Wire : 4
Product Data
- Weight : 30
