Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Bus Plug Part
Description
PQ4206G

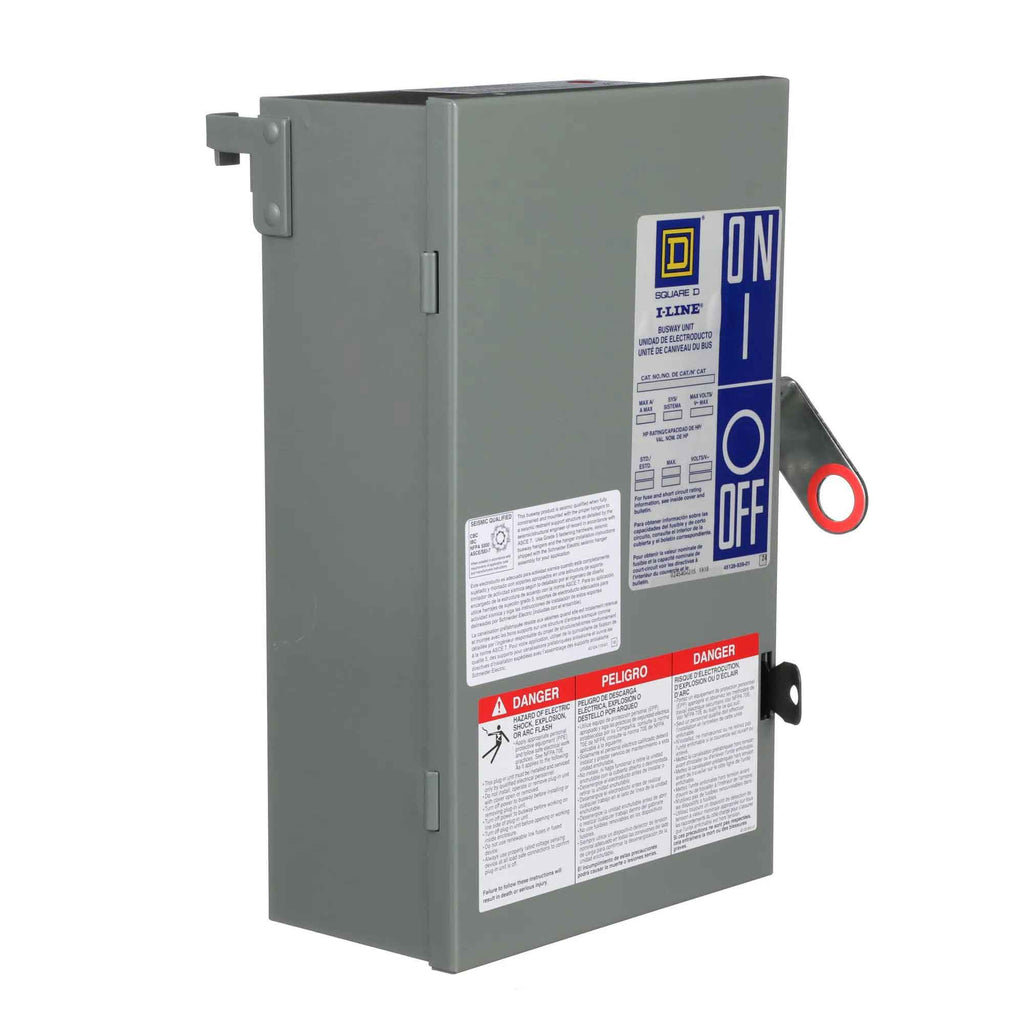

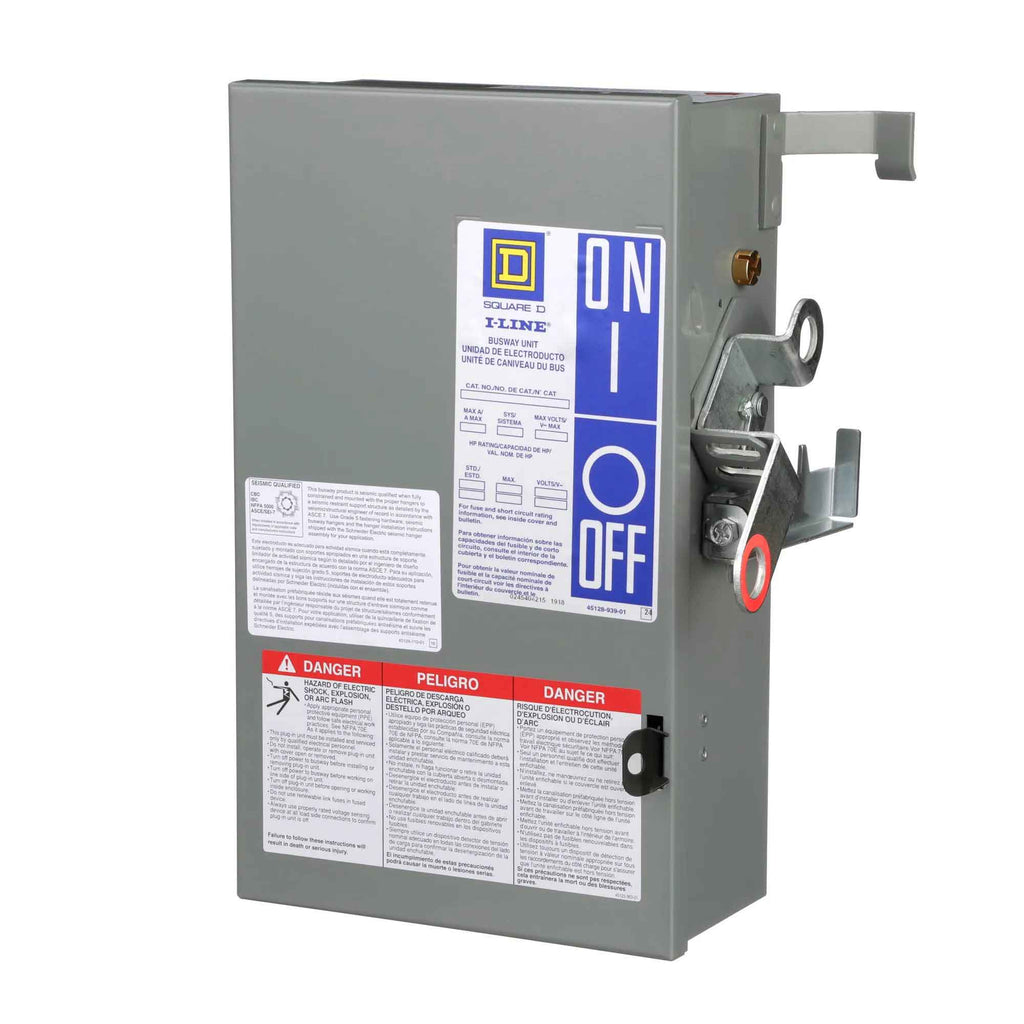

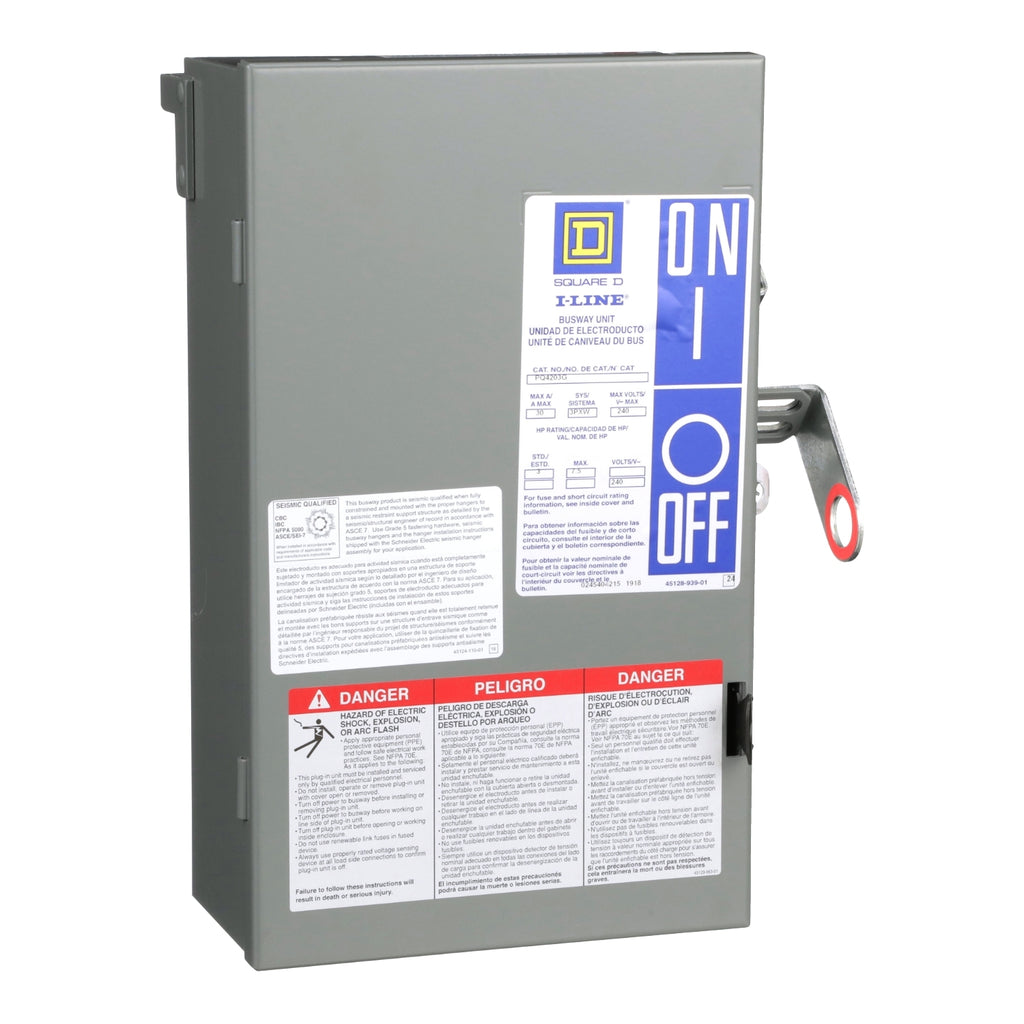

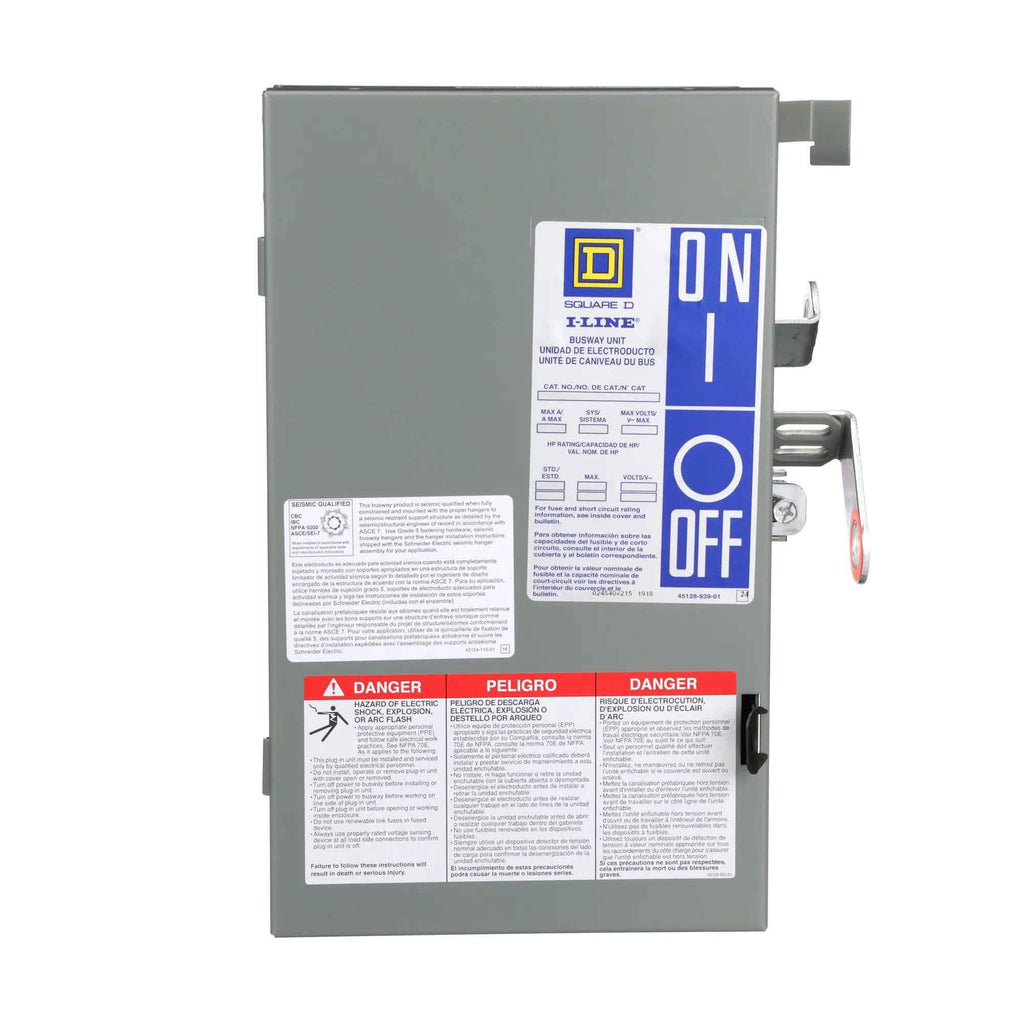

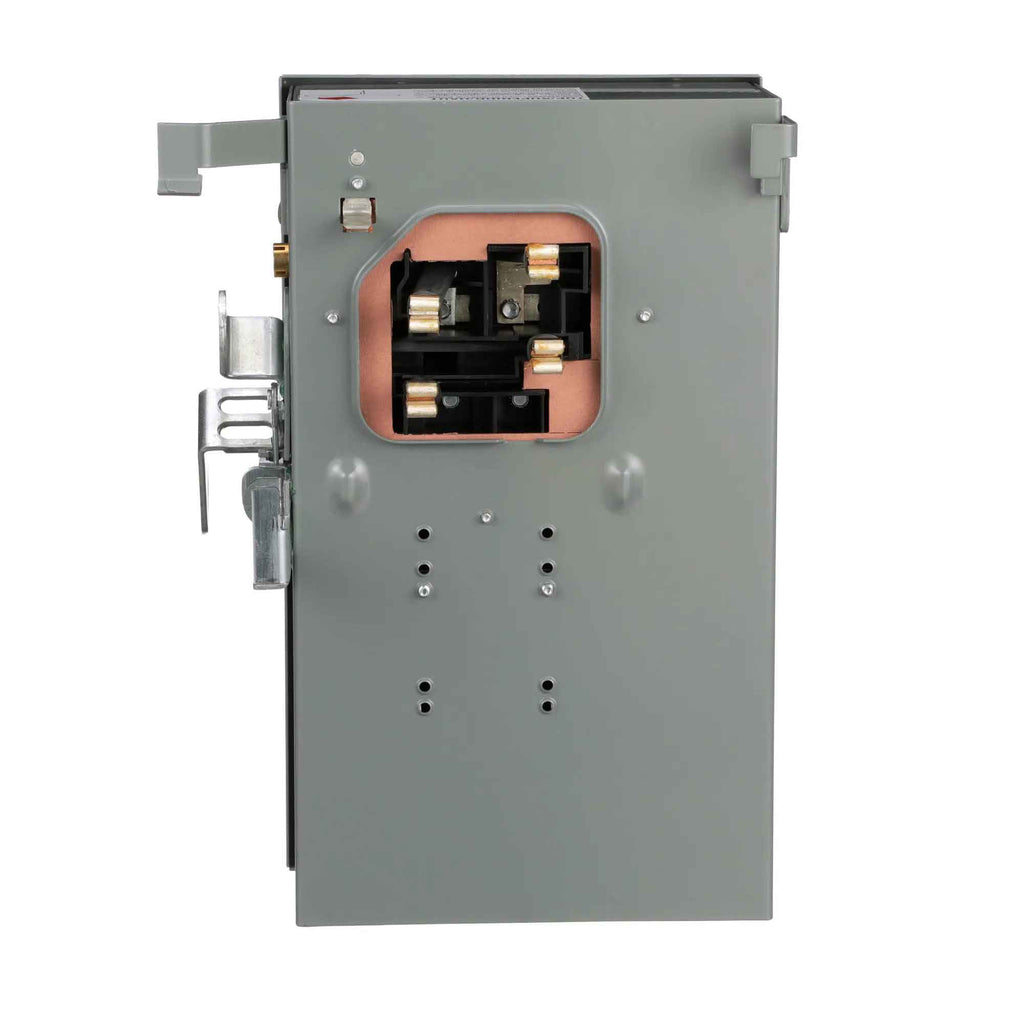

PQ4206G is a Square D fusible bus plug designed for use with I-Line plug-in bus duct systems, rated at 60 amps and 240 volts with 4 poles.Technical Description: This bus plug supports 4-wire, 3-phase applications with a voltage rating of 120/208/240 VAC and a current rating of 60 amps. It features mechanical lugs and is set for R-class fuses by default, providing overcurrent protection with an interrupt rating of 200kA at 240 volts. Compatible with Square D I-Line I and II series bus ducts, it is a reliable solution for busway connections requiring fusible protection.
- Manufacturer: Square D
- Part Number: PQ4206G
- Amperage: 60 Amps
- Voltage: 120/208/240 VAC
- Poles: 4
- Wire: 4-wire, 3-phase
- Fuse Type: Fusible, R-class fuses standard
- Interrupt Rating: 200kA @ 240V
- Mounting Type: Plug-in for I-Line bus duct
- Series/Frame: I-Line I and II
- Mechanical Lugs: Included
- Ground Tab: Yes
Specifications
- Part Number: PQ4206G
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Bus Plug Part
- Family : I-Line
- Type : PQ
- Voltage : 240
- Amperage : 60
- Phase : 3
- AIC rating : 200kA@240V
- Fuse Class : H, K, J, R
- Wire : 4
Product Data
- UPC : 785901309833
- GTIN : 00785901309833
- Country of Origin : Mexico
- Dimensions : Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
- Weight : 13.651
- Certification : UL - CSA
