PQ4203G - Square D 30 Amp 120/208/240V 4-Pole 3-Phase Fusible Bus Plug, PQ Frame, 200kA Interrupt, Plug-In Mount, UL/CSA Listed, For I-Line Busway

Save $241.73
SKU: PQ4203G-New
Condition: New
Price:
$894.27 $1,136.00
Stock:
7 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

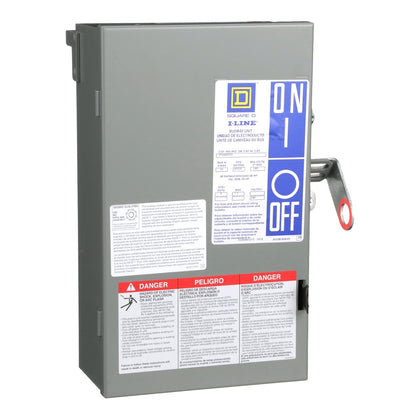

Schneider Electric PQ4203G 30 Amp Fusible Bus Plug - Essential Electric Supply

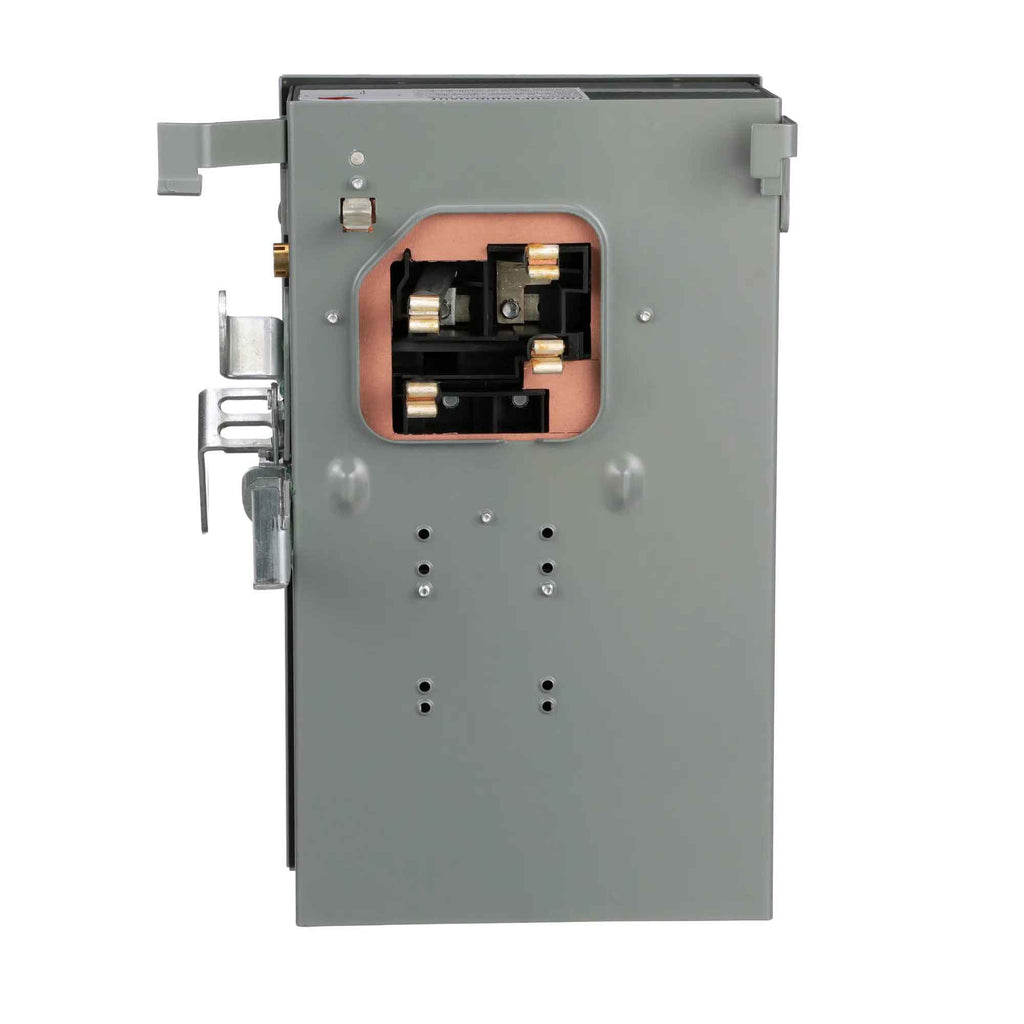

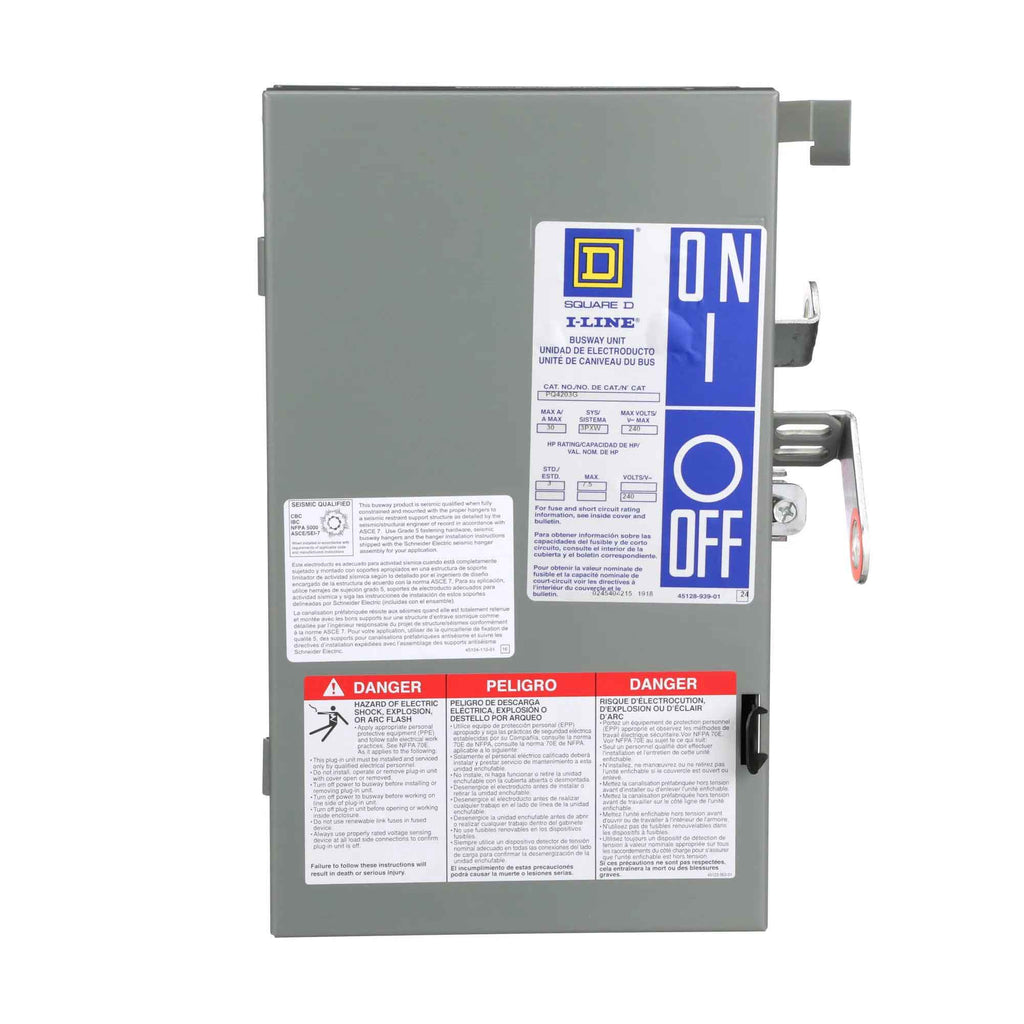

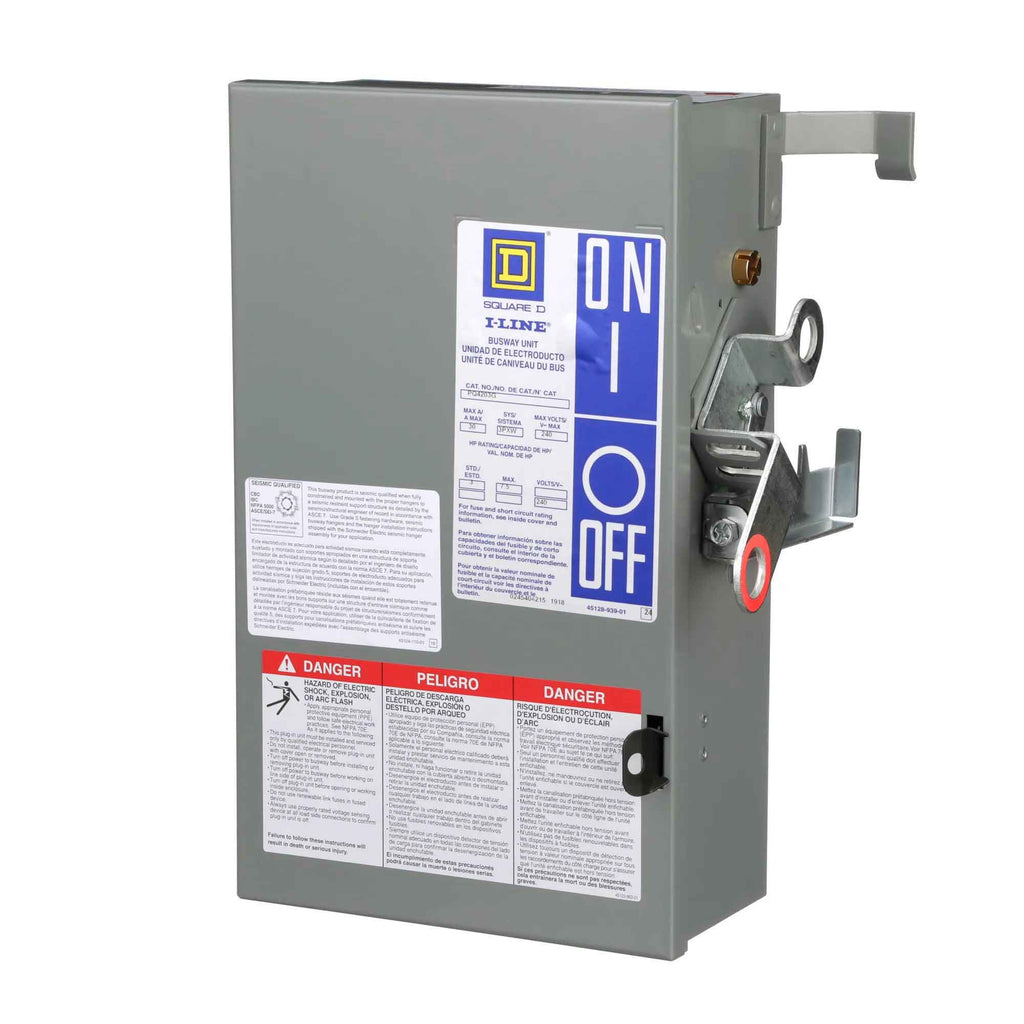

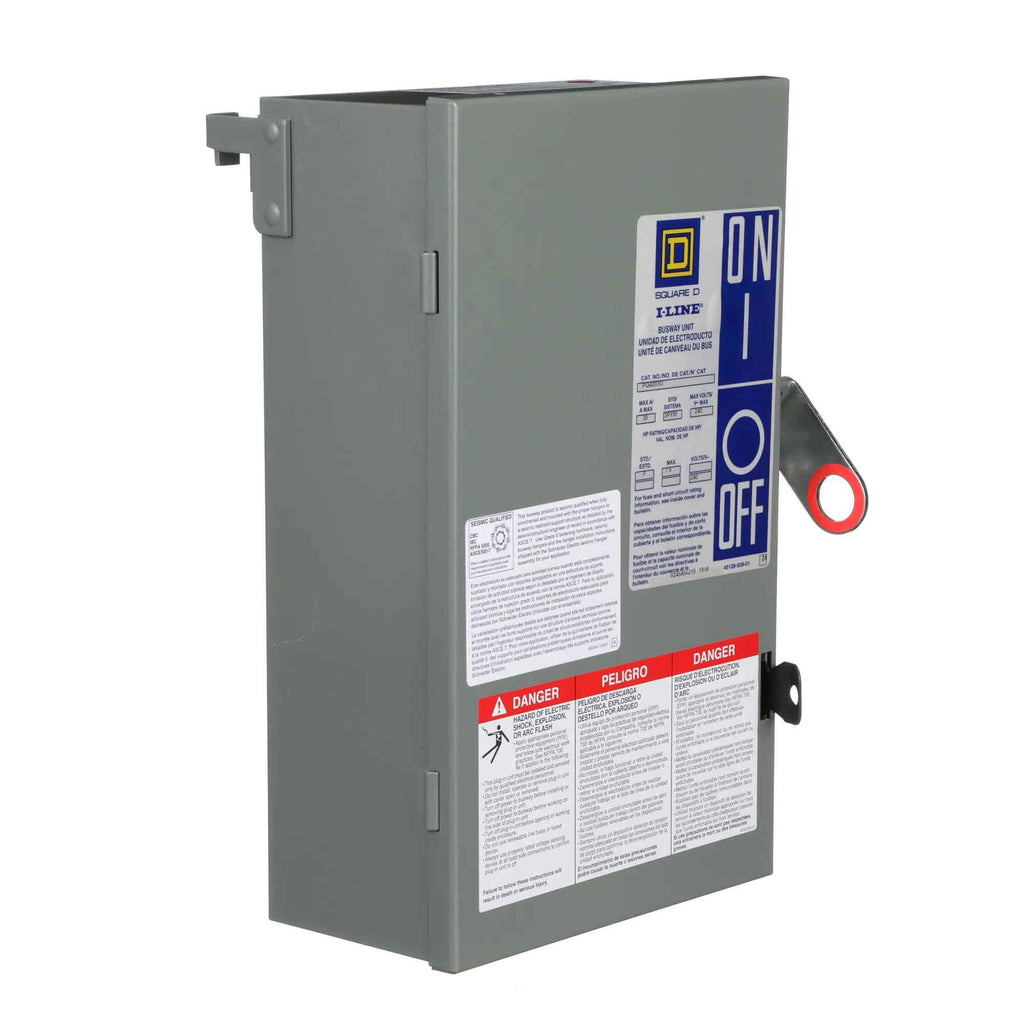

PQ4203G - Square D 30 Amp 120/208/240V 4-Pole 3-Phase Fusible Bus Plug, PQ Frame, 200kA Interrupt, Plug-In Mount, UL/CSA Listed, For I-Line Busway - Essential Electric Supply
PQ4203G - Square D 30 Amp 120/208/240V 4-Pole 3-Phase Fusible Bus Plug, PQ Frame, 200kA Interrupt, Plug-In Mount, UL/CSA Listed, For I-Line Busway - Essential Electric Supply
PQ4203G - Square D 30 Amp 120/208/240V 4-Pole 3-Phase Fusible Bus Plug, PQ Frame, 200kA Interrupt, Plug-In Mount, UL/CSA Listed, For I-Line Busway - Essential Electric Supply
PQ4203G - Square D 30 Amp 120/208/240V 4-Pole 3-Phase Fusible Bus Plug, PQ Frame, 200kA Interrupt, Plug-In Mount, UL/CSA Listed, For I-Line Busway - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
Schneider Electric PQ4203G 30 Amp Fusible Bus Plug - Essential Electric Supply
PQ4203G - Square D 30 Amp 120/208/240V 4-Pole 3-Phase Fusible Bus Plug, PQ Frame, 200kA Interrupt, Plug-In Mount, UL/CSA Listed, For I-Line Busway - Essential Electric Supply
PQ4203G - Square D 30 Amp 120/208/240V 4-Pole 3-Phase Fusible Bus Plug, PQ Frame, 200kA Interrupt, Plug-In Mount, UL/CSA Listed, For I-Line Busway - Essential Electric Supply
PQ4203G - Square D 30 Amp 120/208/240V 4-Pole 3-Phase Fusible Bus Plug, PQ Frame, 200kA Interrupt, Plug-In Mount, UL/CSA Listed, For I-Line Busway - Essential Electric Supply
PQ4203G - Square D 30 Amp 120/208/240V 4-Pole 3-Phase Fusible Bus Plug, PQ Frame, 200kA Interrupt, Plug-In Mount, UL/CSA Listed, For I-Line Busway - Essential Electric Supply

Description

PQ4203G


PQ4203G is a Square D fusible bus plug designed for reliable power distribution in industrial and commercial applications.

This 4-pole, 3-phase bus plug offers a 30 Amp current rating and supports 120/208/240VAC systems. It features a plug-in mounting style for Square D I-Line I and I-Line II busway, a PQ frame, and a high 200kA interrupting rating at 240V. The unit is UL and CSA certified, ensuring compliance with industry standards for safety and performance.

Key Specifications

  • Amperage: 30A
  • Voltage: 120/208/240VAC
  • Poles: 4
  • Mounting Type: Plug-In (for Square D I-Line I and II busway)
  • Interrupt Rating: 200kA @ 240V
  • Series/Frame: PQ
  • Trip Unit: Fusible (accepts Class R fuses by default, other classes possible)
  • Certifications: UL, CSA, RoHS
  • Phase: 3
  • Connection: 4-wire
  • Enclosure Rating: NEMA 1
  • Standards: RoHS compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: PQ4203G
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Bus Plug
  • Item Subcategory : Bus Plug Part
  • Family : I-Line
  • Type : PQ
  • Voltage : 240
  • Amperage : 30
  • Phase : 3
  • AIC rating : 200kA@240V
  • Fuse Class : H, K, J, R
  • Wire : 4

Product Data

  • UPC : 785901309826
  • GTIN : 00785901309826
  • Country of Origin : Mexico
  • Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
  • Weight : 13.69
  • Certification : UL - CSA
