Description

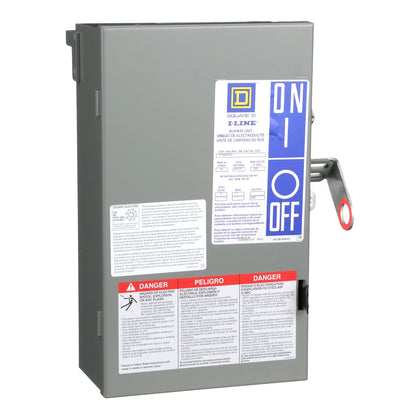

PQ4203GLP
PQ4203GLP is a Square D fusible bus plug rated for 30 amps at 240 volts, designed for use with I-Line series plug-in busway systems. This 3-phase, 4-wire unit provides reliable overcurrent protection in commercial and industrial power distribution applications. The plug-in connection type allows for quick installation and removal on compatible Square D I-Line busway, and it accepts Class H, K, and R fuses for flexible overcurrent protection between 5 and 30 amps.
- Amperage: 30A
- Voltage: 240V
- Poles: 4
- Phase: 3-Phase
- Wire Configuration: 4-Wire with Ground
- Connection Type: Plug-In
- Series: I-Line
- Fusibility: Fusible (Class H, K, R)
- Fuse Range: 5A to 30A
- Approvals: UL, CSA
Specifications
- Part Number: PQ4203GLP
- Manufacturer : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 240
- Amperage : 30
- Phase : 3
- AIC rating : 200kA@240V
- Fuse Class : H,K,R
- Wire : 4
Product Data
- Weight : 30
