Description
PQ4203GGSC

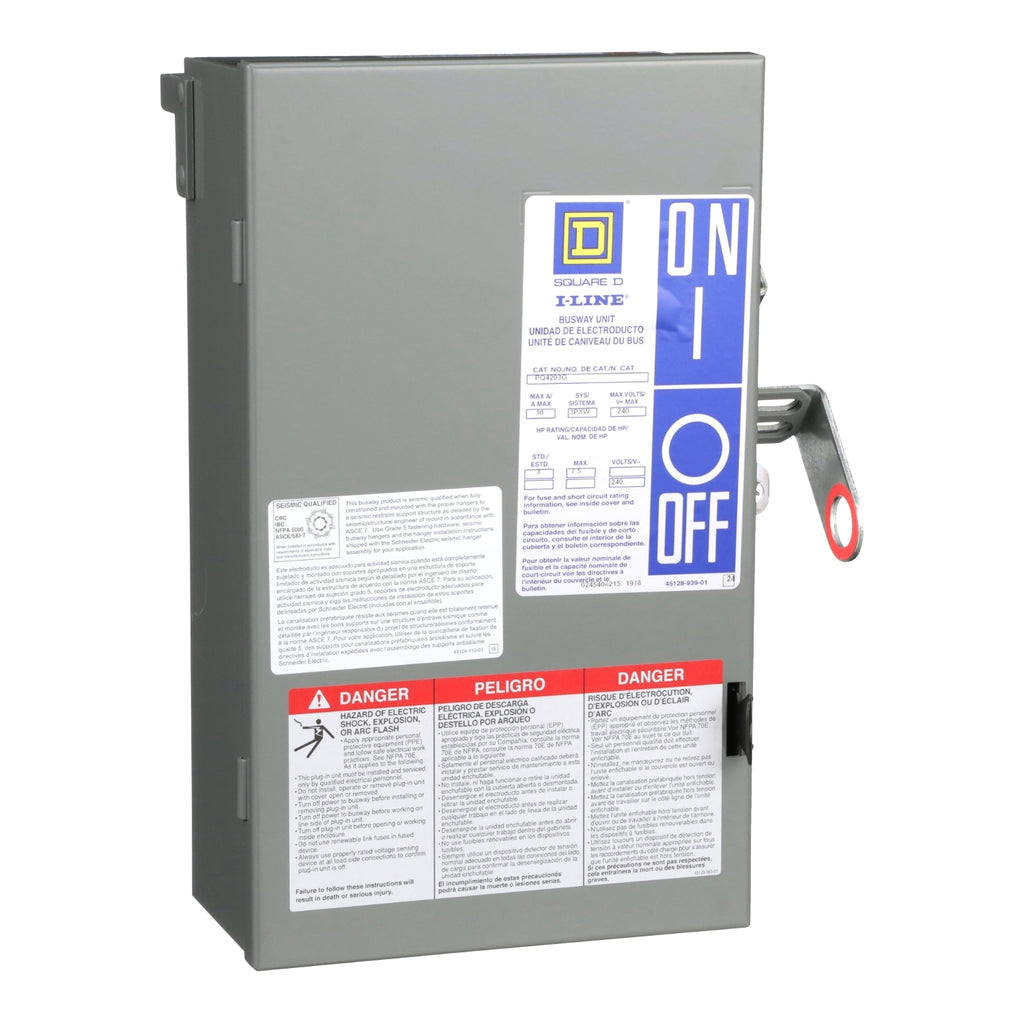

PQ4203GGSC is a Square D fusible bus plug rated for 30 Amps and 240 Volts, designed for use with I-Line busway systems.This 4-pole, 3-phase, 4-wire bus plug features a plug-in mounting type and is suitable for commercial and industrial power distribution applications. It provides reliable overcurrent protection with fusible elements and is compatible with Square D I-Line I and II busway systems.
- Manufacturer: Square D
- Part Number: PQ4203GGSC
- Amperage: 30 Amps
- Voltage: 240 Volts
- Poles: 4
- Phase: 3
- Fusible: Yes
- Mounting Type: Plug-In
- Compatible with Square D I-Line I and II Busway
- Interrupt Rating: 200kA at 240V
- Approvals: UL, CSA
Specifications
- Part Number: PQ4203GGSC
- Manufacturer : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 240
- Amperage : 30
- Phase : 3
- AIC rating : 200kA@240V
- Fuse Class : H,K,R
- Wire : 4
Product Data
- Weight : 30
