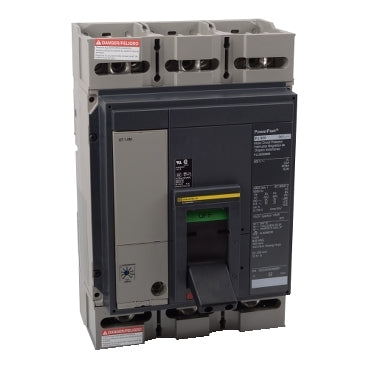

PLL34100U44A - Square D 1000A 480V 3 Pole Powerpact PLL Molded Case Circuit Breaker

PLL34100U44A

PLL34100U44A is a Square D Powerpact PLL series molded case circuit breaker rated for 1000 amps and 480 volts with 3 poles.This solid state circuit breaker features a 3-pole design with a 480V AC voltage rating and 1000A current capacity. It includes long-time, short-time, instantaneous, and ground fault trip functions with a Micrologic interchangeable ammeter trip unit rated at 6.0A. The breaker has an interrupting rating of up to 100kA at 480V and uses an I-Line style plug-in mounting. It is UL listed and designed for high interrupting capacity in industrial and commercial power distribution applications.

Key Specifications
• Amperage: 1000A
• Voltage: 480V AC
• Poles: 3
• Frame/Series: Powerpact PLL
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 100kA at 480V
• Trip Unit: Micrologic 6.0A interchangeable ammeter
• Trip Functions: Long-Time, Short-Time, Instantaneous, Ground Fault
• Certifications: UL Listed
• Type: Molded Case Circuit Breaker
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: PLL34100U44A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PLL
• Voltage : 480
• Amperage : 1000
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Frame Size : P Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State



Product Data

• UPC : 051712204668
• GTIN : 00051712204668
• Country of Origin : United States
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 0.032
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
