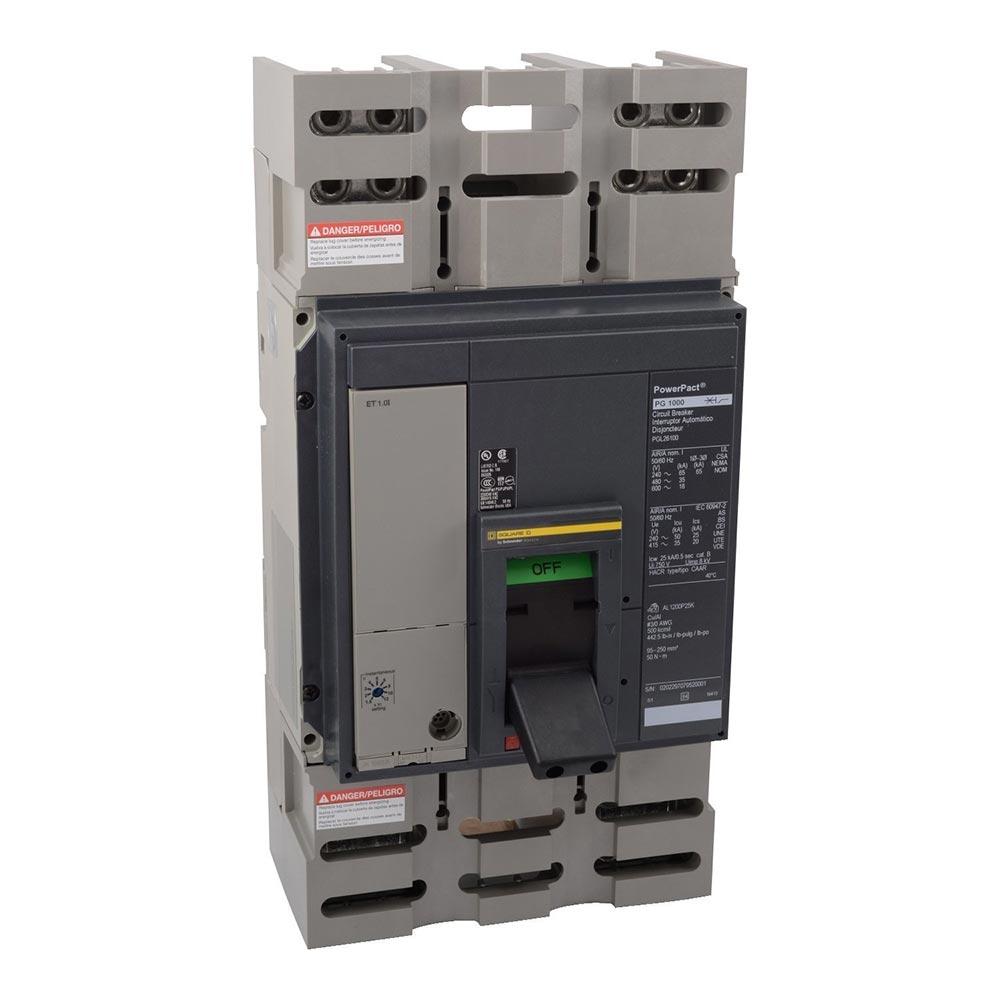

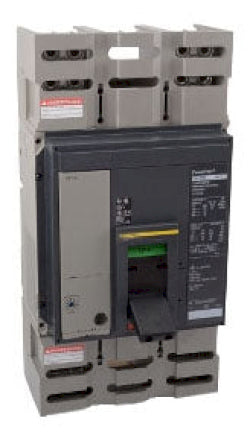

PLL34100 - Square D 1000 Amp 480V 3 Pole PowerPact PLL Molded Case Circuit Breaker

PLL34100

PLL34100 is a Square D PowerPact PLL series molded case circuit breaker designed for 1000 Amp, 480 Volt applications with 3 poles.This 3-pole circuit breaker features a solid state electronic trip unit with long-time and instantaneous trip functions, suitable for high interrupting capacity needs.

• Amperage: 1000 Amps
• Voltage Rating: 480 VAC
• Poles: 3
• Series/Frame: PowerPact PLL
• Mounting Type: Unit Mount
• Interrupt Rating: 65kAIC @ 480V
• Trip Unit: Solid State, Non-Interchangeable ET 1.0I
• Certifications: UL Listed, CSA Approved
• Feed-Thru capable
• Thermal Magnetic Type
• Designed for 3-phase power distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PLL34100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PLL
• Voltage : 480
• Amperage : 1000
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : P Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 785901553755
• GTIN : 00785901553755
• Country of Origin : United States
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
