Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
PKL36060CU33A

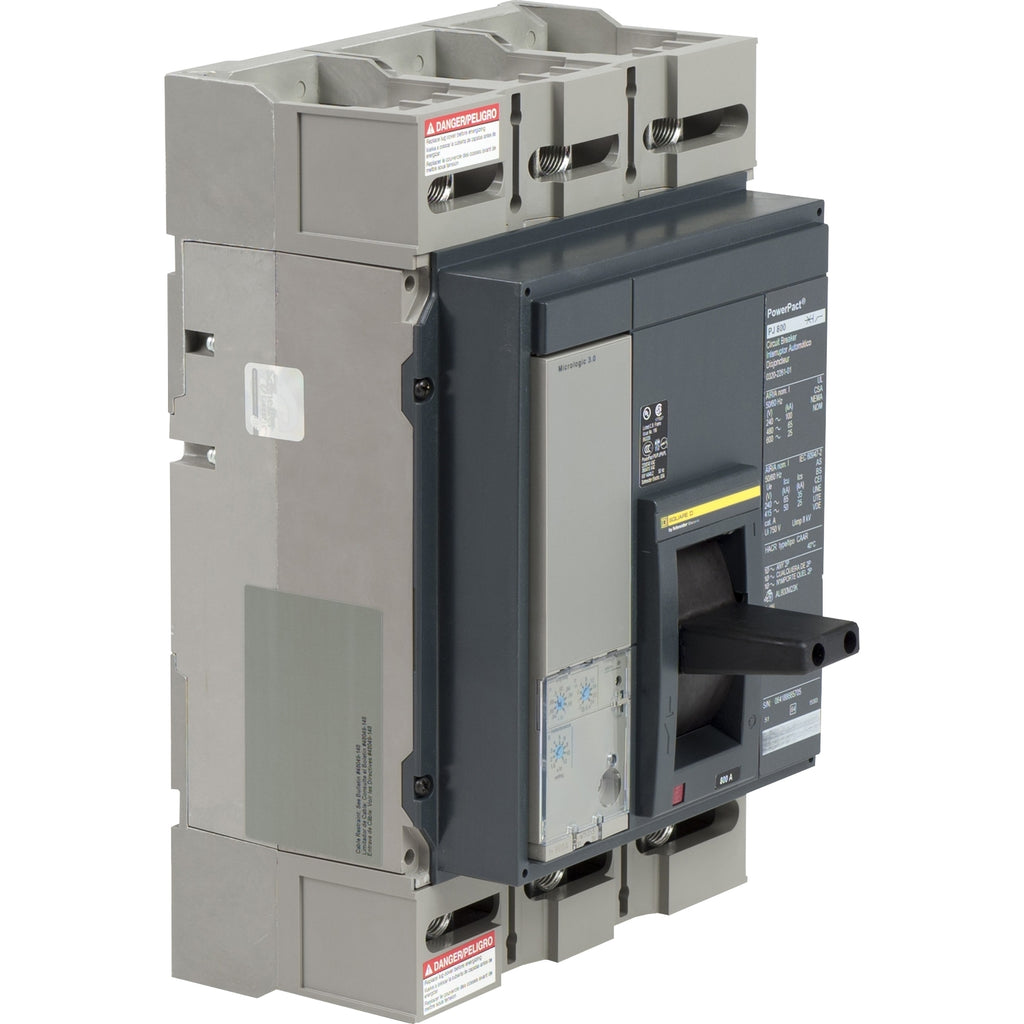

PKL36060CU33A is a Square D PowerPact P series molded case circuit breaker rated for 600 amps and 600 volts AC with 3 poles.This circuit breaker features a 3-pole design with a 600 amp continuous current rating and 600 VAC voltage rating. It has a 50kA interrupting rating at 480V and is designed for feed-thru mounting. The breaker is part of the PowerPact P frame family, providing reliable protection for electrical distribution systems.
- Manufacturer: Square D
- Part Number: PKL36060CU33A
- Amperage: 600 Amps
- Voltage Rating: 600 VAC
- Poles: 3
- Interrupt Rating: 50kA at 480V
- Series/Frame: PowerPact P
- Mounting Type: Feed-Thru
- Trip Unit: Thermal Magnetic
- Certifications: UL Listed
Specifications
- Part Number: PKL36060CU33A
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : PKL
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 50kA@480V
- Connection : Feed-Thru
- Functions : Long Time, Short Time, Instantaneous Trip
- Frame Size : P Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Solid State
- Shipping Dimensions : 12.86 in x 8.27 in x 8.05 in
- Trip Type : MicroLogic 5.0
Product Data
- Country of Origin : United States
- Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
- Weight : 0.032 lb
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
