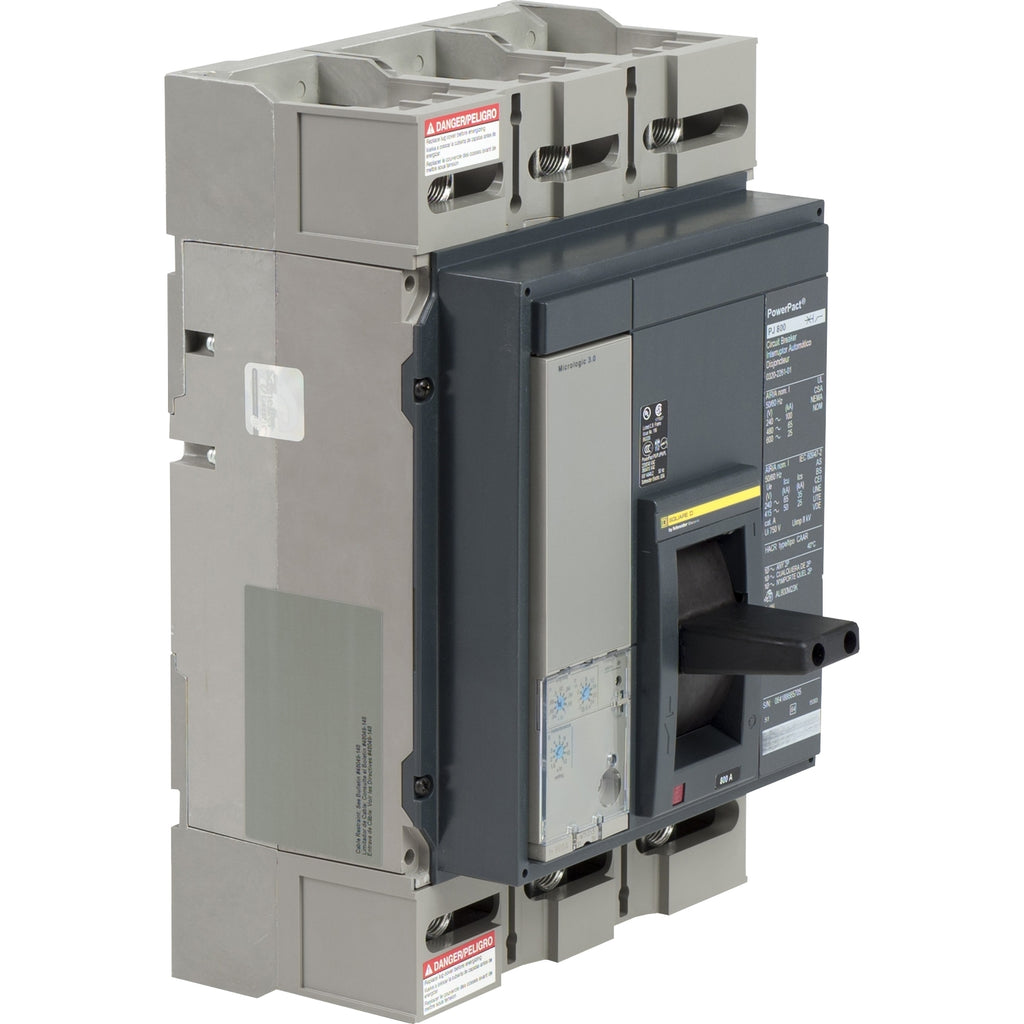

PKL36060CU31A - Square D PowerPact P 600A 600VAC 3 Pole Molded Case Circuit Breaker

PKL36060CU31A

PKL36060CU31A is a 3 pole molded case circuit breaker from the Square D PowerPact P series, designed for reliable protection in industrial and commercial power distribution systems. This breaker features a solid state trip unit and is rated for 600A continuous current and 600VAC maximum voltage. It is engineered for unit mount lug installation and offers high interrupting capacity for demanding applications. The PKL36060CU31A is built to meet rigorous safety and performance standards, supporting robust electrical protection in critical environments. Its compact design and advanced trip technology ensure dependable operation under heavy load conditions.

• Part Number: PKL36060CU31A
• Manufacturer: Square D
• Series/Frame: PowerPact P
• Amperage: 600A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: Unit Mount Lug
• Interrupt Rating: 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC
• Trip Unit: Solid State
• Certifications: CSA, NOM, UL
• Net Weight: 32 lb
• Height: 12.86 in
• Depth: 8.05 in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PKL36060CU31A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PKL
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 50kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : P Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• Country of Origin : United States
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
