PKI34250GN - Square D 250A 480V 3-Phase 4-Wire Breaker Bus Plug I-Line

PKI34250GN

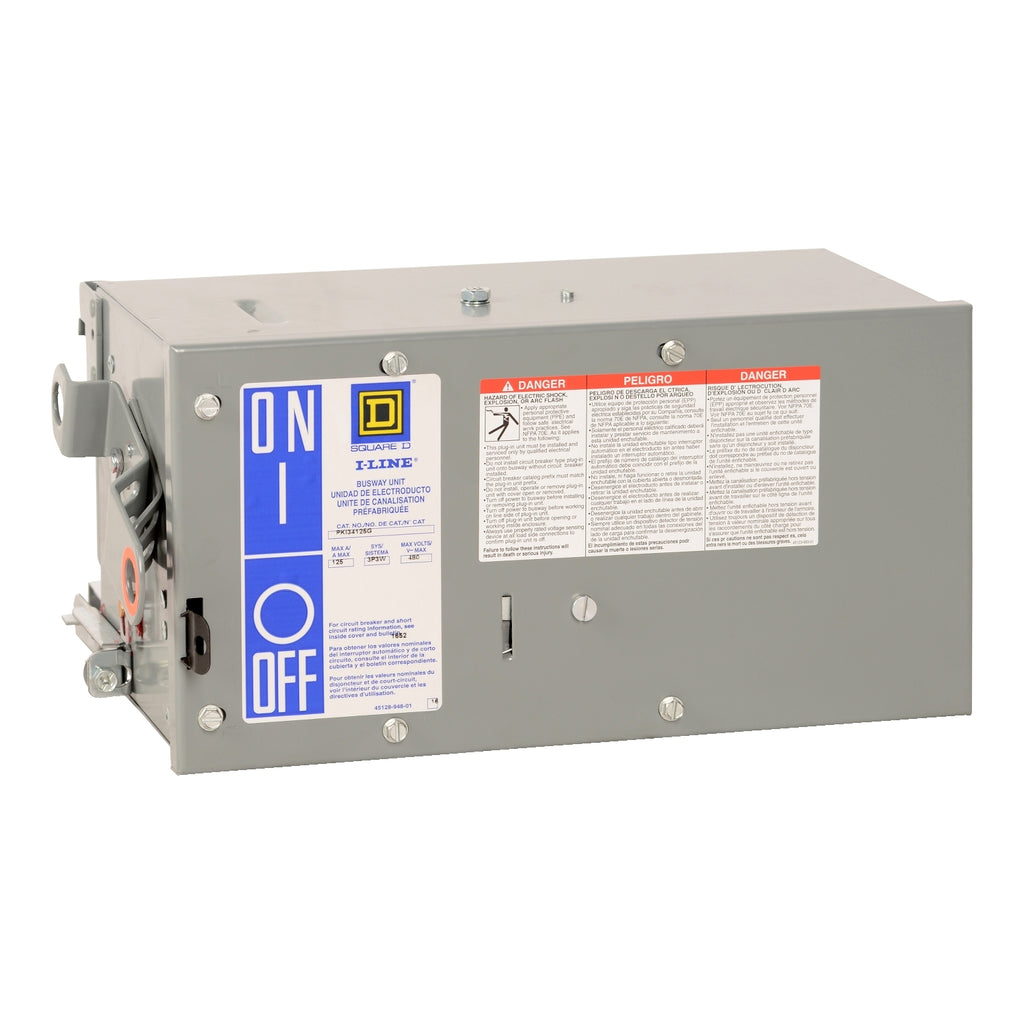

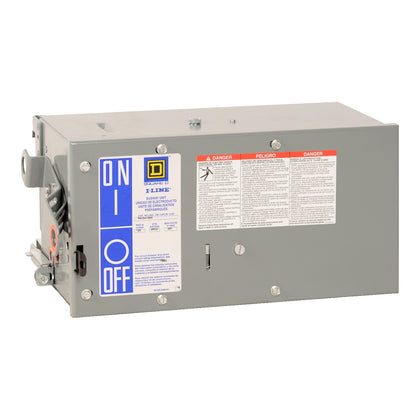

PKI34250GN is a Square D breaker type bus plug rated for 250 Amps at 480 Volts in a 3-phase 4-wire configuration from the I-Line series. This plug-in circuit breaker unit is designed for busway systems and provides reliable overcurrent protection in industrial and commercial power distribution applications. The unit features a plug-in mounting design that allows for easy installation and removal from compatible I-Line busway systems.

• Amperage Rating: 250A
• Voltage Rating: 480V AC
• Phase Configuration: 3-Phase 4-Wire
• Mounting Type: Plug-In
• Protection Type: Circuit Breaker
• Series: I-Line
• Interrupt Rating: 100kA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PKI34250GN
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Breaker Type
• Family : I-Line
• Type : PKI
• Voltage : 480
• Amperage : 250
• Phase : 3
• AIC rating : 200kA@480V
• Wire : 4
• Compatible Frames : KIP

Product Data

• GTIN : 00785901458128
• Country of Origin : United States
• Dimensions : Height 16.24 in (412.50 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 45
• Certification : IEC - CSA - UL listed
