Product Info
- Manufacturer:Square D
- Sub-Category:Breaker Type
Description
PKI34225GN

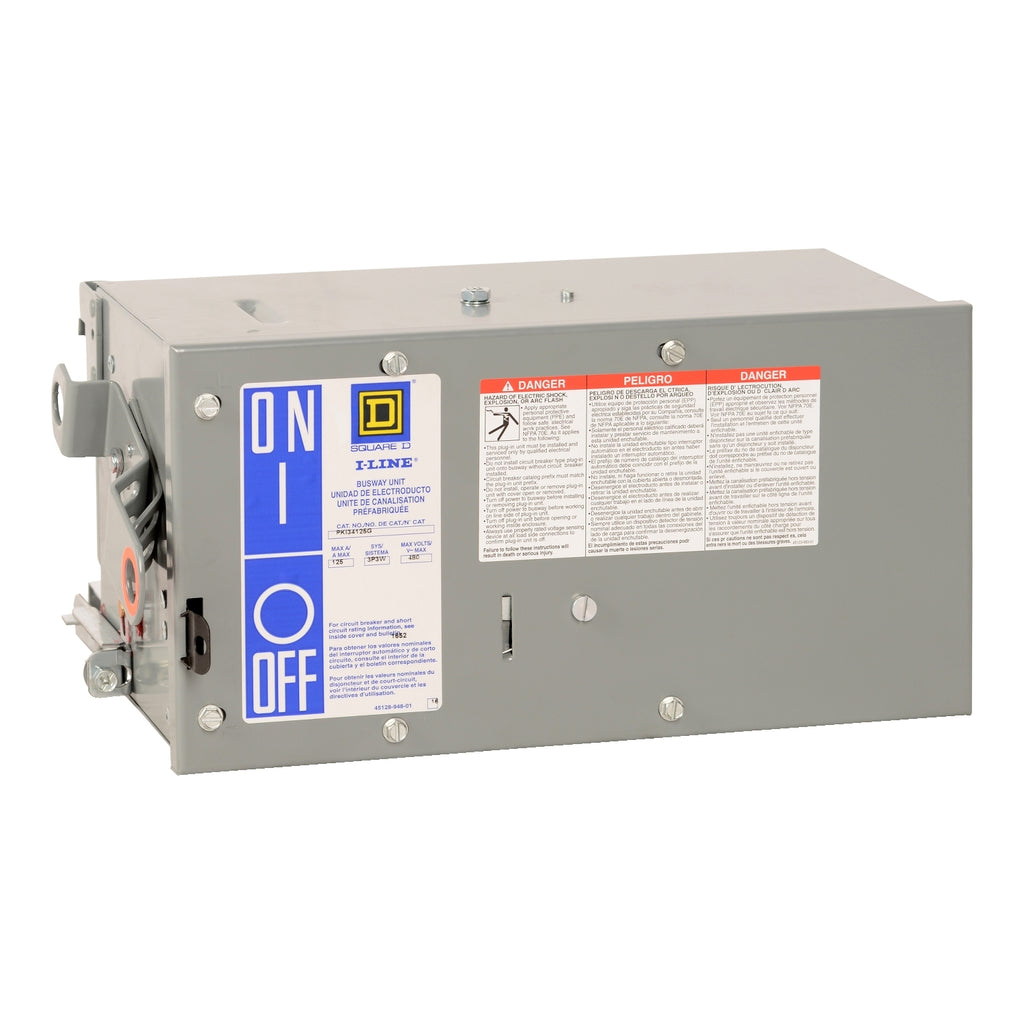

PKI34225GN is a 3-pole, 225A, 480V 3-phase breaker type bus plug designed for use with Square D I-Line busway systems. This bus plug provides reliable circuit protection and easy integration into industrial and commercial power distribution setups. The PKI34225GN features a molded case circuit breaker for dependable overcurrent protection and is engineered for quick installation and secure connection to compatible busway sections. It is suitable for indoor applications and supports standard 3-phase 4-wire configurations.
- Part Number: PKI34225GN
- Manufacturer: Square D
- Amperage: 225A
- Voltage: 480V
- Poles: 3
- Mounting Type: Bus Plug
- Series/Frame: I-Line
- Configuration: 3-Phase 4-Wire
- Application: Indoor
- Interrupt Rating: 200kA AIC
- Mounting: Standard busway mounting
- Protection Type: Breaker Type
Specifications
- Part Number: PKI34225GN
- Manufacturer : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PKI
- Voltage : 480
- Amperage : 225
- Phase : 3
- AIC rating : 200kA@480V
- Wire : 4
- Compatible Frames : KIP
Product Data
- GTIN : 00785901853466
- Dimensions : Depth 2.12 in (53.85 mm) Width 0.63 in (16.00 mm) Height 0.34 in (8.64 mm)
- Weight : 45
