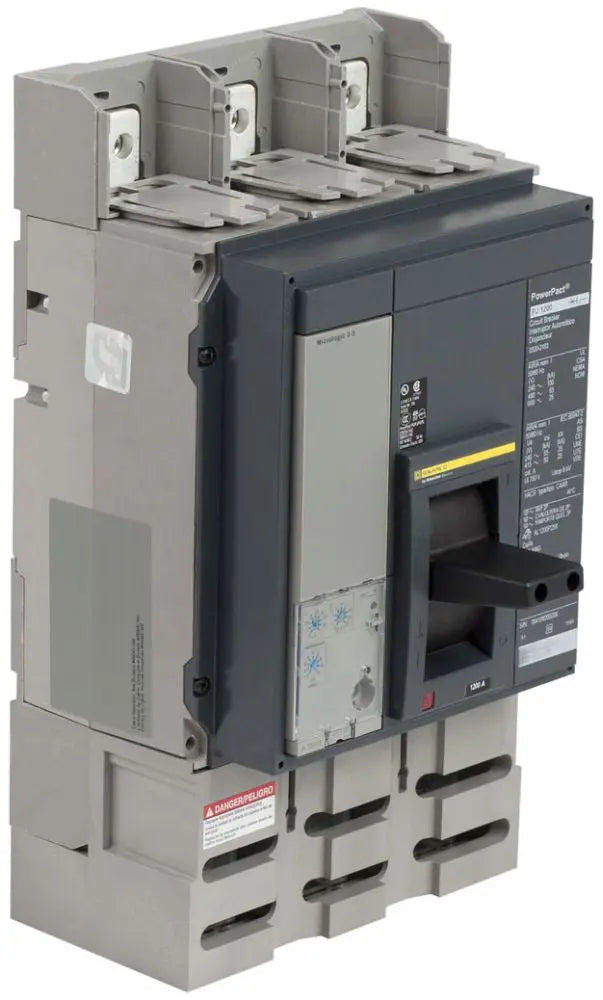

PJP36120U31E - Square D PowerPact P 1200 Amp 600V 3-Pole Molded Case Circuit Breaker

PJP36120U31E

PJP36120U31E is a Square D PowerPact P-Frame molded case circuit breaker rated for 1200 amperes at 600 volts AC with three poles for three-phase power distribution applications. This industrial-grade breaker features electronic trip protection and unit mount bolt-on construction, delivering reliable performance in demanding electrical systems. The breaker is designed for use in commercial and industrial power distribution panels where high-capacity switching and protection are required.

• Amperage Rating: 1200 A
• Voltage Rating: 600 VAC
• Number of Poles: 3
• Phase: 3-Phase
• Series: PowerPact P-Frame
• Interrupt Rating: 25 kA at 600 VAC
• Tripping Mechanism: Electronic
• Mounting Type: Bolt-On Unit Mount
• Terminal Connection: Lug

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PJP36120U31E
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PJP
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : P Frame
• Protection : Solid State

Product Data

• UPC : 060648628577
• GTIN : 03606486285770
• Country of Origin : United States
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
