Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Breaker Type
Description
PJD36250GN

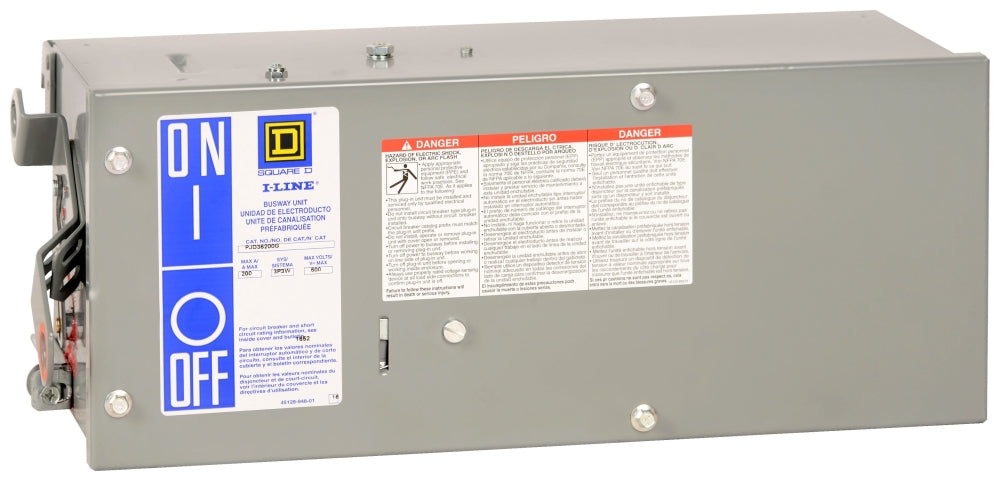

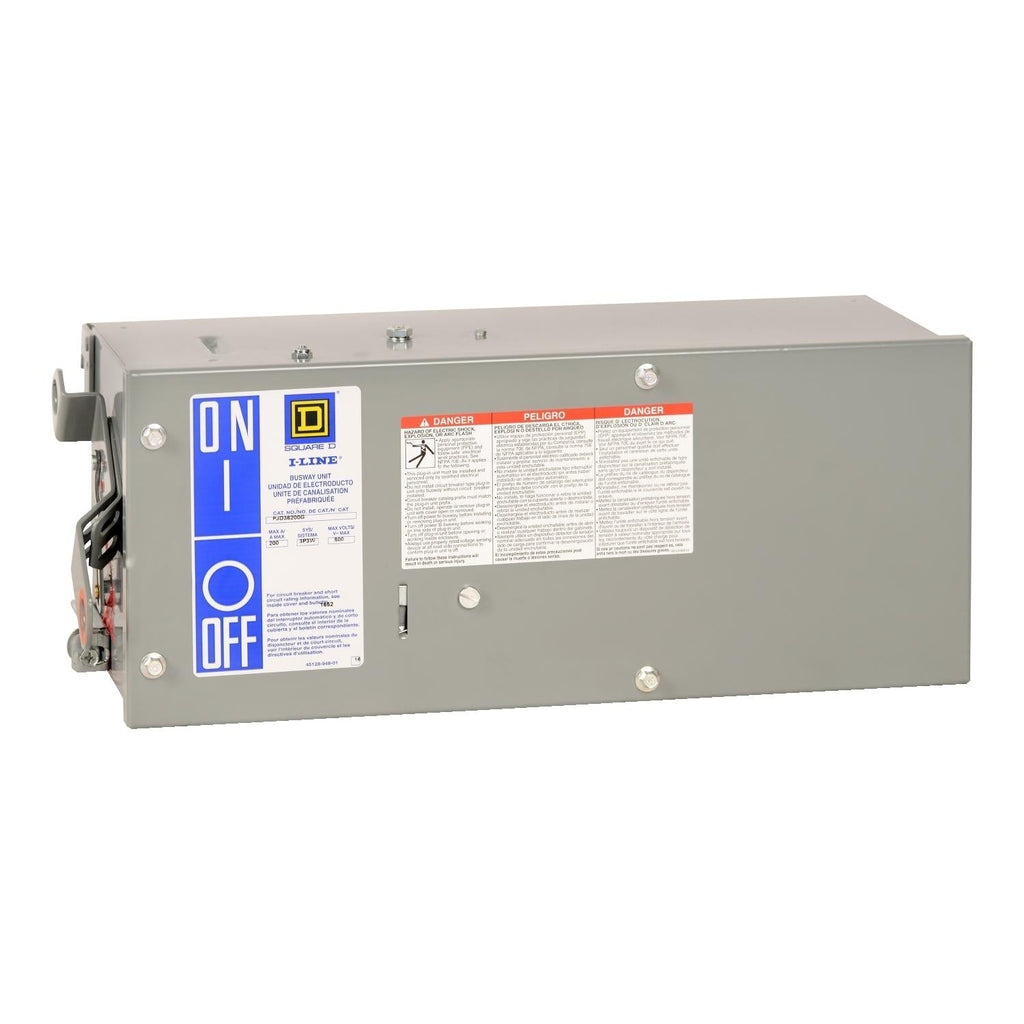

PJD36250GN is a 250A, 600V, 3 pole breaker type bus plug designed for use with Square D I-Line busway systems. This plug-in bus plug provides reliable circuit protection for three-phase, four-wire applications. The PJD36250GN features a plug-in connection for easy installation and removal, making it ideal for industrial and commercial power distribution. It is rated for 250 amps and 600 volts AC, with an interrupting rating of 18kA at 480V. The unit is compatible with both aluminum and copper I-Line busway systems and is certified to UL and CSA standards.
- Part Number: PJD36250GN
- Manufacturer: Square D
- Amperage: 250A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Plug-In
- Interrupting Rating: 18kA @ 480V
- Series/Frame: I-Line PJD
- Trip Unit: Breaker Type
- Wires: 4 (3-phase, 4-wire)
- Certifications: UL, CSA
- Standards: RoHS
Specifications
- Part Number: PJD36250GN
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PJD
- Voltage : 600
- Amperage : 250
- Phase : 3
- AIC rating : 18kA@480V
- Wire : 4
- Compatible Frames : JDP
Product Data
- UPC : 606487115918
- GTIN : 03606490000000
- Country of Origin : United States
- Dimensions : Depth 18.60 in (47.24 cm) Width 17.00 in (43.18 cm) Height 3.74 in (9.5 cm)
- Weight : 32.01 lb
- Certification : UL, CSA
