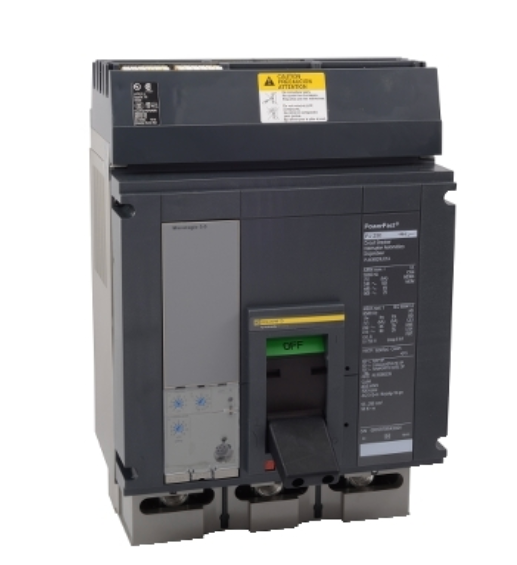

PJA36060CU64AE1 - Square D PowerPact P 600V 600A 3 Pole Molded Case Circuit Breaker

PJA36060CU64AE1

PJA36060CU64AE1 is a Square D PowerPact P series molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This 3 pole, 600V, 600A circuit breaker features an I-Line plug-in mounting style, a 65kA interrupting rating at 480V, and is part of the PowerPact P family for high performance and durability. It is UL, CSA, and NMX certified for safety and compliance.

• Part Number: PJA36060CU64AE1
• Manufacturer: Square D
• Series/Frame: PowerPact P
• Amperage: 600A
• Voltage: 600V
• Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 65kA @ 480V
• Trip Unit: Thermal-Magnetic
• Certifications: UL, CSA, NMX

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PJA36060CU64AE1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PJA
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Terminal Connection : AL800M23K
• Frame Size : P Frame
• Temp Rating : 13-158 °F (-25-70 °C)
• Protection : Solid State

Product Data

• UPC : 762179028734
• Country of Origin : United States
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
