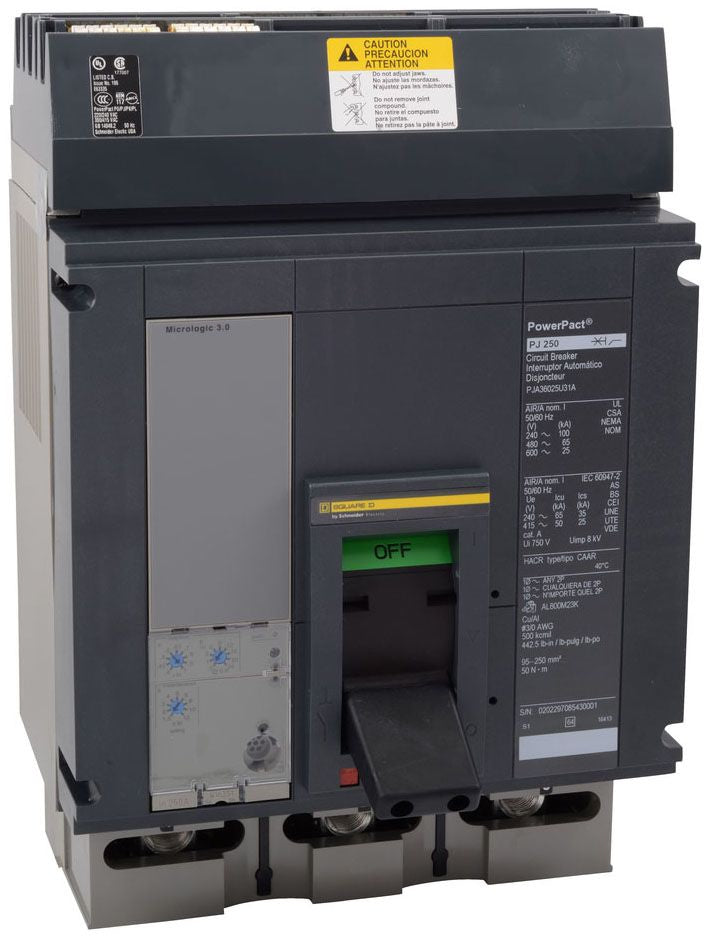

PJA36025U33A - Schneider Electric PowerPact P Molded Case Circuit Breaker 250A 600VAC 3 Pole I-Line Micrologic 5.0

PJA36025U33A

PJA36025U33A is a Schneider Electric PowerPact P molded case circuit breaker rated for 250 amps, 600 volts AC, with 3 poles and I-Line style plug-in mounting.This circuit breaker features a 25kA interrupting rating at 600VAC, includes a Micrologic 5.0 electronic trip unit with 80% continuous current rating, and is designed for reliable protection in industrial and commercial electrical distribution systems. It complies with UL 489 and IEC standards.

• Amperage: 250A
• Voltage Rating: 600VAC
• Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 25kA at 600VAC
• Series/Frame: PowerPact P
• Trip Unit: Micrologic 5.0 electronic
• Continuous Current Rating: 80%
• Certifications: UL 489, IEC
• Style: Molded Case Circuit Breaker
• Manufacturer: Schneider Electric

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PJA36025U33A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PJA
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : AL800M23K
• Frame Size : P Frame
• Temp Rating : 13-158 °F (-25-70 °C)
• Protection : Solid State

Product Data

• UPC : 785901574422
• GTIN : 00785901574422
• Country of Origin : United States
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 37
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
