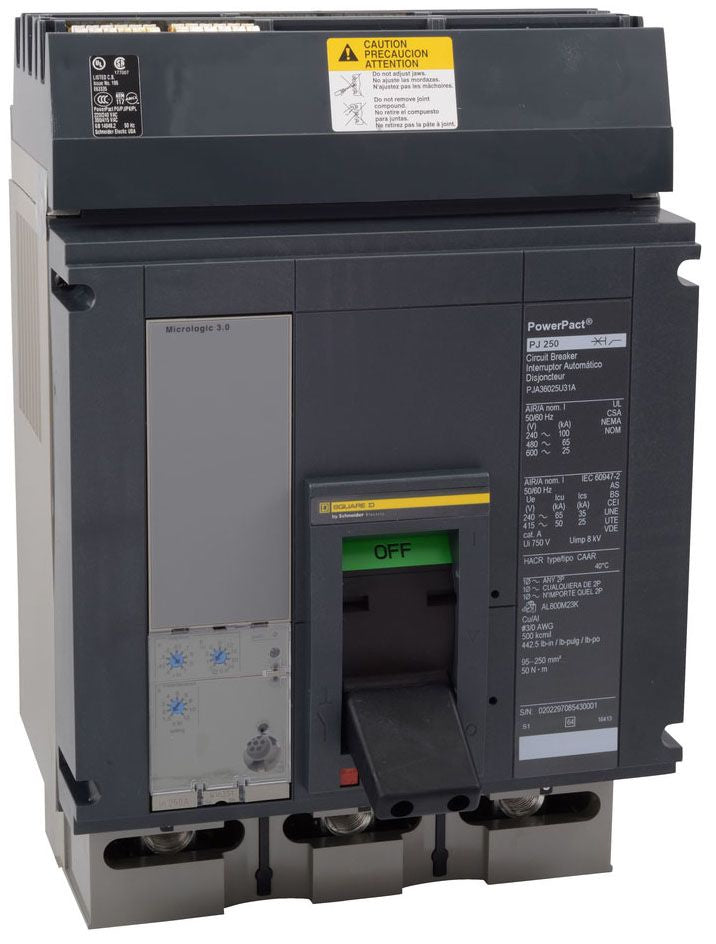

PJA36025CU31A - Schneider Electric PowerPact P 250A 3-Pole 600V Circuit Breaker

PJA36025CU31A

PJA36025CU31A is a molded case circuit breaker from Schneider Electric's PowerPact P series, designed for industrial and commercial power distribution applications requiring reliable overcurrent protection at 600V AC.

This three-pole circuit breaker features a 250-ampere rating with a 25 kA interrupt capacity at 600V AC, making it suitable for medium-voltage distribution systems. The breaker incorporates Micrologic 3.0 electronic trip technology with LI (Load Interrupter) functionality for enhanced protection and coordination. I-Line plug-in mounting provides quick installation and removal without requiring disconnection of power leads. The unit is constructed to meet stringent industrial standards and is certified by UL, CSA, and NOM.

• Amperage Rating: 250A
• Voltage: 600V AC
• Poles: 3 Pole
• Interrupt Rating: 25 kA at 600V AC, 65 kA at 480V AC, 100 kA at 240V AC
• Series: PowerPact P
• Frame Type: P Frame
• Trip Unit: Micrologic 3.0 Electronic
• Mounting Style: I-Line Plug-In
• Certifications: UL, CSA, NOM
• Dimensions: 12.86 in H x 8.27 in W x 8.05 in D
• Net Weight: 32 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PJA36025CU31A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PJA
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : AL800M23K
• Frame Size : P Frame
• Temp Rating : 13-158 °F (-25-70 °C)
• Protection : Solid State

Product Data

• UPC : 078590197995
• GTIN : 00785901979951
• Country of Origin : United States
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
