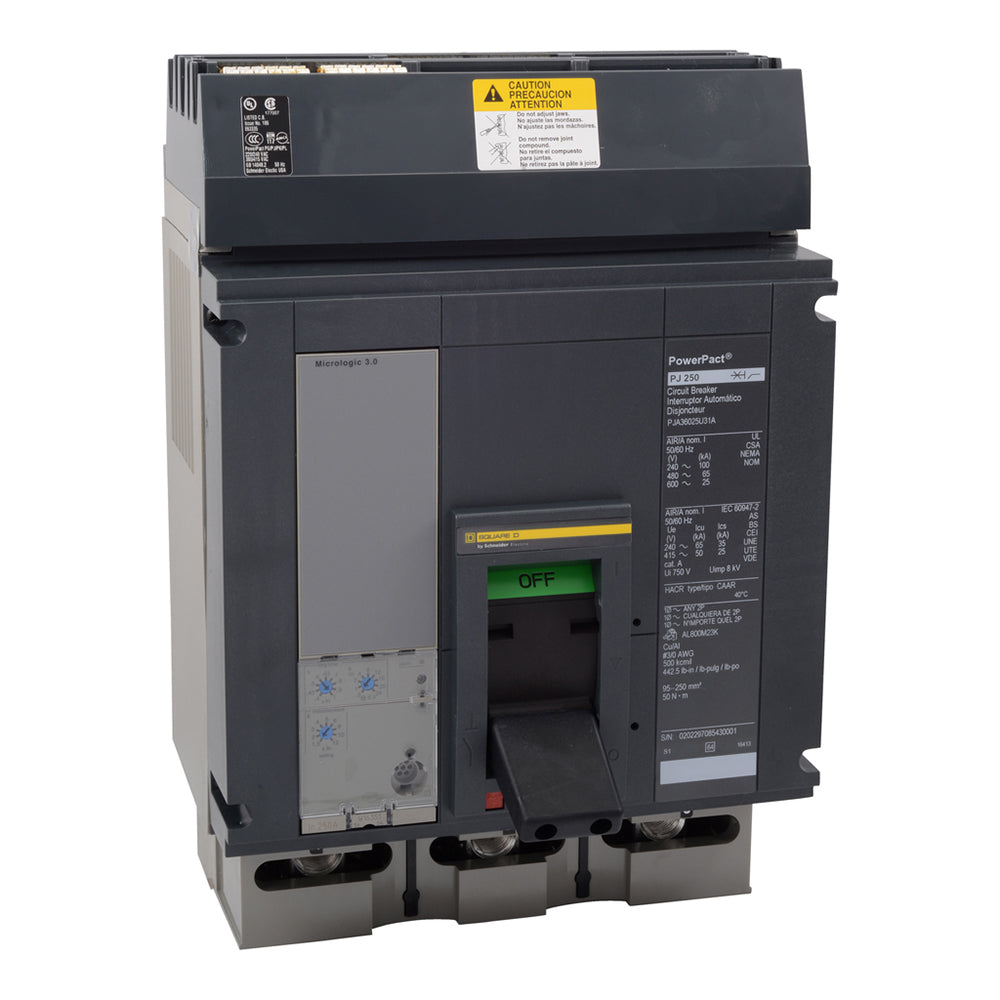

PJA36025U31A - Schneider Electric 250A 600V 3P Molded Case Circuit Breaker I-Line

PJA36025U31A

PJA36025U31A is a Schneider Electric Powerpact PJA series molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This 3-pole breaker features a 250A current rating, 600V AC voltage rating, and is suitable for I-Line bus applications. It offers solid-state trip technology for precise protection and is DIN rail mountable for flexible installation. Engineered for durability and safety, the PJA36025U31A delivers high interrupt ratings: 100 kA at 240V AC, 65 kA at 480V AC, and 25 kA at 600V AC. The breaker is part of the Powerpact PJA series, known for robust performance and compatibility with Schneider Electric I-Line busway systems. It is ideal for use in motor control, panelboards, and switchgear applications where dependable circuit protection is required.

• Part Number: PJA36025U31A
• Manufacturer: Schneider Electric
• Series/Frame: Powerpact PJA
• Amperage: 250A
• Voltage Rating: 600V AC
• Poles: 3P
• Mounting Type: DIN Rail
• Interrupt Rating: 100 kA @ 240V, 65 kA @ 480V, 25 kA @ 600V
• Breaker Type: Molded Case, Solid State Trip
• Application: I-Line Busway, Panelboards, Switchgear
• Certifications: UL Listed, CSA Certified
• Standards: UL 489, CSA 22.2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PJA36025U31A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PJA
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : AL800M23K
• Frame Size : P Frame
• Temp Rating : 13-158 °F (-25-70 °C)
• Protection : Solid State

Product Data

• UPC : 785901979951
• GTIN : 00785901979951
• Country of Origin : United States
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
