Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Breaker Type
Description
PHG36040GN

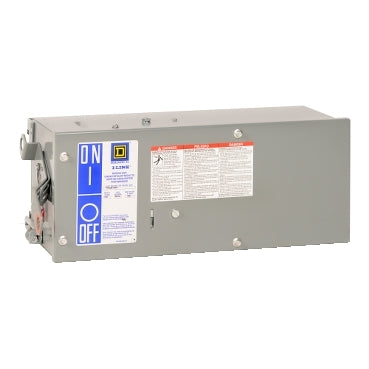

PHG36040GN is a Schneider Electric bus plug designed for reliable power distribution in busway systems.
This breaker-type bus plug features a 40 Amp current rating and operates at 600 Volts AC with a 3-phase, 4-wire configuration. It is built on the H-frame series and provides an interrupt rating of 18kAIC, suitable for I-Line busway applications. The unit includes grounding and neutral connections and is engineered for continuous current flow to ensure stable electrical performance.
- Manufacturer: Schneider Electric
- Part Number: PHG36040GN
- Amperage: 40 Amps
- Voltage: 600 VAC
- Phases: 3
- Wires: 4
- Frame/Series: H-Frame
- Interrupt Rating: 18kAIC
- Mounting Type: Plug-in unit for I-Line Busway
- Includes Ground and Neutral
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: PHG36040GN
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PHG
- Voltage : 600
- Amperage : 40
- Phase : 3
- AIC rating : 35kA@480V
- Fuse Class : H
- Wire : 4
- Compatible Frames : HGP
Product Data
- Dimensions : Height 8.50 in (216 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 32
- Certification : UL listed file E22182 - CSA C22.2 No 27
