PHG36020G - Schneider Electric 20A 600V 3-Phase H-Frame Bus Plug

Save $21,633.54
SKU: PHG36020G-ReCert
Condition: Re-Certified
Price:
$1,578.46 $23,212.00
Stock:
Low inventory, please call for stock check
This ships in 2-4 business days

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

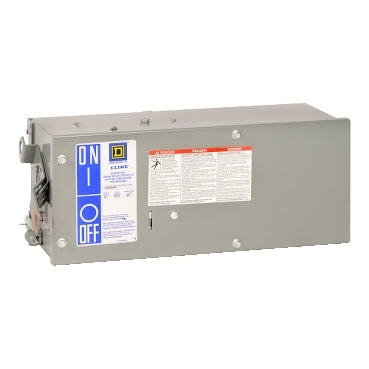

PHG36020G - Square D 20A 600V Breaker Type Bus Plug - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
PHG36020G - Square D 20A 600V Breaker Type Bus Plug - Essential Electric Supply

Description

PHG36020G


PHG36020G is a Schneider Electric I-Line Busway plug-in unit designed for 3-phase power distribution systems. This H-frame circuit breaker bus plug provides reliable switching and protection in industrial and commercial electrical installations requiring modular busway connectivity.Technical Overview

The PHG36020G is a breaker-type bus plug rated for 20 Amps at 600VAC with 3-phase, 4-wire configuration and ground/neutral connections. It features an H-frame design compatible with Schneider Electric I-Line Busway systems and delivers an 18kA interrupting rating at rated voltage, making it suitable for standard industrial applications.

Key Specifications
  • Part Number: PHG36020G
  • Manufacturer: Schneider Electric
  • Current Rating: 20 Amps
  • Voltage Rating: 600VAC
  • Phase Configuration: 3-Phase, 4-Wire
  • Frame Type: H-Frame
  • Interrupting Rating: 18kA
  • Busway System: I-Line Compatible
  • Grounding: Ground and Neutral Connections
  • Product Type: Plug-in Unit / Bus Plug

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: PHG36020G
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Bus Plug
  • Item Subcategory : Breaker Type
  • Family : I-Line
  • Type : PHG
  • Voltage : 600
  • Amperage : 20
  • Phase : 3
  • AIC rating : 35kA@480V
  • Fuse Class : H
  • Wire : 3
  • Compatible Frames : HGP

Product Data

  • Dimensions : Height 8.50 in (216 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
  • Weight : 32
  • Certification : CSA C22.2 No 27 - UL listed file E22182

Accesories

Part Manufacture Sub Category
HGP36020
