Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Breaker Type
Description
PHD36080GN

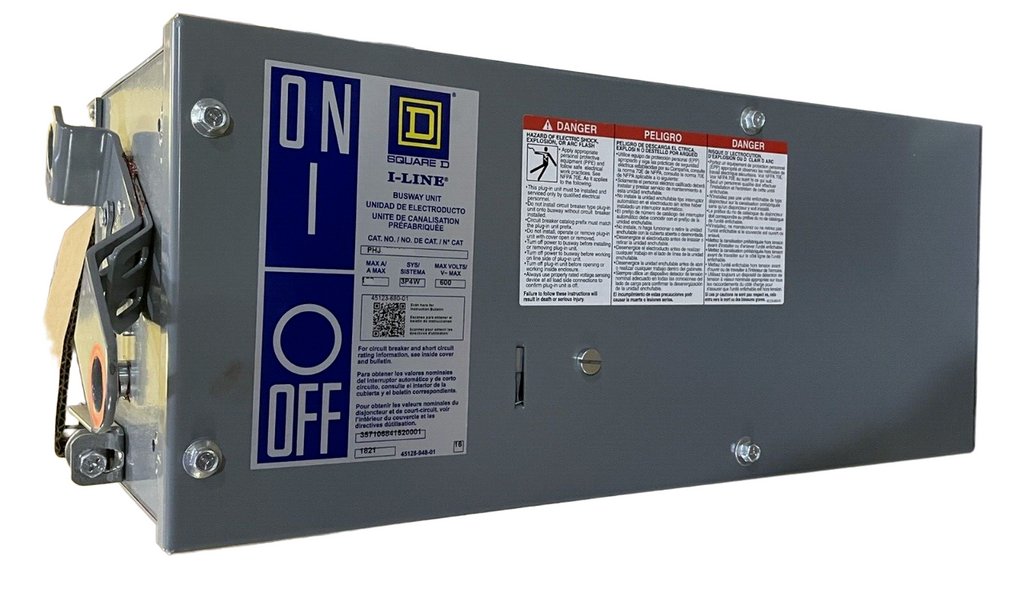

PHD36080GN is a Square D I-Line series breaker type bus plug designed for 3 phase 4 wire busway systems. This unit provides reliable circuit protection and easy plug-in installation for industrial and commercial power distribution applications. The PHD36080GN features an H-frame breaker and is rated for 80 Amps at 600VAC. It is compatible with I-Line busway systems and supports 3 phase 4 wire configurations with ground and neutral. The unit is designed for quick and secure mounting, making it ideal for demanding environments.
- Part Number: PHD36080GN
- Manufacturer: Square D
- Series: I-Line
- Frame: H-Frame
- Amperage: 80A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Plug-in
- Interrupt Rating: 14kA
- Configuration: 3 Phase 4 Wire with Ground and Neutral
- Application: Busway Circuit Protection
- UPC: 99000016580
Specifications
- Part Number: PHD36080GN
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PHD
- Voltage : 600
- Amperage : 80
- Phase : 3
- AIC rating : 18kA@480V
- Wire : 4
- Compatible Frames : HDP
Product Data
- Dimensions : Depth 15.75 in (400 mm)
- Weight : 32
- Certification : UL, CSA
