Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Breaker Type
Description
PHD36020GN

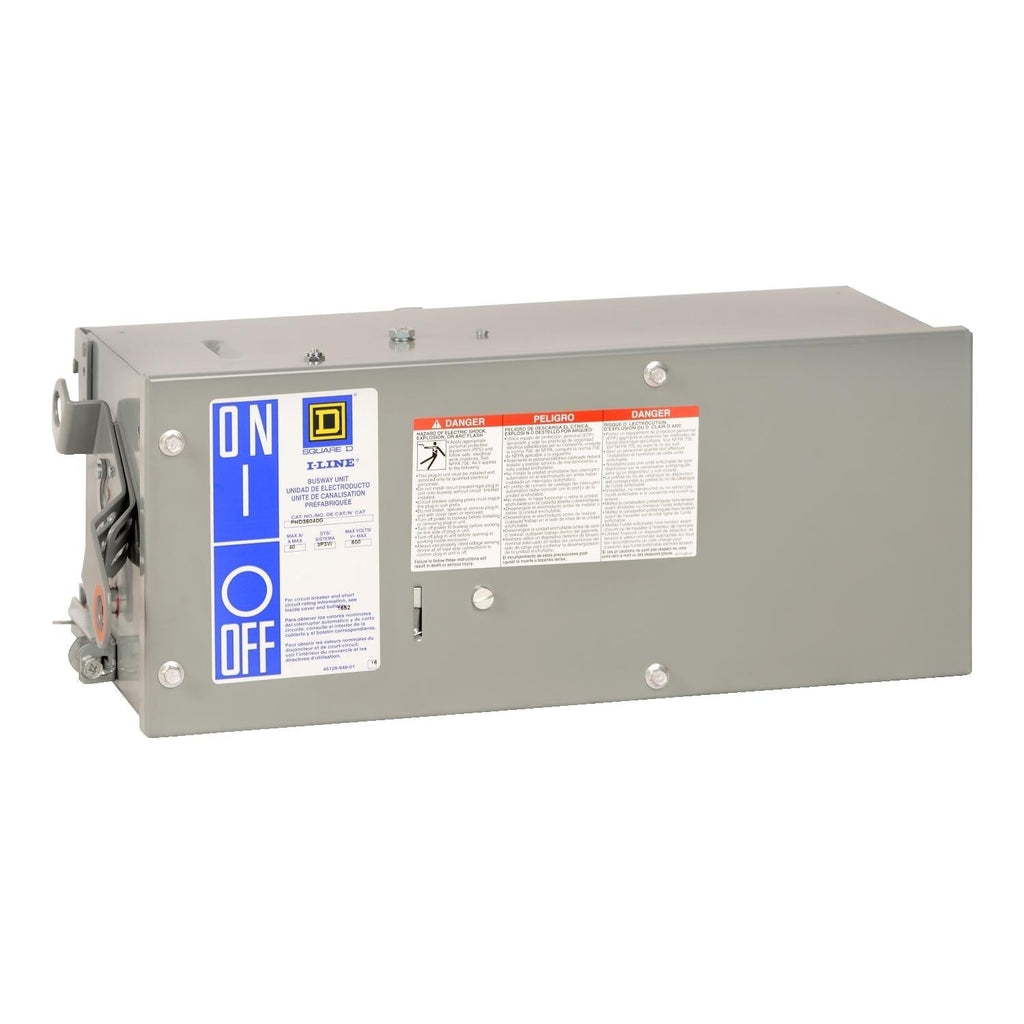

PHD36020GN is a Square D breaker type bus plug designed for 3-phase, 4-wire systems with a 20 ampere rating and 600 volt capacity.This I-Line series bus plug features an H-frame Powerpact circuit breaker with a 14kA interrupting rating at 600VAC. It is suitable for busway applications requiring reliable thermal magnetic protection and is UL and CSA certified.
- Key Specifications
- Manufacturer: Square D
- Part Number: PHD36020GN
- Amperage: 20A
- Voltage: 600V AC
- Phase: 3
- Wires: 4
- Frame Type: H-Frame Powerpact
- Interrupt Rating: 14kA @ 600VAC
- Series: I-Line
- Mounting Type: Breaker Type Bus Plug
- Certifications: UL, CSA
Specifications
- Part Number: PHD36020GN
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PHD
- Voltage : 600
- Amperage : 20
- Phase : 3
- AIC rating : 18kA@480V
- Wire : 4
- Compatible Frames : HDP
Product Data
- UPC : 606487248142
- GTIN : 03606487248149
- Dimensions : Depth 15.75 in (400 mm)
- Weight : 32.01
