Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Breaker Type
Description
PHD36070GN

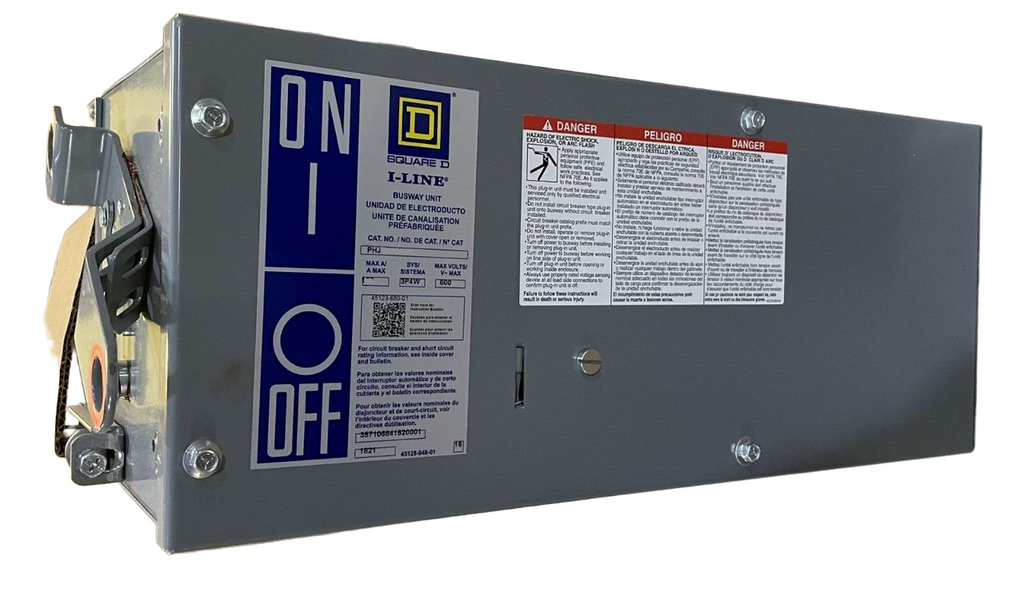

PHD36070GN is a Square D 3 pole bus plug rated for 70 Amps and 600 Volts designed for plug-in connection to I-Line busway systems.
This bus plug features a thermal magnetic trip unit with long-time and instantaneous trip functions, an interrupting rating of 18kA at 480V, and is UL and CSA certified. It supports 3 phase, 4 wire configurations and complies with RoHS standards, making it suitable for reliable power distribution in industrial and commercial applications.
- Key Specifications
- Manufacturer: Square D
- Series: PHD
- Amperage: 70 Amps
- Voltage: 600VAC, 277/480VAC
- Poles: 3
- Phase: 3
- Interrupting Rating: 18kA @ 480V
- Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
- Connection Type: Plug-In
- Frame Type: PHD
- Certifications: UL, CSA
- Compliance: RoHS
- Number of Wires: 4
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: PHD36070GN
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PHD
- Voltage : 600
- Amperage : 70
- Phase : 3
- AIC rating : 18kA@480V
- Wire : 4
- Compatible Frames : HDP
Product Data
- UPC : 060648711586
- GTIN : 03606487115861
- Dimensions : Depth 15.75 in (400 mm)
- Weight : 32.01 lb
- Certification : UL, CSA
