Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Breaker Type
Description
PHD36030GN

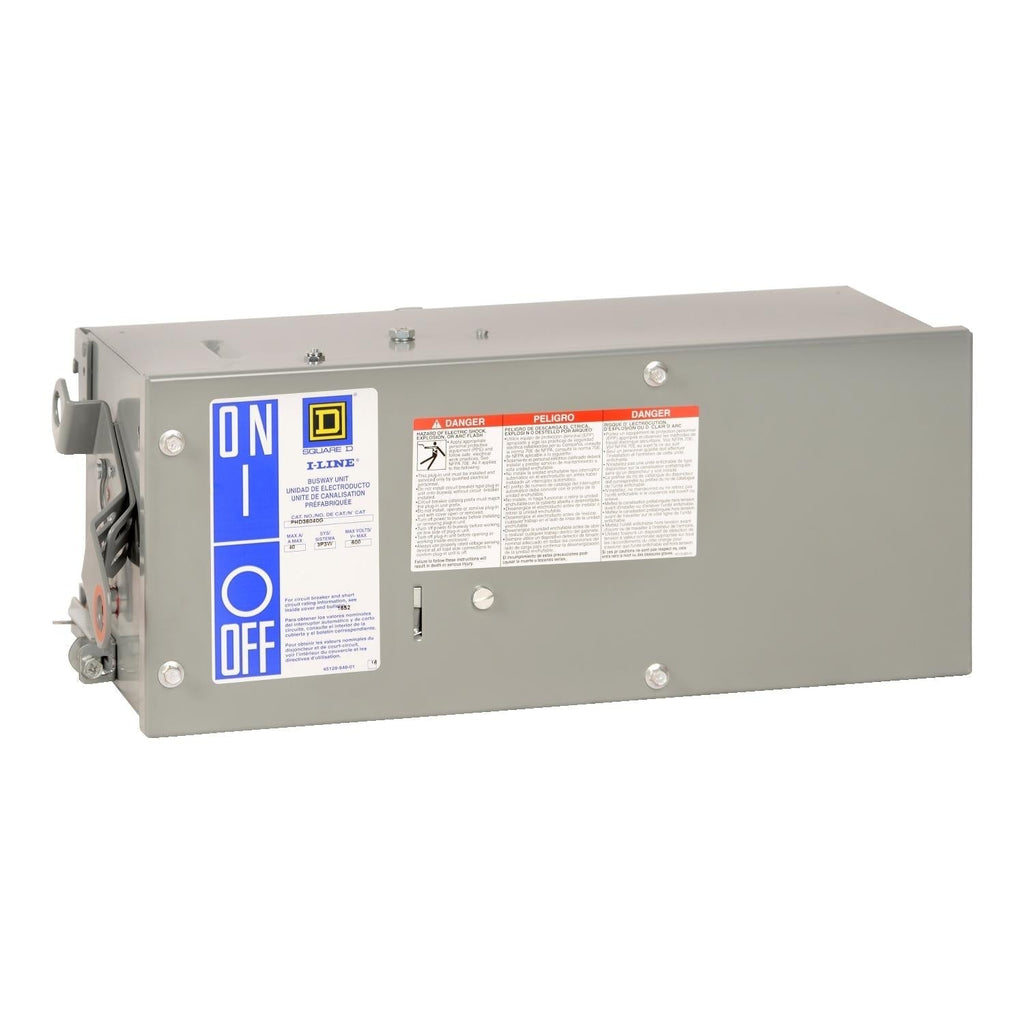

PHD36030GN is a Square D 30 Amp, 600 Volt, 3-pole breaker type bus plug designed for I-Line busway systems.This bus plug is rated for 30 Amps and 600VAC with 3 phases and 4 wires, compatible with H-frame circuit breakers. It features a D interrupting trip rating with an interrupting capacity of 18kA at 480V. The unit includes ground and neutral connections and is UL listed and CSA certified for safety and reliability.
- Key Specifications
- Amperage: 30 Amps
- Voltage: 600VAC, 277/480VAC
- Poles: 3
- Phase: 3
- Mounting Type: Plug-in for I-Line busway
- Interrupt Rating: 18kA @ 480V (D trip unit)
- Series/Frame: PHD, I-Line
- Includes ground and neutral
- Certifications: UL listed, CSA certified
- Part Number: PHD36030GN
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PHD
- Voltage : 600
- Amperage : 30
- Phase : 3
- AIC rating : 18kA@480V
- Wire : 4
- Compatible Frames : HDP
- UPC : 785901000006
- GTIN : 03606487248163
- Dimensions : Depth 15.75 in (400 mm)
- Weight : 32.01
- Certification : UL, CSA
