PGL36120U44A - Square D PowerPact P-Frame 1200A 600V 3P Molded Case Circuit Breaker, Electronic Trip, Feed-Thru, 35kAIC, UL/CSA

PGL36120U44A

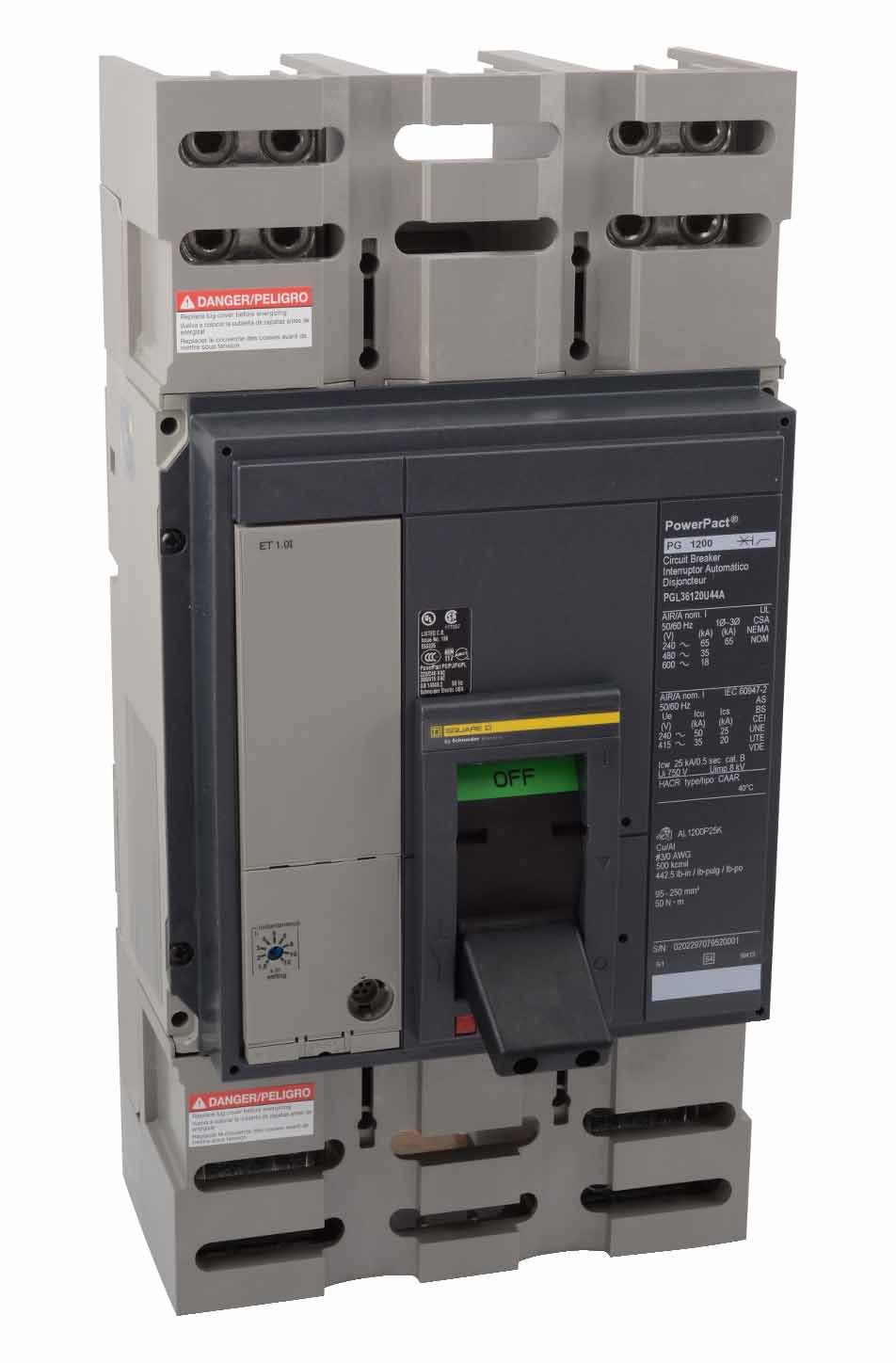

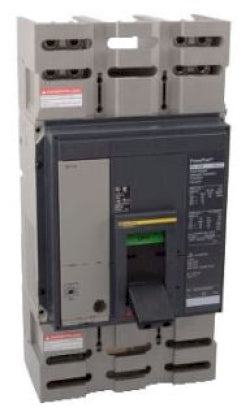

PGL36120U44A is a Square D PowerPact P-Frame molded case circuit breaker designed for robust electrical protection in commercial and industrial applications.

This 3-pole, 3-phase circuit breaker features a 1200A continuous current rating, 600V AC maximum voltage, and an interrupting rating of 35kA at 480V. It utilizes a solid-state electronic trip unit with long-time, short-time, instantaneous, and ground fault protection. The breaker is feed-thru type with line and load side lug terminals, suitable for copper or aluminum conductors. It is UL and CSA listed, CE marked, and meets RoHS, HACR, NEMA, NOM, and IEC standards.

Key Specifications
• Part Number: PGL36120U44A
• Manufacturer: Square D
• Series/Frame: PowerPact P-Frame, Type PGL
• Amperage: 1200A
• Voltage: 600V AC (240/480/600V AC rated)
• Poles: 3
• Mounting Type: Panel or switchboard (molded case)
• Interrupt Rating: 35kA at 480V AC
• Trip Unit: Electronic, basic ET 1.0I or Micrologic (interchangeable)
• Connection: Feed-thru, line and load side lugs
• Wire Range: 4 x AWG 3/0 to 500 kcmil, aluminum or copper
• Certifications: UL, CSA, CE, RoHS, HACR, NEMA, NOM, IEC
• Actuator: Toggle
• Dimensions: 16.16" H x 8.27" W x 8.05" D
• Weight: 32 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Lugs included AL1200P25K

Specifications

• Part Number: PGL36120U44A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PGL
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : Long Time, Short Time, Instantaneous and Ground Fault Trip
• Frame Size : P Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Solid State

Product Data

• UPC : 785901942603
• GTIN : 00785901942603
• Country of Origin : United States
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
